Stainless Steel 348/348H Forged Fittings Manufacturer and Supplier in Chennai, India
Based in Chennai, India, we take pride in being a leading manufacturer and supplier of Stainless Steel 904L Forged Fittings. Our products are crafted to be high-quality and corrosion-resistant, making them perfect for tough and highly corrosive environments. These fittings are well-known for their exceptional resistance to sulfuric acid and chloride-induced corrosion, which is why they’re a go-to choice in industries like chemical processing, marine, offshore oil and gas, and pharmaceuticals. We use advanced forging techniques and maintain strict quality controls to ensure our fittings meet international standards, guaranteeing durability, precision, and leak-proof performance. Our commitment to reliable service, timely delivery, and tailored solutions keeps our clients around the globe satisfied.
Table of Contents
Stainless Steel 904L Threaded Fitting Price List in Chennai, UNS N08904 Stainless Steel Forged Fittings Supplier in India, Stainless Steel 904L High Pressure Forged Fittings Exporter in Chennai, Stainless Steel 904L Hex Plug Supplier in Chennai, SS 904L Threaded Pipe Elbow Exporter in Chennai, SS UNS N08904 Pipe Nipple Size Chart, Stainless Steel 904L Forged Fittings Price in India, SS 904L Screwed Fittings in Chennai, Stainless Steel 1.4539 Forged Fittings Supplier in Chennai, Stainless Steel 904L Hexagonal Plug Stockist in India, Stainless Steel 904L Forged Fittings Exporter in India
Stainless Steel 904L Forged Fittings Specification
Specifications : ASTM A182 & ASME SA182
Standard : ASME 16.11, MSS SP-79, 83, 95, 97, BS 3799
Size : 1/8” NB to 4” NB (Socketweld & Screwed-Threaded)
Class : 2000 LBS, 3000 LBS, 6000 LBS, 9000 LBS
Type : Socketweld Fittings, Screwed-Threaded Fittings
Stainless Steel 904L Forged Fittings are made up of 19–23% chromium, 23–28% nickel, 4–5% molybdenum, and 1–2% copper, providing outstanding corrosion resistance across a variety of chemical environments. These fittings are non-stabilized austenitic stainless steels with a low carbon content (max 0.02%), which helps reduce the risk of intergranular corrosion. They boast impressive mechanical properties, including a tensile strength of 490 MPa, yield strength of 220 MPa, and an elongation of 35%. Common types include forged elbows, tees, unions, couplings, caps, and crosses, all designed for high-pressure and corrosion-sensitive applications.
Stainless Steel 904L Forged Fittings Chemical Compostion
| Grade | C | Mn | Si | P | S | Cr | Mo | Ni | Cu |
| SS 904L | 0.020 max | 2.00 max | 1.00 max | 0.040 max | 0.030 max | 19.00 – 23.00 | 4.00 – 5.00 max | 23.00 – 28.00 | 1.00 – 2.00 |
Stainless Steel 904L Forged Fittings Mechanical Properties
| Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| 7.95 g/cm3 | 1350 °C (2460 °F) | Psi – 71000, MPa – 490 | Psi – 32000, MPa – 220 | 35 % |
SS 904L Socket Weld Fittings Exporter in India, DIN 1.4539 Stainless Steel Union Price List in Chennai, Stainless Steel 904L Forged Fittings Supplier in India, ANSI B16.11 Stainless Steel 904L Forged Fittings Exporter in Chennai, Stainless Steel 904L Forged Elbow Exporter in Chennai, Stainless Steel 904L Forged Tee in India, SS 904L Socket Weld Fittings Size Chart, Stainless Steel 904L Coupling Price in India, UNS N08904 Stainless Steel Forged Threaded 90 deg. Elbow Weight Chart, Stainless Steel 904L Stainless Steel Cross Trader Supplier in Chennai, Stainless Steel 904L Socket weld Fittings Stockist in India
Largest Stainless Steel 904L Forged Fittings Supplier in Chennai, India
Meet Fittings is a leading supplier of Stainless Steel 904L Forged Fittings in Chennai, India. We offer an extensive range of Stainless Steel 904L Forged Fittings, renowned for their excellent corrosion resistance and high strength, which makes them perfect for demanding industrial applications like chemical processing, marine environments, and high-temperature systems. With a commitment to quality and reliable delivery, we ensure our clients receive top-tier products tailored to meet the specific needs of various industries.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
If You Are Looking To Buy High Quality
Stainless Steel 904L Forged Fittings Equivalent Grade
| STANDARD | WERKSTOFF NR. | UNS | JIS | BS | KS | AFNOR | EN |
| SS 904L | 1.4539 | N08904 | SUS 904L | 904S13 | STS 317J5L | Z2 NCDU 25-20 | X1NiCrMoCu25-20-5 |
Pressure Rating Of Stainless Steel 904L Forged fitting
| Pressure-Temperature | |||||
| Temperature | Class | ||||
| 150 | 300 | ||||
| 1/4 – 1 inch. | 1 1/4 – 2 inch. | 2 1/2 – 3 inch. | |||
| (oF) | (oC) | ||||
| -20 to 150 | -29 to 66 | 300 | 2000 | 1500 | 1000 |
| 200 | 93 | 265 | 1785 | 1350 | 910 |
| 250 | 121 | 225 | 1575 | 1200 | 825 |
| 300 | 149 | 185 | 1360 | 1050 | 735 |
| 350 | 177 | 150 | 1150 | 900 | 650 |
| 400 | 204 | – | 935 | 750 | 560 |
| 450 | 232 | – | 725 | 600 | 475 |
| 500 | 260 | – | 510 | 450 | 385 |
| 550 | 288 | – | 300 | 300 | 300 |
Why Choose Stainless Steel 904L Forged Fittings from Meet Fittings?
Choose Stainless Steel 904L Forged Fittings from Meet Fittings for superior quality, exceptional corrosion resistance, and reliable performance in extreme conditions. We offer customized solutions backed by expert support and industry experience.
Stainless Steel UNS N08904 Full Coupling Exporter in India, SS 904L Forged Socket weld Fittings Sizes in mm, Stainless Steel 904L Forged Fittings Manufacturer in Chennai, Stainless Steel DIN 1.4539 Threaded Fittings Supplier in Chennai, ASME SA182 Stainless Steel 904L Forged Fittings Price List in Chennai, SUS 904L Forged Union Distributor in Chennai, SS UNS N08904 Forged Fittings Supplier in Chennai, Stainless Steel 904L Forged Cap Distributor in India
Customer Support
Largest Inventory
On Time Deliveries
ISO Certified
Stainless steel 904L forged fittings offer many advantages, including exceptional corrosion resistance, especially in high acid and chloride environments, especially in high acid and chloride environments their high copper content provides resistance to pitting , fracture loss, stress loss and cracking are enhanced. The excellent weldability and formability of 904L makes it ideal for complex designs and complex applications. The fitting also provides excellent strength, stability and rigidity, ensuring a long service life even in harsh conditions. In addition, the oxidation resistance and high thermal stability of 904L make it suitable for applications such as pharmaceutical, pharmaceutical and marine engineering.

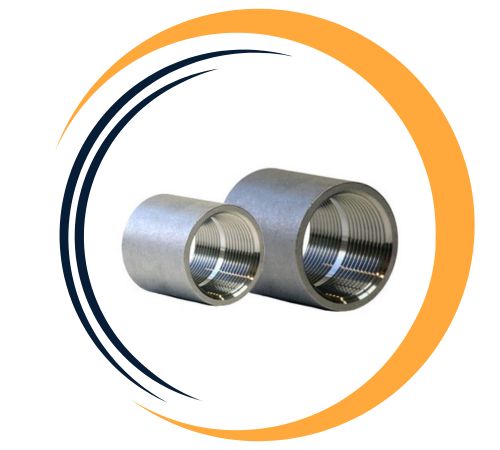

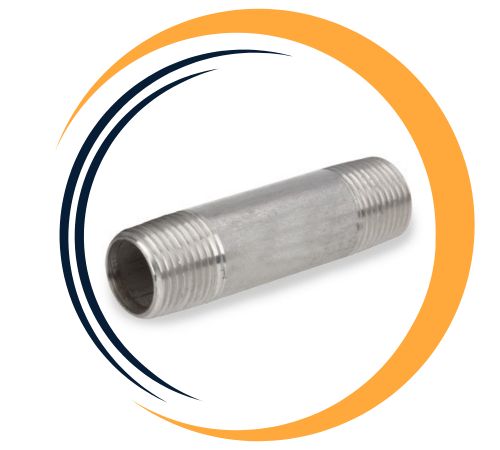

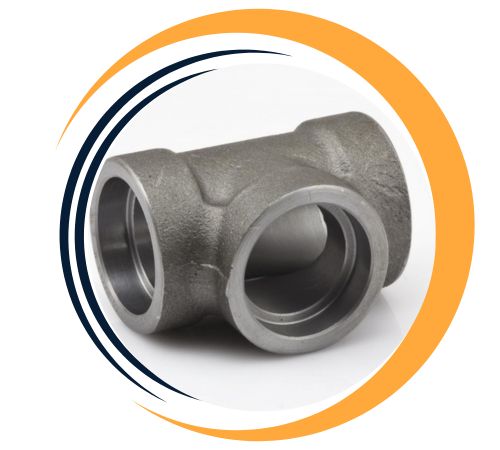

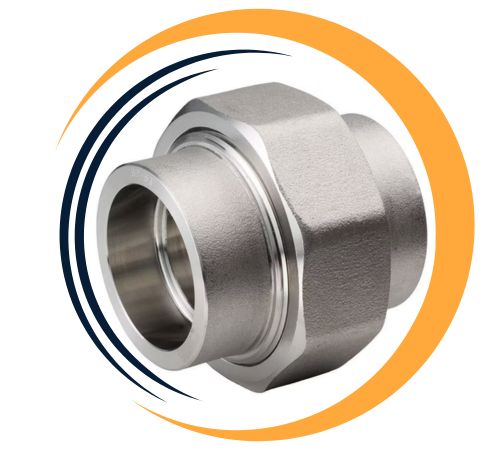

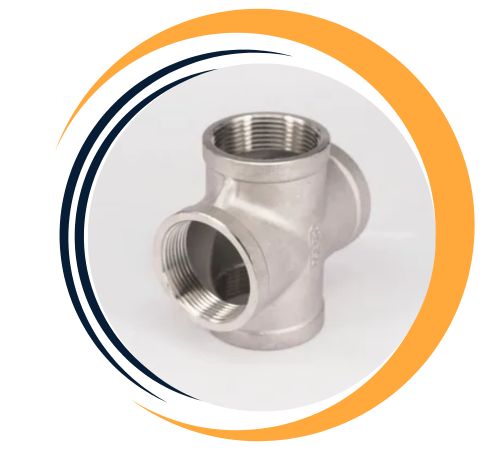

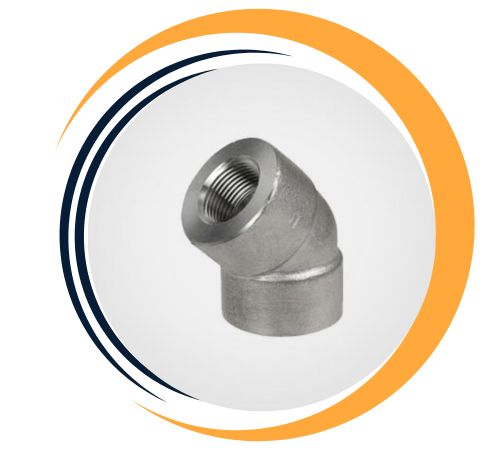

Types of Stainless Steel 904L Forged Fittings
Are Custom Sizes Available for Stainless Steel 904L Forged Fittings?
Yes, custom sizes for Stainless Steel 904L Forged Fittings are available at Meet Fittings. We offer tailored solutions to meet your specific requirements, ensuring optimal performance for your projects. For more information, please contact us at sales@meetfitings.co.in
Dimension of SS 904L Forged Fittings
| ASME b16.9 Fittings Normal Pipe Size | ANSI b16 9 Pipe Fitting O D Y | Wall Thickness T (Pipe Elbow Sch.) | LR 45 Deg Elbows Centre to Face B | SR 45 Deg Elbows Weight | LR 90 Deg Elbows Centre to Face A | LR 90 Deg Elbows Weight In Below | SR 90 Deg Elbows Centre to Face A | SR 90 Deg Elbows Weight In Below | ||
| mm | inch | mm | mm | Schedule | mm | kg | mm | kg | mm | kg |
| 15 | 1/2” | 21.3 | 2.78 | STD | 15.9 | 0.04 | 38.1 | 0.08 | – | – |
| 3.73 | X.S | 15.9 | 0.05 | 38.1 | 0.10 | – | – | |||
| 20 | 3/4” | 26.7 | 2.87 | STD | 11.1 | 0.04 | 28.6 | 0.08 | – | – |
| 3.91 | X.S | 11.1 | 0.05 | 28.6 | 0.11 | – | – | |||
| 25 | 1” | 33.4 | 3.38 | STD | 22.2 | 0.09 | 38.1 | 0.15 | 25.4 | 0.11 |
| 4.55 | X.S | 22.2 | 0.11 | 38.1 | 0.19 | 25.4 | 0.14 | |||
| 32 | 11/4” | 42.2 | 3.56 | STD | 25.4 | 0.14 | 47.6 | 0.28 | 31.75 | 0.18 |
| 4.85 | X.S | 25.4 | 0.2 | 47.6 | 0.39 | 31.75 | 0.24 | |||
| 40 | 11/2” | 48.3 | 3.68 | STD | 28.6 | 0.2 | 57.1 | 0.4 | 38.1 | 0.26 |
| 5.08 | X.S | 28.6 | 0.25 | 57.1 | 0.5 | 38.1 | 0.35 | |||
| 50 | 2” | 60.3 | 3.91 | STD | 34.9 | 0.36 | 76.2 | 0.72 | 50.8 | 0.5 |
| 5.54 | X.S | 34.9 | 0.5 | 76.2 | 1.0 | 50.8 | 0.68 | |||
| 65 | 21/2” | 73.0 | 5.16 | STD | 44.4 | 0.73 | 95.2 | 1.46 | 63.5 | 0.95 |
| 7.01 | X.S | 44.4 | 0.91 | 95.2 | 1.82 | 63.5 | 1.27 | |||
| 80 | 3” | 88.9 | 5.49 | STD | 50.8 | 1.1 | 114.3 | 2.18 | 76.2 | 1.45 |
| 7.62 | X.S | 50.8 | 1.45 | 114.3 | 2.86 | 76.2 | 1.95 | |||
| 100 | 4” | 114.3 | 6.02 | STD | 63.5 | 2.1 | 152.4 | 4.2 | 101.6 | 2.8 |
| 8.56 | X.S | 63.5 | 2.9 | 152.4 | 5.7 | 101.6 | 3.9 | |||
| 125 | 5” | 141.3 | 6.65 | STD | 79.4 | 3.4 | 190.0 | 6.8 | 127.0 | 4.8 |
| 9.5 | X.S | 79.4 | 5.0 | 190.0 | 10.0 | 127.0 | 6.5 | |||
| 150 | 6” | 168.3 | 7.11 | STD | 95.2 | 5.1 | 229.0 | 10.1 | 152.4 | 6.8 |
| 10.97 | X.S | 95.2 | 7.7 | 229.0 | 15.3 | 152.4 | 10.2 | |||
| 200 | 8” | 219.1 | 8.18 | STD | 127.0 | 10.2 | 305.0 | 20.4 | 203.0 | 13.6 |
| 12.7 | X.S | 127.0 | 15.5 | 305.0 | 30.9 | 203.0 | 20.9 | |||
| 250 | 10” | 273.9 | 9.27 | STD | 159.0 | 18.1 | 381.0 | 36.1 | 254.0 | 24.1 |
| 12.7 | X.S | 159.0 | 24.4 | 381.0 | 48.8 | 254.0 | 32.5 | |||
| 300 | 12” | 323.9 | 9.52 | STD | 190.0 | 26.6 | 457.0 | 53.1 | 305.0 | 35.4 |
| 12.7 | X.S | 190.0 | 35.0 | 457.0 | 70.0 | 305.0 | 46.7 | |||
| 350 | 14” | 355.6 | 9.52 | STD | 222.0 | 34.1 | 533.0 | 68.1 | 356.0 | 45.4 |
| 12.7 | X.S | 222.0 | 45.0 | 533.0 | 90.0 | 356.0 | 60.0 | |||
| 400 | 16” | 406.4 | 9.52 | STD | 254.0 | 45.0 | 610.0 | 89.3 | 406.0 | 59.5 |
| 12.7 | X.S | 254.0 | 59.0 | 610.0 | 118.0 | 406.0 | 78.7 | |||
| 450 | 18” | 457.0 | 9.52 | STD | 286.0 | 56.5 | 686.0 | 113.0 | 457.0 | 75.6 |
| 12.7 | X.S | 286.0 | 75.0 | 686.0 | 150.0 | 457.0 | 100.0 | |||
| 500 | 20” | 508.0 | 9.52 | STD | 318.0 | 85.0 | 762.0 | 140.0 | 508.0 | 93.5 |
| 12.7 | X.S | 318.0 | 112.5 | 762.0 | 186.0 | 508.0 | 124.0 | |||
| 600 | 24” | 610.00 | 9.52 | STD | 381.0 | 101.5 | 914.0 | 203.0 | 610.0 | 135.0 |
| 12.7 | X.S | 381.0 | 134.5 | 914.0 | 269.0 | 610.0 | 179.0 | |||
Size of Stainless Steel 904L Forged Fittings
| NPS (inch) | Pipe Schedule. | OD (inch) | Wall Thick. (in) | Temperature | ||||
| 100 Fitting | 200 Fitting | 300 Fitting | 400 Fitting | 500 Fitting | ||||
| Allowable Stress | ||||||||
| 16700 | 16700 | 16700 | 15500 | 14400 | ||||
| 1″ | 40 | 1.315 | 0.133 | 2205 | 2205 | 2205 | 2047 | 1902 |
| 80 | 1.315 | 0.179 | 3061 | 3061 | 3061 | 2841 | 2640 | |
| 160 | 1.315 | 0.250 | 4493 | 4493 | 4493 | 4170 | 3874 | |
| 1 1/2″ | 40 | 1.900 | 0.145 | 1629 | 1629 | 1629 | 1512 | 1404 |
| 80 | 1.900 | 0.200 | 2303 | 2303 | 2303 | 2138 | 1986 | |
| 160 | 1.900 | 0.281 | 3362 | 3362 | 3362 | 3120 | 2899 | |
| 2″ | 40 | 2.375 | 0.154 | 1371 | 1371 | 1371 | 1272 | 1182 |
| 80 | 2.375 | 0.218 | 1985 | 1985 | 1985 | 1843 | 1712 | |
| 160 | 2.375 | 0.344 | 3283 | 3283 | 3283 | 3047 | 2831 | |
| 3″ | 40 | 3.500 | 0.216 | 1301 | 1301 | 1301 | 1208 | 1122 |
| 80 | 3.500 | 0.300 | 1844 | 1844 | 1844 | 1712 | 1590 | |
| 160 | 3.500 | 0.438 | 2787 | 2787 | 2787 | 2587 | 2403 | |
| 4″ | 40 | 4.500 | 0.237 | 1102 | 1102 | 1102 | 1023 | 950 |
| 80 | 4.500 | 0.337 | 1596 | 1596 | 1596 | 1482 | 1377 | |
| 160 | 4.500 | 0.531 | 2611 | 2611 | 2611 | 2424 | 2552 | |
| 5″ | 40 | 5.563 | 0.258 | 965 | 965 | 965 | 896 | 832 |
| 80 | 5.563 | 0.375 | 1428 | 1428 | 1428 | 1325 | 1231 | |
| 160 | 5.563 | 0.625 | 2474 | 2474 | 2474 | 2296 | 2133 | |
| 6″ | 40 | 6.625 | 0.280 | 877 | 877 | 877 | 814 | 756 |
| 80 | 6.625 | 0.432 | 1379 | 1379 | 1379 | 1280 | 1189 | |
| 160 | 6.625 | 0.719 | 2382 | 2382 | 2382 | 2211 | 2054 | |
| 8″ | 40 | 8.625 | 0.322 | 771 | 771 | 771 | 716 | 665 |
| 80 | 8.625 | 0.500 | 1218 | 1218 | 1218 | 1131 | 1050 | |
| 160 | 8.625 | 0.906 | 2298 | 2298 | 2298 | 2133 | 1982 | |
| 10″ | 40 | 10.750 | 0.365 | 699 | 699 | 699 | 649 | 603 |
| 80 | 10.750 | 0.594 | 1159 | 1159 | 1159 | 1075 | 999 | |
| 160 | 10.750 | 1.125 | 2289 | 2289 | 2289 | 2124 | 1974 | |
ASTM A182 SS 904L End Cap Supplier in Chennai, Stainless Steel 904L Forged Pipe Fittings Weight Chart, Stainless Steel 904L Welding Boss Exporter in India, Stainless Steel 904L High Pressure Forged Fitting Manufacturer in Chennai, WERKSTOFF NR. 1.4539 Threaded Cross Price List in Chennai, Stainless Steel 904L Threaded Fittings Sizes in mm, Stainless Steel 904L Forged Fittings Distributor in Chennai, Stainless Steel 904L 180 Deg. Street Elbow in India, Stainless Steel 904L Forged Tee Distributor in India.
Application Industry of Stainless Steel 904L Forged Fittings
Stainless Steel 904L Forged Fittings are perfect for harsh, corrosive environments where standard stainless steels just won’t cut it. You’ll often find these fittings in sulfuric acid handling systems, chemical reactors, heat exchangers, seawater cooling systems, pulp and paper processing, and pharmaceutical production. Their ability to resist strong reducing acids and chlorides makes them ideal for marine and offshore applications. The forged construction not only boosts mechanical strength but also ensures tight, durable connections in high-pressure systems. With SS 904L forged fittings, you can expect a long service life, excellent weldability, and the peace of mind that comes with knowing you have maximum corrosion protection for critical systems.
