Long and Short Stub Bend Manufacturer and Supplier in Chennai, India
Located in Chennai, India, we take pride in being a well-respected manufacturer and supplier of **Long and Short Stub Bends**. Our precision-engineered fittings are designed to help change the direction of pipes smoothly, ensuring an efficient flow path. These bends are essential in **piping systems for oil & gas, petrochemical, chemical processing, water treatment, and power generation**, especially where space is tight and flow efficiency is paramount. We manufacture our stub bends to meet international standards like **ASME B16.9**, and they come in a variety of materials including **carbon steel, stainless steel, alloy steel, and duplex materials**.
Table of Contents
Stainless Steel Long Stub Bend Price List in Chennai, Copper Nickel Long Stub Bend Distributor in Chennai, Super Duplex Steel Short Stub Bend Short Bend Supplier in Chennai, Butt Weld Long Stub Bend Sizes in mm, Nickel Alloy Long Stub Bend Manufacturer in Chennai, Carbon Steel Long Stub Bend Thickness, Super Duplex Steel Short Stub Bend Supplier in Chennai, SMO 254 Welded Short Stub Bend Exporter in India, Hastelloy Short Stub Bend Supplier in India
Specifications of Long Stub Bend
Dimensions : ASME/ANSI B16.9, ASME B16.28, MSS-SP-43
Size : 1/2″NB TO 36 “NB IN
Type : Seamless / ERW / Welded / Fabricated
Thickness : Schedule 5S, 10S, 20S, S10, S20, S30, STD, 40S, S40, S60, XS, 80S, S80, S100, S120, S140, S160, XXS and etc.
Form : Long Stub Ends, Pipe Stub Ends, Butt weld Long Stub Ends.
Specifications of Short Stub Bend
| Short pattern stub end Pipe Fittings size | Seamless Butt Weld Fittings: 1/2″ – 10″ Welded Butt Weld Fittings: 1/2″ – 48″ |
|---|---|
| Specifications | ASME B16.9 Short stub end |
| Short type stub end Dimensions | ASME/ANSI B16.9, ASME B16.28, MSS-SP-43, BS4504, BS4504, BS1560, BS10 |
| lap joint stub end Short pattern Thickness | SCH10, SCH20, SCH30, STD SCH40, SCH60, XS, SCH 80, SCH 100, SCH 120, SCH 140, SCH 160, XXS available with NACE MR 01-75 |
| Short stub ends Types | Seamless / ERW / Welded / Fabricated Pipe Fittings |
| Short spigot stub end Type | DN15-DN1200 |
| Bending Radius | R=1D, 2D, 3D, 5D, 6D, 8D, 10D or Custom Pipe Fittings |
| Application |
|
| Short type stub end Fittings | Angle : 22.5 deg, 30deg, 45 deg, 90 deg, 180 deg, 1.0D, 1.5D, 2.0D, 2.5D, 3D, 4D, 5D, 6D, 7D-40D. Standard: ASME B16.9, ASME B16.28, ASME B16.25, MSS SP-75 DIN2605 JISB2311 JISB2312 JISB2313, BS, GB, ISO |
| Size Range | ½” NB to 24″ NB in Sch 10s, 40s, 80s, 160s, XXS. (DN6~DN100) |
| Manufacturing process | Push, Press, Forge, Cast, etc. |
**Long Stub Bends** offer a gentle change in direction over a longer radius, which helps to reduce pressure drop, turbulence, and stress within the pipeline. In contrast, **Short Stub Bends** are ideal for situations where space is at a premium and a sharper turn is necessary. While they allow for a more compact installation, they might cause a bit more pressure loss compared to their longer counterparts.
Short Stub End Dimension Chart
| Product (Type “C”) | Length (J) | NPS | Sch 5S Approx. Weight | O.D. | Sch 5S, Wall Thick. (T) | Sch 5S, Inside Dia. (I.D.) |
|---|---|---|---|---|---|---|
| 1 1/2″ | 2 | 1.5 | 0.29 | 1.9 | 0.065 | 1.77 |
| 1 1/4″ | 2 | 1.25 | 0.21 | 1.66 | 0.065 | 1.53 |
| 1″ | 2 | 1 | 0.19 | 1.315 | 0.065 | 1.185 |
| 1/2″ | 2 | 0.5 | 0.13 | 0.84 | 0.065 | 0.71 |
| 10″ | 5 | 10 | 7.48 | 10.75 | 0.134 | 10.482 |
| 12″ | 6 | 12 | 15 | 12.75 | 0.156 | 12.438 |
| 14″ | 6 | 14 | 19.2 | 14 | 0.156 | 13.688 |
| 16″ | 6 | 16 | 23.9 | 16 | 0.165 | 15.67 |
| 18″ | 6 | 18 | 28.5 | 18 | 0.165 | 17.67 |
| 2 1/2″ | 2.5 | 2.5 | 0.75 | 2.875 | 0.083 | 2.709 |
| 2″ | 2.5 | 2 | 0.44 | 2.375 | 0.065 | 2.245 |
| 20″ | 6 | 20 | 36.3 | 20 | 0.188 | 19.624 |
| 24″ | 6 | 24 | 56 | 24 | 0.218 | 23.564 |
| 3″ | 2.5 | 3 | 0.94 | 3.5 | 0.083 | 3.334 |
| 3/4″ | 2 | 0.75 | 0.14 | 1.05 | 0.065 | 0.92 |
| 4″ | 3 | 4 | 1.38 | 4.5 | 0.083 | 4.334 |
| 5″ | 3 | 5 | 2.06 | 5.563 | 0.109 | 5.345 |
| 6″ | 3.5 | 6 | 2.75 | 6.625 | 0.109 | 6.407 |
| 8″ | 4 | 8 | 3.88 | 8.625 | 0.109 | 8.407 |
Long Neck Stub End Dimensional Table
| Product (Type “A“) | NPS | Length (F), Short | Diameter(G) | I.D. | Wall Thick. (T) | O.D. | Thickness (t) | XX Strong Wall Approx. Weights | XX Strong Wall, Inside Dia (I.D.) |
|---|---|---|---|---|---|---|---|---|---|
| 1 1/2″ | 1.5 | 2 | 2.875 | 1.338 | 0.281 | 1.9 | 0.281 | 2.98 | 1.1 |
| 1 1/2″ | 1.5 | 4 | 2.875 | 0.15 | 1.49 | 1.9 | 0.15 | 1.5 | 0.2 |
| 1 1/4″ | 1.25 | 2 | 2.5 | 1.16 | 0.25 | 1.66 | 0.25 | 2.52 | 0.896 |
| 1 1/4″ | 1.25 | 4 | 2.5 | 0.14 | 1.26 | 1.66 | 0.14 | 1.278 | 0.191 |
| 1″ | 1 | 2 | 2 | 0.815 | 0.25 | 1.315 | 0.25 | 1.76 | 0.599 |
| 1″ | 1 | 4 | 2 | 0.133 | 0.88 | 1.315 | 0.133 | 0.957 | 0.179 |
| 1/2″ | 0.5 | 2 | 1.375 | 0.464 | 0.188 | 0.84 | 0.187 | 0.68 | 0.252 |
| 1/2″ | 0.5 | 3 | 1.375 | 0.109 | 0.34 | 0.84 | 0.109 | 0.546 | 0.147 |
| 10″ | 10 | 5 | 12.75 | 8.5 | 1.125 | 10.75 | 1.125 | – | – |
| 10″ | 10 | 10 | 12.75 | 0.365 | 54 | 10.75 | 0.365 | 9.75 | 0.5 |
| 12″ | 12 | 6 | 15 | 10.126 | 1.312 | 12.75 | 1.312 | – | – |
| 12″ | 12 | 10 | 15 | 0.375 | 64.5 | 12.75 | 0.375 | 11.75 | 0.5 |
| 14″ | 14 | 12 | 16.25 | 0.375 | 84 | 14 | 0.375 | 13 | 0.5 |
| 16″ | 16 | 12 | 18.5 | 0.375 | 98 | 16 | 0.375 | 15 | 0.5 |
| 18″ | 18 | 12 | 21 | 0.375 | 136 | 18 | 0.375 | 17 | 0.5 |
| 2 1/2″ | 2.5 | 2.5 | 4.125 | 2.125 | 0.375 | 2.875 | 0.375 | 8.8 | 1.771 |
| 2 1/2″ | 2.5 | 6 | 4.125 | 0.203 | 4.4 | 2.875 | 0.203 | 2.323 | 0.276 |
| 2″ | 2 | 2.5 | 3.625 | 1.689 | 0.343 | 2.375 | 0.343 | 6.1 | 1.503 |
| 2″ | 2 | 6 | 3.625 | 0.154 | 3.05 | 2.375 | 0.154 | 1.939 | 0.218 |
| 20″ | 20 | 12 | 23 | 0.375 | 157 | 20 | 0.375 | 19 | 0.5 |
| 3 1/2″ | 3.5 | 3 | 5.5 | – | – | 4 | – | 15.5 | 2.728 |
| 3 1/2″ | 3.5 | 6 | 5.5 | 0.226 | 7.75 | 4 | 0.226 | 3.364 | 0.318 |
| 3″ | 3 | 2.5 | 5 | 2.624 | 0.438 | 3.5 | 0.438 | 9.8 | 2.3 |
| 3″ | 3 | 6 | 5 | 0.216 | 6.5 | 3.5 | 0.216 | 2.9 | 0.3 |
| 3/4″ | 0.75 | 2 | 1.688 | 0.612 | 0.219 | 1.05 | 0.218 | 0.94 | 0.434 |
| 3/4″ | 0.75 | 3 | 1.688 | 0.113 | 0.47 | 1.05 | 0.113 | 0.742 | 0.154 |
| 4″ | 4 | 3 | 6.188 | 3.438 | 0.531 | 4.5 | 0.531 | 19.3 | 3.152 |
| 4″ | 4 | 6 | 6.188 | 0.237 | 9.65 | 4.5 | 0.237 | 3.826 | 0.337 |
| 5″ | 5 | 3 | 7.313 | 4.313 | 0.625 | 5.563 | 0.625 | 32.66 | 4.063 |
| 5″ | 5 | 8 | 7.313 | 0.258 | 16.33 | 5.563 | 0.258 | 4.813 | 0.375 |
| 6″ | 6 | 3.5 | 8.5 | 5.187 | 0.719 | 6.625 | 0.718 | 45.26 | 4.897 |
| 6″ | 6 | 8 | 8.5 | 0.28 | 22.63 | 6.625 | 0.28 | 5.761 | 0.432 |
| 8″ | 8 | 4 | 10.625 | 6.813 | 0.906 | 8.625 | 0.906 | 59.71 | 6.875 |
| 8″ | 8 | 8 | 10.625 | 0.322 | 34.12 | 8.625 | 0.322 | 7.625 | 0.5 |
Nickel Alloy Short Stub Bend in India, Duplex Steel Buttweld Long Stub Bend Distributor in India, Alloy Steel Long Stub Bend Supplier in Chennai, Copper Nickel Alloy Short Stub Bend Weight Chart, Incoloy Long Stub Bend Exporter in India, SS Buttweld Long Stub Bend Manufacturer in Chennai, Duplex Steel Long Stub Bend Price List in Chennai, Hastelloy Long Stub Bend Sizes in mm, Monel Long Stub Bend Distributor in Chennai
Largest Long and Short Stub Bend Supplier in Chennai, India
Meet Fittings one of the largest suppliers of Long and Short Stub Bend in Chennai, India. We specialize in providing a wide range of high-quality, durable fittings for various industrial applications. Our inventory includes elbows, tees, reducers, couplings, and other essential fittings designed to offer exceptional corrosion resistance and strength. Long and Short Stub Bend is known for its cost-effectiveness and excellent mechanical properties, making it ideal for industries such as construction, chemical processing, and food processing. With a commitment to customer satisfaction, timely delivery, and competitive pricing, we are the trusted choice for Long and Short Stub Bend in the India.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
If You Are Looking To Buy High Quality
Why Choose Long and Short Stub Bend From Meet Fittings?
Long and Short Stub Bend from Meet Fittings offer exceptional corrosion resistance, especially in seawater and harsh environments. They are known for their high strength, durability, and resistance to pitting and crevice corrosion, ensuring long-lasting performance. We provide precise manufacturing, quality control, and reliable service for diverse industrial applications.
Copper Nickel Short Stub Bend Price List in Chennai, Copper Nickel Log Stub End Supplier in India, Duplex Steel Short Stub Bend Dealer in Chennai, Alloy Steel Short Stub Bend Supplier in Chennai, Carbon Steel Short Stub Bend Fittings Exporter in Chennai, Alloy Steel Straight Short Stub Bend Size Chart, Monel Buttweld Long Stub Bend Price in India, Super Duplex Steel Long Stub Bend Thickness, Inconel Buttweld Long Stub Bend Supplier in Chennai, Carbon Steel Long Stub Bend Stockist in India, Titanium Short Stub Bend Exporter in India
Customer Support
Largest Inventory
On Time Deliveries
ISO Certified
Long Stub and Short Stub Bends offer several advantages in piping systems. They provide superior strength and durability, making them ideal for high-pressure and high-temperature applications. These bends are designed to minimize turbulence and flow resistance, ensuring efficient fluid or gas movement. Their corrosion resistance, especially when made from materials like stainless steel, ensures long-lasting performance in harsh environments. Additionally, they are easy to install and maintain, with reduced risk of leakage. Versatile and reliable, Long and Short Stub Bends are widely used in industries like oil and gas, chemical processing, and power generation.

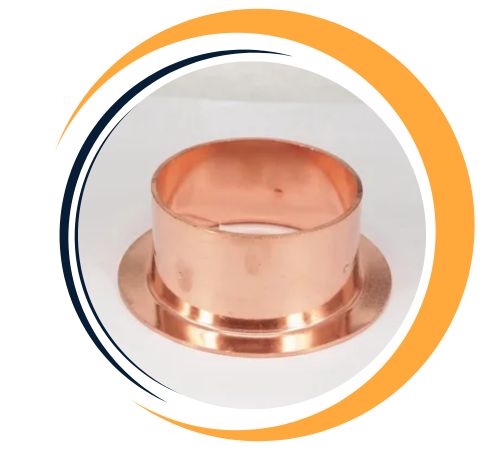

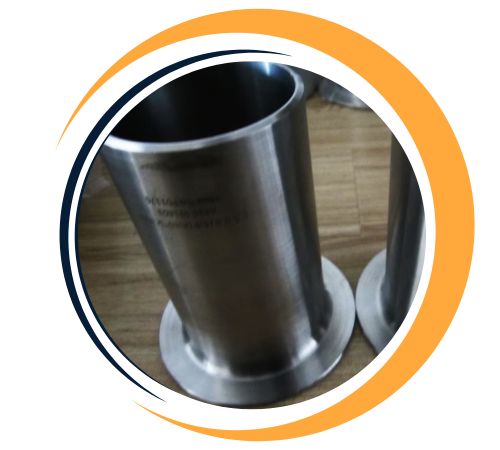

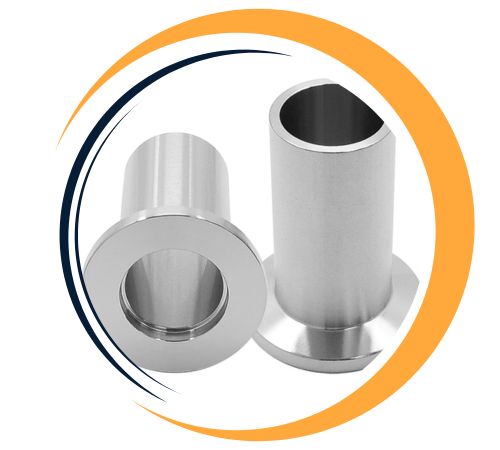

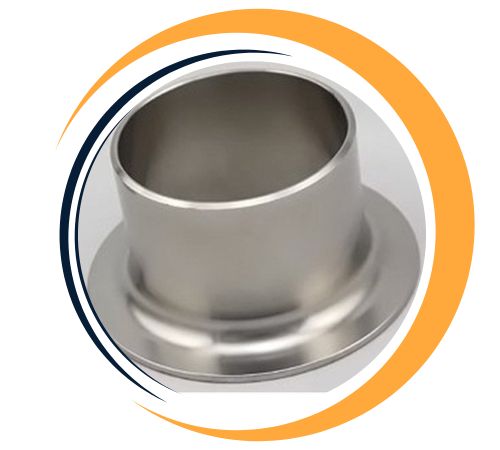

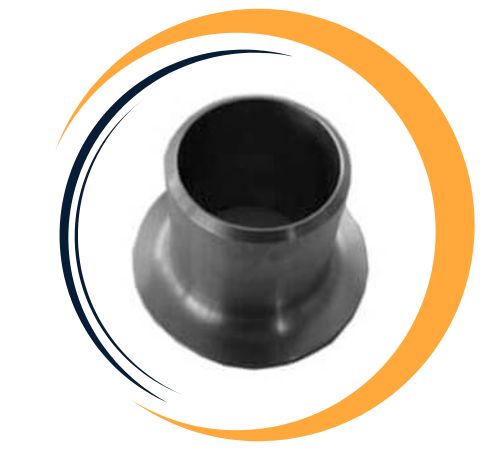

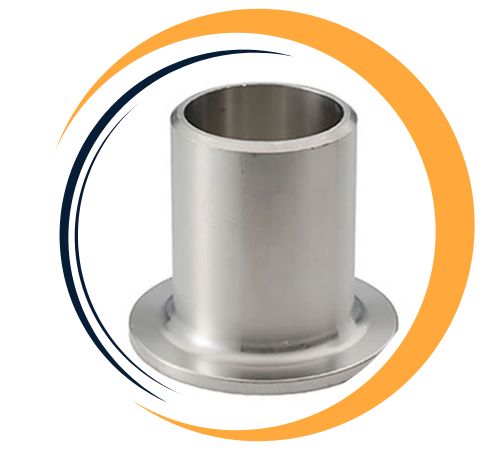

Types of Long and Short Stub Bend
Are Custom Sizes Available For Long and Short Stub Bend?
Yes, custom sizes are available for Long and Short Stub Bend to meet specific requirements. We offer tailored solutions to ensure precise fit and performance for various applications. For more information, please contact us at sales@meetfitings.co.in.
Monel Short Stub Bend Size Chart, Stainless Steel Long Stub Bend Price in India, Duplex Steel Long Stub Bend Weight Chart, Alloy Steel Long Stub Bend Supplier in Chennai, Incoloy Short Stub Bend Stockist in India, Inconel Long Stub Bend Supplier in India, Copper Nickel Short Stub Bend Price List in Chennai, Alloy Steel Short Stub Bend Exporter in Chennai, Carbon Steel Long Stub Bend Exporter in India, Titanium Long Stub Bend Exporter in Chennai, Monel Buttweld Short Stub Bend in India
Appllication Industry of Long and Short Stub Bend
Both types are available in standard bend angles (such as 45°, 90°, and 180°) or can be customized to your specifications, with wall thicknesses ranging from SCH 10 to SCH XXS and diameters from ½” to 48”. You can choose between seamless or welded options.**Applications** for these bends include **changing flow direction in piping layouts, pipeline skids, offshore modules, compressor stations, and pressure vessels**. Our Long and Short Stub Bends are designed to maintain flow integrity, minimize wear on piping systems, and enhance fluid dynamics—ensuring efficiency, durability, and safety in both low- and high-pressure environments.
