Monel K500 Pipe Fittings Manufacturer and Supplier in Chennai, India
Located in Chennai, India, Meet Fittings is a reputable manufacturer and provider of *Monel K500 Pipe Fittings*, delivering high-performance, corrosion-resistant solutions for rigorous industrial applications. Fabricated from a precipitation-hardened nickel-copper alloy, Monel K500 pipe fittings incorporate the superior corrosion resistance of Monel 400 along with substantially higher strength and hardness owing to additions of titanium and aluminum. Meet Fittings offers a full spectrum of pipe fittings consisting of elbows, tees, reducers, caps, and crosses, all of which are based on international quality standards. They find extensive use in the marine, offshore, chemical, and oil & gas sectors.
Table of Contents
Monel UNS N05500 Pipe Fittings Supplier in Chennai, Monel K500 Pipe Fittings Weight Chart, UNS N05500 Monel K500 Pipe Fittings Flanges Exporter in India, Monel K500 Reducers Manufacturer in Chennai, Monel Alloy K500 Swage Nipple Price List in Chennai, Monel UNS N05500 Pipe Fittings Sizes in mm, Monel 2.4360 End Cap Distributor in Chennai, DIN 2.4375 Monel Pipe Fittings in India, Monel Alloy K500 Pipe Fittings Distributor in India
Monel K500 Pipe Fittings Specification
Specifications ASTM B366 / ASME SB366
Dimensions ASME/ANSI B16.9, ASME B16.28, MSS-SP-43, MSS SP-79
Size Seamless 1/2″ – 10″ , Welded 1/2″ – 48″
Type (Seamless & 100% X-Ray Welded, Fabricated)
Bending Radius R=1D, 2D, 3D, 5D, 6D, 8D, 10D or Custom
Thickness Sch 5s, Sch 10s, Sch 40s, Sch 80s, Sch 160s, Sch XXS
Grade Monel K500 Pipe Fittings UNS (N05500), DIN (2.4375)
Monel K500 Pipe Fittings comprise around 63% nickel, 27–33% copper, 2.3–3.15% aluminum, and 0.35–0.85% titanium, with minor amounts of iron and other impurities. It offers superior resistance to seawater, sour gas, and chemical corrosion. Monel K500 offers a tensile strength of up to 965 MPa and has excellent fatigue resistance and is suitable for high-pressure and high-stress applications. It is also non-magnetic and retains its mechanical properties at extreme temperatures.
Monel K500 Pipe Fittings Chemical Composition
| Grade | C | Mn | Si | S | Cu | Fe | Ni |
| Monel K500 | 0.25 max | 1.5 max | 0.5 max | 0.010 max | 27.00 – 33.00 | 0.5 – 2 | 63.00 min |
Alloy K500 Pipe Fittings Mechanical Properties
| Density | Melting Point | Yield Strength (0.2%Offset) | Tensile Strength | Elongation |
| 8.44 g/cm3 | 1350 °C (2460 °F) | Psi – 115000 , MPa – 790 | Psi – 160000 , MPa – 1100 | 20 % |
ASME B16.28 Welded Pipe Fittings Price List in Chennai, Monel UNS N05500 Pipe Fittings Supplier in India, Monel Alloy DIN 2.4375 Pipes Fittings Exporter in Chennai, DIN 2.4375 Monel Pipe Fittings Exporter in India, Monel Alloy K500 Stub End Exporter in Chennai, Monel K500 Equal Cross in India, Monel K500 Long Radius Elbow Size Chart, K500 Monel Pipe Fittings Price in India, ASTM B366 UNS N05500 Tee Weight Chart, Monel K500 Crosses Supplier in Chennai, WNR 2.4375 Monel K500 Pipe Fittings Stockist in India, Monel Alloy K500 45° Elbows Supplier in India
Largest Monel K500 Pipe Fittings Supplier in Chennai, India
Meet Fittings is a leading supplier of Monel K500 pipe fittings in Chennai, India. We offer an extensive range of Monel K500 fittings, renowned for their excellent corrosion resistance and high strength, which makes them perfect for demanding industrial applications like chemical processing, marine environments, and high-temperature systems. With a commitment to quality and reliable delivery, we ensure our clients receive top-tier products tailored to meet the specific needs of various industries.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
If You Are Looking To Buy High Quality
Monel Alloy K500 Pipe Fittings Equivalent Grade
| STANDARD | WERKSTOFF NR. | UNS | JIS | BS | GOST | AFNOR | EN |
| Monel K500 | 2.4375 | N05500 | – | – | – | – | – |
Why Choose Monel K500 Pipe Fittings from Meet Fittings?
Monel K500 pipe fittings from Meet Fittings offer exceptional corrosion resistance, especially in seawater and harsh environments. They are known for their high strength, durability, and resistance to pitting and crevice corrosion, ensuring long-lasting performance. We provide precise manufacturing, quality control, and reliable service for diverse industrial applications.
Monel K500 Pipe Fittings Dimensions Chart
| NPS (Normal Pipe Size) | O.D. (Outside Daimeter) | Elbow 90 Deg | Elbow 45 Deg | Return Elbow 180 Deg | ||||
|---|---|---|---|---|---|---|---|---|
| (inch) | Long Radius Elbow | Short Radius | Long Radius Elbow | Long Radius Elbow | ||||
| (millimeter/ MM) | (inch./ Inches) | Center to Face (Inches) | Center to Face (Inches) | Center to Face (Inches) | Radius (Inches) | Center to Center (Inches) | Back to face (Inches) | |
| 1/2 | 21.3 | 0.840 | 1 1/2 | – | 5/8 | 2 | 1 7/8 | |
| 3/4 | 26.7 | 1.050 | 1 1/8 | – | 7/16 | 2 1/4 | 1 11/16 | |
| 1 | 33.4 | 1.315 | 1 1/2 | 1 | 7/8 | 3 | 2 3/16 | |
| 1 1/4 | 42.2 | 1.660 | 1 7/8 | 1 1/4 | 1 | 3 3/4 | 2 3/4 | |
| 1 1/2 | 48.3 | 1.900 | 2 1/4 | 1 1/2 | 1 1/8 | 3 | 4 1/2 | 3 1/4 |
| 2 | 60.3 | 2.375 | 3 | 2 | 1 3/8 | 4 | 6 | 4 3/16 |
| 2 1/2 | 73.0 | 2.875 | 3 3/4 | 2 1/2 | 1 3/4 | 5 | 7 1/2 | 5 3/16 |
| 3 | 88.9 | 3.500 | 4 1/2 | 3 | 2 | 6 | 9 | 6 1/4 |
| 3 1/2 | 101.6 | 4.000 | 5 1/4 | 3 1/2 | 2 1/4 | 7 | 10 1/2 | 7 1/4 |
| 4 | 114.3 | 4.500 | 6 | 4 | 2 1/2 | 8 | 12 | 8 1/4 |
| 5 | 141.3 | 5.563 | 7 1/2 | 5 | 3 1/8 | 10 | 15 | 10 5/16 |
| 6 | 168.3 | 6.625 | 9 | 6 | 3 3/4 | 12 | 18 | 12 5/16 |
| 8 | 219.1 | 8.625 | 12 | 8 | 5 | 12 | 24 | 16 5/16 |
| 10 | 273.1 | 10.750 | 15 | 10 | 6 1/4 | 15 | 30 | 20 3/8 |
| 12 | 323.9 | 12.750 | 18 | 12 | 7 1/2 | 18 | 36 | 24 3/8 |
Monel K500 Short Radius Elbow Sizes in mm, ASME B16.28 90 Deg. Elbow Manufacturer in Chennai, Monel UNS N05500 Pipe Fittings Thickness, K500 Monel Alloy ASME B16.28 Long Radius Elbow Supplier in Chennai, Monel K500 Pipe Fittings Exporter in India, Monel Alloy K500 Pipe Fittings Price List in Chennai, WNR 2.4360 Monel K500 Pipe Fittings Distributor in Chennai, Monel UNS N05500 Pipe Fittings Supplier in Chennai, Monel Alloy K500 Stubends Distributor in India
Customer Support
Largest Inventory
On Time Deliveries
ISO Certified
Monel K500 Pipe Fittings offer exceptional advantages, including superior corrosion resistance, making them ideal for marine and chemical industries. They combine high strength and toughness with excellent resistance to stress corrosion cracking and erosion in harsh environments. Their non-magnetic properties and outstanding thermal conductivity make them versatile for diverse applications. Monel K500 fittings maintain mechanical properties even at sub-zero and elevated temperatures, ensuring durability and reliability. Additionally, their ease of machining and fabrication allows for custom designs, meeting various industrial needs with long-term performance and low maintenance requirements.
Monel K500 Pipe Fittings Size Chart
| O.D. or I.D. Diameter | Equivalent Decimal | Nominal Diameter | Typical Threads In Inch |
| 5/16 | 0.313 | 1/16 | 27 |
| 13/32 | 0.405 | 1/8 | 27 |
| 35/64 | 0.540 | 1/4 | 18 |
| 43/64 | 0.675 | 3/8 | 18 |
| 27/32 | 0.840 | 1/2 | 14 |
| 1-3/64 | 1.050 | 3/4 | 14 |
| 1-5/16 | 1.315 | 1 | 11-1/2 |
| 1-21/32 | 1.660 | 1-1/4 | 11-1/2 |
| 1-29/32 | 1.900 | 1-1/2 | 11-1/2 |
| 2-3/8 | 2.375 | 2 | 11-1/2 |
| 2-7/8 | 2.875 | 2-1/2 | 8 |
| 3-1/2 | 3.500 | 3 | 8 |
| 4 | 4.000 | 3-1/2 | 8 |
| 4-1/2 | 4.500 | 4 | 8 |

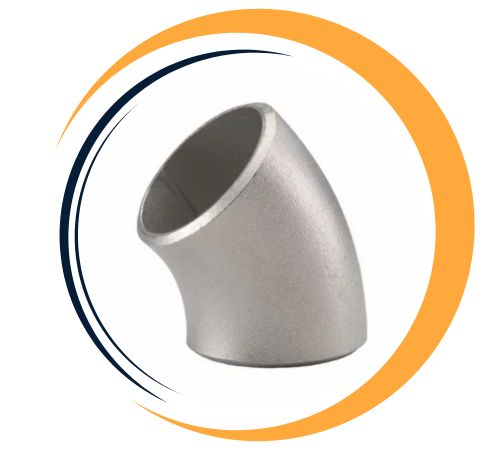

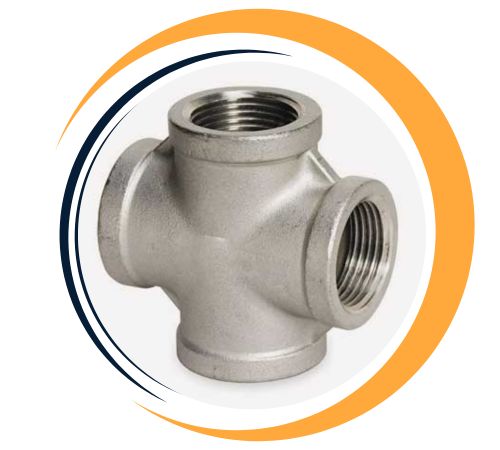

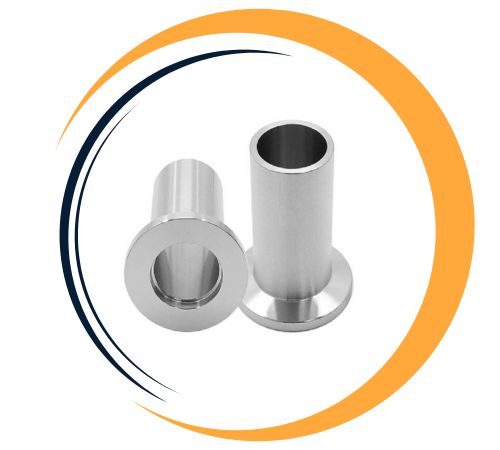

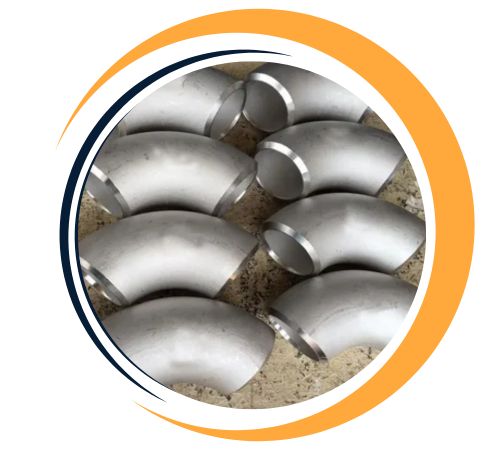

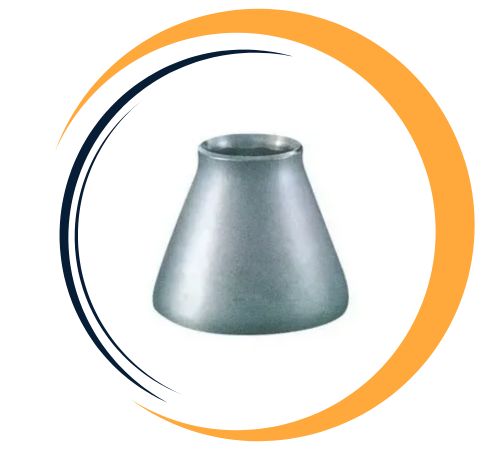

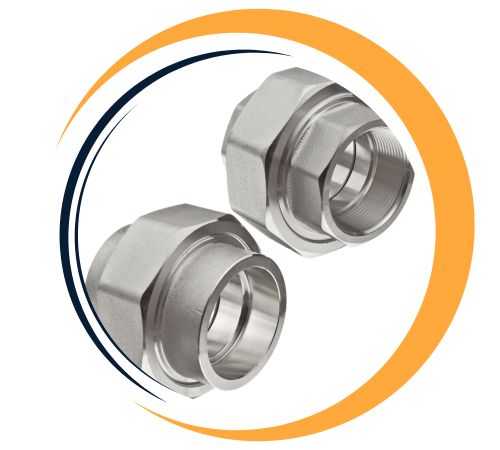

Types of Monel K500 Pipe Fittings
Are Custom Sizes Available for Monel K500 Pipe Fittings?
Yes, custom sizes for Monel K500 pipe fittings are available at Meet Fittings. We offer tailored solutions to meet your specific requirements, ensuring optimal performance for your projects. For more information, please contact us at sales@meetfitings.co.in.
Monel K500 Pipe Fittings Price List in Chennai, Monel Alloy DIN 2.4375 Pipes Fittings Supplier in India, UNS N05500 Monel K500 Pipe Fittings Dealer in Chennai, Monel K500 180° Butt weld Elbow Supplier in Chennai, K500 Monel 45° Butt Weld Elbow Exporter in Chennai, Monel Alloy K500 Swage Nipple Size Chart, Monel Alloy DIN 2.4375 Pipe Fittings Price in India, Monel K500 Equal Cross Thickness, Monel Alloy K500 45° Elbows Supplier in Chennai, ASTM B366 90 Deg Elbow Stockist in India, Alloy K500 End Pipe Cap Exporter in India
Application Industry of Monel K500 Pipe Fittings
Monel K500 Pipe Fittings find extensive applications in demanding applications including marine pump shafts, valve components, heat exchangers, offshore platforms, and chemical processing equipment. Due to their good resistance against corrosion by saltwater, erosion, and stress-corrosion cracking, Monel K500 Pipe Fittings retain long-term performance in demanding applications. The fittings ensure leak-free, long-lasting connections with continued structural integrity under thermal and mechanical loads. With their high strength, good corrosion resistance, and better performance, Monel K500 fittings are best suited for industries demanding strong and long-lasting piping systems.
