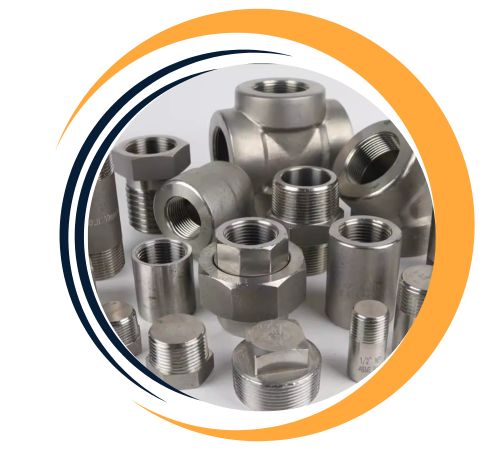

Stainless Steel 304H Forged Fittings Manufacturer and Supplier in Chennai, India
Based in Chennai, India, we take pride in being a well-respected manufacturer and supplier of Stainless Steel 304H Forged Fittings. We provide top-notch solutions for industries that work in high-temperature and high-pressure settings. Our SS 304H forged fittings are celebrated for their durability, heat resistance, and dependable performance. Crafted using cutting-edge forging techniques, they meet international standards, making them perfect for demanding applications in sectors like petrochemicals, power generation, and refineries. We are dedicated to precision, timely delivery, and ensuring our customers are satisfied, serving both local and global clients with consistently high-quality forged piping components.
Table of Contents

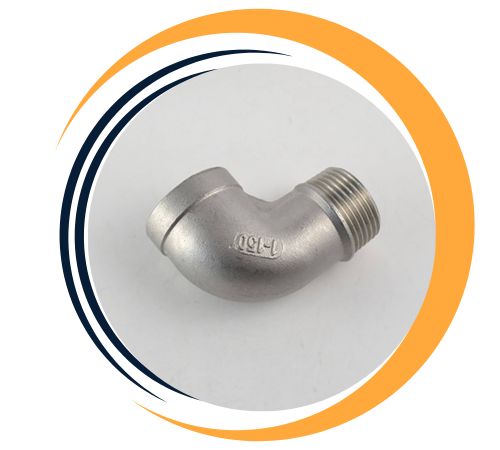

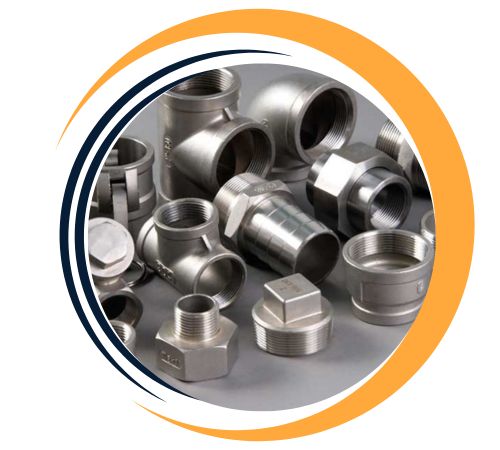

Stainless Steel 304H Threaded Fitting Price List in Chennai, UNS S30409 Stainless Steel Forged Fittings Supplier in India, Stainless Steel 304H High Pressure Forged Fittings Exporter in Chennai, Stainless Steel 304H Hex Plug Supplier in Chennai, SS 304H Threaded Pipe Elbow Exporter in Chennai, SS UNS S30409 Pipe Nipple Size Chart, Stainless Steel 304H Forged Fittings Price in India, SS 304H Screwed Fittings in Chennai, Stainless Steel 1.4948 Forged Fittings Supplier in Chennai, Stainless Steel 304H Hexagonal Plug Stockist in India, Stainless Steel 304H Forged Fittings Exporter in India
Stainless Steel 304H Forged Fittings Specification
Specifications : ASTM A182 & ASME SA182
Standard : ASME 16.11, MSS SP-79, 83, 95, 97, BS 3799
Size : 1/8” NB to 4” NB (Socketweld & Screwed-Threaded)
Class : 2000 LBS, 3000 LBS, 6000 LBS, 9000 LBS
Type : Socketweld Fittings, Screwed-Threaded Fittings
Stainless Steel 304H Forged Fittings consist of 18–20% chromium and 8–11% nickel, along with a higher carbon content (0.04–0.10%) that enhances their strength at high temperatures and resistance to creep. These fittings excel in resisting oxidation and corrosion, even in elevated temperature environments. They boast a minimum tensile strength of 515 MPa, yield strength of 205 MPa, and an elongation of 40%. You can find various types, including forged elbows, tees, couplings, unions, crosses, and caps. Designed for applications that require high strength and pressure resistance, SS 304H forged fittings guarantee long-lasting durability and precise dimensions.
Stainless Steel 304H Forged Fittings Chemical Compostion
| Grade | C | Mn | Si | P | S | Cr | Mo | Ni | N |
| SS 304H | 0.10 max | 2.0 max | 0.75 max | 0.045 max | 0.03 max | 18 – 20 | – | 8 – 10.5 | – |
Stainless Steel 304H Forged Fittings Mechanical Properties
| Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| 8.0 g/cm3 | 1400 °C (2550 °F) | Psi – 75000, MPa – 515 | Psi – 30000, MPa – 205 | 35 % |

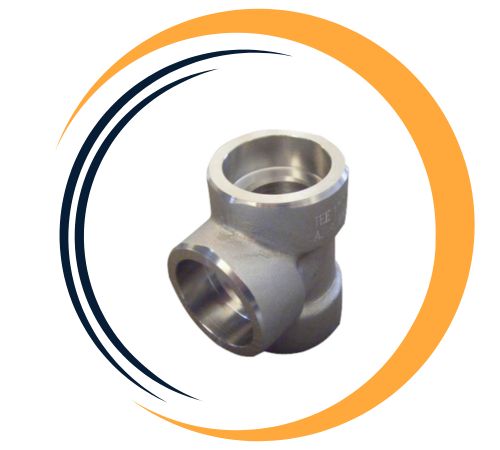

SS 304H Socket Weld Fittings Exporter in India, DIN 1.4948 Stainless Steel Union Price List in Chennai, Stainless Steel 304H Forged Fittings Supplier in India, ANSI B16.11 Stainless Steel 304H Forged Fittings Exporter in Chennai, Stainless Steel 304H Forged Elbow Exporter in Chennai, Stainless Steel 304H Forged Tee in India, SS 304H Socket Weld Fittings Size Chart, Stainless Steel 304H Coupling Price in India, UNS S30409 Stainless Steel Forged Threaded 90 deg. Elbow Weight Chart, Stainless Steel 304H Stainless Steel Cross Trader Supplier in Chennai, Stainless Steel 304H Socket weld Fittings Stockist in India
Largest Stainless Steel 304H Forged Fittings Supplier in Chennai, India
Meet Fittings is a leading supplier of Stainless Steel 304H Forged Fittings in Chennai, India. We offer an extensive range of Stainless Steel 304H Forged Fittings, renowned for their excellent corrosion resistance and high strength, which makes them perfect for demanding industrial applications like chemical processing, marine environments, and high-temperature systems. With a commitment to quality and reliable delivery, we ensure our clients receive top-tier products tailored to meet the specific needs of various industries.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
If You Are Looking To Buy High Quality
Stainless Steel 304H Forged Fittings Equivalent Grade
| STANDARD | WERKSTOFF NR. | UNS |
| SS 304H | 1.4948 | S30409 |
Pressure Rating Of Stainless Steel 304H Forged fitting
| Pressure-Temperature | |||||
| Temperature | Class | ||||
| 150 | 300 | ||||
| 1/4 – 1 inch. | 1 1/4 – 2 inch. | 2 1/2 – 3 inch. | |||
| (oF) | (oC) | ||||
| -20 to 150 | -29 to 66 | 300 | 2000 | 1500 | 1000 |
| 200 | 93 | 265 | 1785 | 1350 | 910 |
| 250 | 121 | 225 | 1575 | 1200 | 825 |
| 300 | 149 | 185 | 1360 | 1050 | 735 |
| 350 | 177 | 150 | 1150 | 900 | 650 |
| 400 | 204 | – | 935 | 750 | 560 |
| 450 | 232 | – | 725 | 600 | 475 |
| 500 | 260 | – | 510 | 450 | 385 |
| 550 | 288 | – | 300 | 300 | 300 |
Why Choose Stainless Steel 304H Forged Fittings from Meet Fittings?
Choose Stainless Steel 304H Forged Fittings from Meet Fittings for superior quality, exceptional corrosion resistance, and reliable performance in extreme conditions. We offer customized solutions backed by expert support and industry experience.
Stainless Steel UNS S30409 Full Coupling Exporter in India, SS 304H Forged Socket weld Fittings Sizes in mm, Stainless Steel 304H Forged Fittings Manufacturer in Chennai, Stainless Steel DIN 1.4948 Threaded Fittings Supplier in Chennai, ASME SA182 Stainless Steel 304H Forged Fittings Price List in Chennai, SUS 304H Forged Union Distributor in Chennai, SS UNS S30409 Forged Fittings Supplier in Chennai, Stainless Steel 304H Forged Cap Distributor in India
Customer Support
Largest Inventory
On Time Deliveries
ISO Certified
Stainless steel 304H forged fittings offer many advantages, including even higher strength at elevated temperatures, better resistance to corrosion and oxidation Their high carbon content increases strength, making them suitable for higher temperatures applications such as electric motors and heat exchangers. These fittings provide excellent weldability, formability and durability, ensuring long-term performance in harsh environments. The resistance to pitting, crevice corrosion and stress corrosion cracking further extends the life of the fitting. In addition the structural integrity is preserved under extreme pressure and temperature conditions, ensuring reliability and cost-effectiveness under industrial conditions.
Types of Stainless Steel 304H Forged Fittings
Are Custom Sizes Available for Stainless Steel 304H Forged Fittings?
Yes, custom sizes for Stainless Steel 304H Forged Fittings are available at Meet Fittings. We offer tailored solutions to meet your specific requirements, ensuring optimal performance for your projects. For more information, please contact us at sales@meetfitings.co.in
Dimension of SS 304H Forged Fittings
| ASME b16.9 Fittings Normal Pipe Size | ANSI b16 9 Pipe Fitting O D Y | Wall Thickness T (Pipe Elbow Sch.) | LR 45 Deg Elbows Centre to Face B | SR 45 Deg Elbows Weight | LR 90 Deg Elbows Centre to Face A | LR 90 Deg Elbows Weight In Below | SR 90 Deg Elbows Centre to Face A | SR 90 Deg Elbows Weight In Below | ||
| mm | inch | mm | mm | Schedule | mm | kg | mm | kg | mm | kg |
| 15 | 1/2” | 21.3 | 2.78 | STD | 15.9 | 0.04 | 38.1 | 0.08 | – | – |
| 3.73 | X.S | 15.9 | 0.05 | 38.1 | 0.10 | – | – | |||
| 20 | 3/4” | 26.7 | 2.87 | STD | 11.1 | 0.04 | 28.6 | 0.08 | – | – |
| 3.91 | X.S | 11.1 | 0.05 | 28.6 | 0.11 | – | – | |||
| 25 | 1” | 33.4 | 3.38 | STD | 22.2 | 0.09 | 38.1 | 0.15 | 25.4 | 0.11 |
| 4.55 | X.S | 22.2 | 0.11 | 38.1 | 0.19 | 25.4 | 0.14 | |||
| 32 | 11/4” | 42.2 | 3.56 | STD | 25.4 | 0.14 | 47.6 | 0.28 | 31.75 | 0.18 |
| 4.85 | X.S | 25.4 | 0.2 | 47.6 | 0.39 | 31.75 | 0.24 | |||
| 40 | 11/2” | 48.3 | 3.68 | STD | 28.6 | 0.2 | 57.1 | 0.4 | 38.1 | 0.26 |
| 5.08 | X.S | 28.6 | 0.25 | 57.1 | 0.5 | 38.1 | 0.35 | |||
| 50 | 2” | 60.3 | 3.91 | STD | 34.9 | 0.36 | 76.2 | 0.72 | 50.8 | 0.5 |
| 5.54 | X.S | 34.9 | 0.5 | 76.2 | 1.0 | 50.8 | 0.68 | |||
| 65 | 21/2” | 73.0 | 5.16 | STD | 44.4 | 0.73 | 95.2 | 1.46 | 63.5 | 0.95 |
| 7.01 | X.S | 44.4 | 0.91 | 95.2 | 1.82 | 63.5 | 1.27 | |||
| 80 | 3” | 88.9 | 5.49 | STD | 50.8 | 1.1 | 114.3 | 2.18 | 76.2 | 1.45 |
| 7.62 | X.S | 50.8 | 1.45 | 114.3 | 2.86 | 76.2 | 1.95 | |||
| 100 | 4” | 114.3 | 6.02 | STD | 63.5 | 2.1 | 152.4 | 4.2 | 101.6 | 2.8 |
| 8.56 | X.S | 63.5 | 2.9 | 152.4 | 5.7 | 101.6 | 3.9 | |||
| 125 | 5” | 141.3 | 6.65 | STD | 79.4 | 3.4 | 190.0 | 6.8 | 127.0 | 4.8 |
| 9.5 | X.S | 79.4 | 5.0 | 190.0 | 10.0 | 127.0 | 6.5 | |||
| 150 | 6” | 168.3 | 7.11 | STD | 95.2 | 5.1 | 229.0 | 10.1 | 152.4 | 6.8 |
| 10.97 | X.S | 95.2 | 7.7 | 229.0 | 15.3 | 152.4 | 10.2 | |||
| 200 | 8” | 219.1 | 8.18 | STD | 127.0 | 10.2 | 305.0 | 20.4 | 203.0 | 13.6 |
| 12.7 | X.S | 127.0 | 15.5 | 305.0 | 30.9 | 203.0 | 20.9 | |||
| 250 | 10” | 273.9 | 9.27 | STD | 159.0 | 18.1 | 381.0 | 36.1 | 254.0 | 24.1 |
| 12.7 | X.S | 159.0 | 24.4 | 381.0 | 48.8 | 254.0 | 32.5 | |||
| 300 | 12” | 323.9 | 9.52 | STD | 190.0 | 26.6 | 457.0 | 53.1 | 305.0 | 35.4 |
| 12.7 | X.S | 190.0 | 35.0 | 457.0 | 70.0 | 305.0 | 46.7 | |||
| 350 | 14” | 355.6 | 9.52 | STD | 222.0 | 34.1 | 533.0 | 68.1 | 356.0 | 45.4 |
| 12.7 | X.S | 222.0 | 45.0 | 533.0 | 90.0 | 356.0 | 60.0 | |||
| 400 | 16” | 406.4 | 9.52 | STD | 254.0 | 45.0 | 610.0 | 89.3 | 406.0 | 59.5 |
| 12.7 | X.S | 254.0 | 59.0 | 610.0 | 118.0 | 406.0 | 78.7 | |||
| 450 | 18” | 457.0 | 9.52 | STD | 286.0 | 56.5 | 686.0 | 113.0 | 457.0 | 75.6 |
| 12.7 | X.S | 286.0 | 75.0 | 686.0 | 150.0 | 457.0 | 100.0 | |||
| 500 | 20” | 508.0 | 9.52 | STD | 318.0 | 85.0 | 762.0 | 140.0 | 508.0 | 93.5 |
| 12.7 | X.S | 318.0 | 112.5 | 762.0 | 186.0 | 508.0 | 124.0 | |||
| 600 | 24” | 610.00 | 9.52 | STD | 381.0 | 101.5 | 914.0 | 203.0 | 610.0 | 135.0 |
| 12.7 | X.S | 381.0 | 134.5 | 914.0 | 269.0 | 610.0 | 179.0 | |||
Size Of Stainless Steel 304H Forged fitting
| NPS (inch) | Pipe Schedule. | OD (inch) | Wall Thick. (in) | Temperature | ||||
| 100 Fitting | 200 Fitting | 300 Fitting | 400 Fitting | 500 Fitting | ||||
| Allowable Stress | ||||||||
| 16700 | 16700 | 16700 | 15500 | 14400 | ||||
| 1″ | 40 | 1.315 | 0.133 | 2205 | 2205 | 2205 | 2047 | 1902 |
| 80 | 1.315 | 0.179 | 3061 | 3061 | 3061 | 2841 | 2640 | |
| 160 | 1.315 | 0.250 | 4493 | 4493 | 4493 | 4170 | 3874 | |
| 1 1/2″ | 40 | 1.900 | 0.145 | 1629 | 1629 | 1629 | 1512 | 1404 |
| 80 | 1.900 | 0.200 | 2303 | 2303 | 2303 | 2138 | 1986 | |
| 160 | 1.900 | 0.281 | 3362 | 3362 | 3362 | 3120 | 2899 | |
| 2″ | 40 | 2.375 | 0.154 | 1371 | 1371 | 1371 | 1272 | 1182 |
| 80 | 2.375 | 0.218 | 1985 | 1985 | 1985 | 1843 | 1712 | |
| 160 | 2.375 | 0.344 | 3283 | 3283 | 3283 | 3047 | 2831 | |
| 3″ | 40 | 3.500 | 0.216 | 1301 | 1301 | 1301 | 1208 | 1122 |
| 80 | 3.500 | 0.300 | 1844 | 1844 | 1844 | 1712 | 1590 | |
| 160 | 3.500 | 0.438 | 2787 | 2787 | 2787 | 2587 | 2403 | |
| 4″ | 40 | 4.500 | 0.237 | 1102 | 1102 | 1102 | 1023 | 950 |
| 80 | 4.500 | 0.337 | 1596 | 1596 | 1596 | 1482 | 1377 | |
| 160 | 4.500 | 0.531 | 2611 | 2611 | 2611 | 2424 | 2552 | |
| 5″ | 40 | 5.563 | 0.258 | 965 | 965 | 965 | 896 | 832 |
| 80 | 5.563 | 0.375 | 1428 | 1428 | 1428 | 1325 | 1231 | |
| 160 | 5.563 | 0.625 | 2474 | 2474 | 2474 | 2296 | 2133 | |
| 6″ | 40 | 6.625 | 0.280 | 877 | 877 | 877 | 814 | 756 |
| 80 | 6.625 | 0.432 | 1379 | 1379 | 1379 | 1280 | 1189 | |
| 160 | 6.625 | 0.719 | 2382 | 2382 | 2382 | 2211 | 2054 | |
| 8″ | 40 | 8.625 | 0.322 | 771 | 771 | 771 | 716 | 665 |
| 80 | 8.625 | 0.500 | 1218 | 1218 | 1218 | 1131 | 1050 | |
| 160 | 8.625 | 0.906 | 2298 | 2298 | 2298 | 2133 | 1982 | |
| 10″ | 40 | 10.750 | 0.365 | 699 | 699 | 699 | 649 | 603 |
| 80 | 10.750 | 0.594 | 1159 | 1159 | 1159 | 1075 | 999 | |
| 160 | 10.750 | 1.125 | 2289 | 2289 | 2289 | 2124 | 1974 | |
ASTM A182 SS 304H End Cap Supplier in Chennai, Stainless Steel 304H Forged Pipe Fittings Weight Chart, Stainless Steel 304H Welding Boss Exporter in India, Stainless Steel 304H High Pressure Forged Fitting Manufacturer in Chennai, WERKSTOFF NR. 1.4948 Threaded Cross Price List in Chennai, Stainless Steel 304H Threaded Fittings Sizes in mm, Stainless Steel 304H Forged Fittings Distributor in Chennai, Stainless Steel 304H 180 Deg. Street Elbow in India, Stainless Steel 304H Forged Tee Distributor in India.
Application Industry of Stainless Steel 304H Forged Fittings
These fittings are often utilized in high-temperature service environments where mechanical strength and resistance to thermal stress are vital. They’re commonly found in boilers, superheaters, heat exchangers, and piping systems in power plants. Thanks to their high carbon content, they are well-suited for structural applications in the oil and gas, petrochemical, and chemical processing industries. The forged construction provides exceptional strength and leak resistance, making them perfect for high-pressure steam lines, furnace components, and industrial heating systems where durability and performance are key.
