Stainless Steel 410 Buttweld Fittings
Meet Fittings, based in Chennai, India, is a leading manufacturer and supplier renowned for delivering high-quality piping solutions. Specializing in a diverse range of products, the company is known for its precision, reliability, and innovation. One of their standout offerings includes stainless steel 410 buttweld fittings, engineered to withstand the toughest industrial environments. These fittings provide exceptional durability, corrosion resistance, and high performance. Backed by a strong reputation for excellence, Meet Fittings is committed to meeting all your piping and fitting requirements with advanced, dependable solutions.
Table of Contents
Stainless Steel 410 Pipe Elbow In India, Stainless Steel 410 Pipe Fittings Chennai, SS 410 Buttweld Elbow Chennai, Stainless Steel S41000 Seamless Fittings Exporter Chennai, Stainless Steel 1.4006 Butt Weld Pipe Fittings in India, Stainless Steel 410 Two Joint Pipe Fittings Chennai, 410 Stainless Steel Welded Fittings Manufacturers in India, Stainless Steel 410 Buttweld Fittings In India, ASTM A403 WP3 410 Stainless Steel Buttweld Fittings Supplier in Chennai, India.
Stainless Steel 410 Buttweld Fittings Specification
| Specifications | ASME SA403 / ASTM A403 |
|---|---|
| Dimension Standard | ASME/ANSI B16.9, MSS-SP-43/SP-79, ASME B16.28, ASME B16.25, ASME B16.49 |
| Standard Size Range | 1/2” NB TO 48” NB. (Fabricated, Seamless and 100% X-Ray Welded) |
| Manufacturing Type | Fabricated / Seamless / Welded / ERW |
| Bending Radius | R=1D, 2D, 3D, 5D, 6D, 8D, 10D, or Custom |
| Wall Thickness / Schedule | SCH5, SCH10, SCH20, SCH30, SCH40, STD, SCH80, XS, SCH60, SCH80, SCH120, SCH140, SCH160, XXS / 3mm – 40mm |
| End Connection | Butt Weld |
| Melting Point | 1400-1450°C for (WP410) |
| Outside Diameter (OD) | Seamless / Buttweld Fitting ( 1/2″～48″), ERW / Welded / Fabricated Buttweld Fitting (1/2″～48″) |
| Value Added Services | Hot Dipped Galvanizing, Electro Polish, Sand Blasting, Epoxy & FBE Coating, Threading, Soldering |
| Other Standards | MSS SP-75, ISO, SNSI, JIS, DIN, GB, DIN2617, JISB2311, JISB2312, JISB2313 / T12459GB / T13401, SH3408, SH3409HG / T21635HG / T21631SY / T05010 |
| Material Test Certificates (MTC) | As per EN 10204 3.2 and EN 10204 3.1, Certifying NACE MR0175, NACE MR0103 |
| Materials | AISI 410 |
| Two Halve / Two Joint Buttweld Fittings Size | 6″ to 48″ |
| Manufacturing Specification | ASME: ANSI B16.9, ANSI B16.28, ASME B16.25, MSS-SP-43, DIN: DIN2605, DIN2615, DIN2616, DIN2617, DIN28011, EN: EN10253-1, EN10253-2 |
| A403 SS Seamless Fittings | Size: 15 NB to 300 NB | Sch.& Swg: Sch.5 to Sch.XXs |
| A403 SS Welded Fittings | Size: 15 NB to 600 NB | Sch.& Swg: Sch.5 to Sch.80s |
The stainless steel 410 Buttweld fittings are made of a martensitic stainless steel alloy containing about 11.5-13.5% chromium. These properties provide excellent corrosion resistance, especially in lightly corroded areas. Mechanical characteristics include tensile strength of 550-750 MPa, yield strength of 205-510 MPa, and hardness of 35 to 45. HRC Stainless steel 410 exhibits moderate ductility and is heat-treatable, making it suitable for high temperature application. It is commonly used in chemical processing, heat exchangers, and food processing applications where strength and corrosion resistance are required.
Stainless Steel 410 Buttweld Fittings Chemical Composition
| Grade | C | Mn | Si | P | S | Cr | Mo | Ni | N | |
|---|---|---|---|---|---|---|---|---|---|---|
| 410 | min. | – | – | – | – | – | 11.5 | – | – | – |
| max. | 0.15 | 1.0 | 1.00 | 0.040 | 0.030 | 13.5 | – | 0.75 | – | |
Stainless Steel 410 Buttweld Fittings Mechanical Properties
| Grade | Tensile Strength (MPa) min | Yield Strength 0.2% Proof (MPa) min | Elongation (% in 50mm) min | Hardness | |
|---|---|---|---|---|---|
| Rockwell B (HR B) max | Brinell (HB) max | ||||
| 410 | 480 | 275 | 16 | 95 | 201 |
ASTM A403 Stainless Steel 410 Buttweld Fittings Cross in India, Stainless Steel 1.4006 Buttweld Pipe Fittings Chennai, SS 410 Butt Weld Pipe Cap Chennai, Stainless Steel 410 Eccentric Reducer Chennai, Stainless Steel 410 Equal Tee India, 410 Stainless Steel Reducer in Chennai, Stainless Steel 410 SR Elbow Exporter in India,
Largest Stainless Steel 410 Buttweld Fittings Supplier in Chennai, India
Meet Fittings is a leading supplier of Stainless Steel 410 Buttweld Fittings in Chennai, India. We offer an extensive range of Stainless Steel 410 Buttweld Fittings, renowned for their excellent corrosion resistance and high strength, which makes them perfect for demanding industrial applications like chemical processing, marine environments, and high-temperature systems. With a commitment to quality and reliable delivery, we ensure our clients receive top-tier products tailored to meet the specific needs of various industries.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
If You Are Looking To Buy High Quality
Stainless Steel 410 Buttweld Fittings Equivalent Grade
| Grade | UNS No | Old British | Euronorm | Swedish SS | Japanese JIS | ||
|---|---|---|---|---|---|---|---|
| BS | En | No | Name | ||||
| 410 | S41000 | 410S21 | 56A | 1.4006 | X12Cr13 | 2302 | SUS 410 |
Why Choose Stainless Steel 410 Buttweld Fittings from Meet Fittings?
Stainless Steel 410 Buttweld Fittings from Meet Fittings offer exceptional corrosion resistance, especially in seawater and harsh environments. They are known for their high strength, durability, and resistance to pitting and crevice corrosion, ensuring long-lasting performance. We provide precise manufacturing, quality control, and reliable service for diverse industrial applications.
UNS S41000 Stub End Uk, ANSI B16.9 Stainless Steel 410 Pipe Fittings Chennai, Stainless Steel 410 Pipe Bend Stockist in Chennai, Stainless Steel 410 Pipe Nipple Manufacturer & Exporter in Chennai, Stainless Steel 1.4006 Butt Weld Pipe Fittings in India, Stainless Steel 410 Pipe Two Joint Pipe Fittings Chennai, 410 Stainless Steel Pipe Welded Fittings Manufacturers in India, Stainless Steel 410 Pipe Butt weld Fittings In India, ASTM A403 Stainless Steel 410L Pipe Butt Weld Fittings Supplier in Chennai, India.
Customer Support
Largest Inventory
On Time Deliveries
ISO Certified
Stainless steel 410 buttweld fittings offer excellent corrosion resistance, particularly in mild to moderately corrosive environments, making them well-suited for industries like petrochemicals and food processing. Known for their superior mechanical properties, including high strength and density, these fittings are both durable and resilient. They resist wear and scratching while forming a strong, waterproof seal. Additionally, stainless steel 410 delivers outstanding heat resistance, with the ability to withstand elevated temperatures. These qualities make it a dependable choice for applications that demand strength, durability, and corrosion resistance.

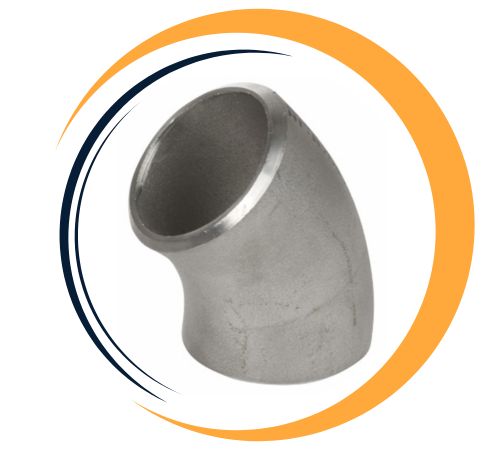

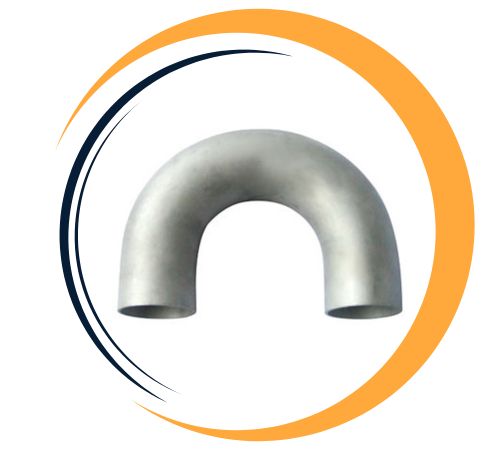

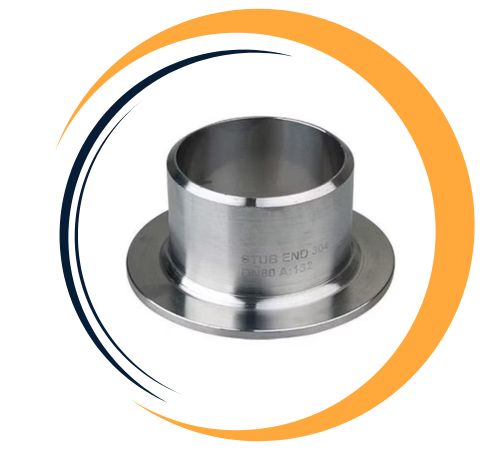

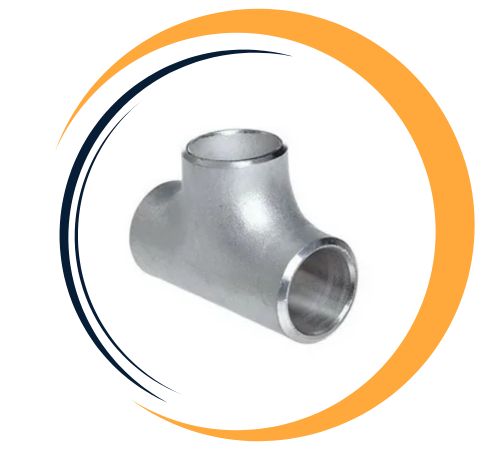

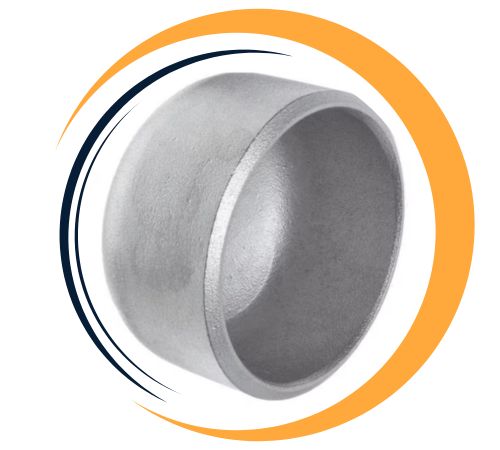

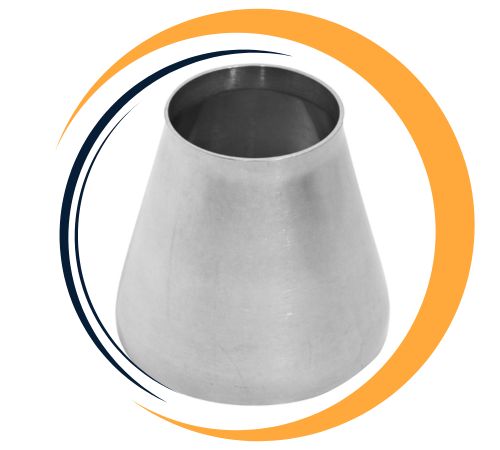

Types of Stainless Steel 410 Buttweld Fittings
Stainless Steel 410 Buttweld Fittings Dimensions Chart
| Nominal Pipe Size (inches) | Outside Diameter | 45°Elbows | 90° Elbows | 180° Returns | ||||
|---|---|---|---|---|---|---|---|---|
| Long Radius | Long Radius | Short Radius | Long Radius | |||||
| (mm) | (inches) | Center to Face (inches) | Radius (inches) | Center to Face (inches) | Center to Face (inches) | Center to Center (inches) | Back to face (inches) | |
| 1 | 33.4 | 1.315 | 7/8 | 1 1/2 | 1 | 3 | 2 3/16 | |
| 1/2 | 21.3 | 0.840 | 5/8 | 1 1/2 | – | 2 | 1 7/8 | |
| 3/4 | 26.7 | 1.050 | 7/16 | 1 1/8 | – | 2 1/4 | 1 11/16 | |
| 1 1/4 | 42.2 | 1.660 | 1 | 1 7/8 | 1 1/4 | 3 3/4 | 2 3/4 | |
| 1 1/2 | 48.3 | 1.900 | 1 1/8 | 3 | 2 1/4 | 1 1/2 | 4 1/2 | 3 1/4 |
| 2 | 60.3 | 2.375 | 1 3/8 | 4 | 3 | 2 | 6 | 4 3/16 |
| 2 1/2 | 73.0 | 2.875 | 1 3/4 | 5 | 3 3/4 | 2 1/2 | 7 1/2 | 5 3/16 |
| 3 | 88.9 | 3.500 | 2 | 6 | 4 1/2 | 3 | 9 | 6 1/4 |
| 3 1/2 | 101.6 | 4.000 | 2 1/4 | 7 | 5 1/4 | 3 1/2 | 10 1/2 | 7 1/4 |
| 4 | 114.3 | 4.500 | 2 1/2 | 8 | 6 | 4 | 12 | 8 1/4 |
| 5 | 141.3 | 5.563 | 3 1/8 | 10 | 7 1/2 | 5 | 15 | 10 5/16 |
| 6 | 168.3 | 6.625 | 3 3/4 | 12 | 9 | 6 | 18 | 12 5/16 |
| 8 | 219.1 | 8.625 | 5 | 12 | 12 | 8 | 24 | 16 5/16 |
| 10 | 273.1 | 10.750 | 6 1/4 | 15 | 15 | 10 | 30 | 20 3/8 |
| 12 | 323.9 | 12.750 | 7 1/2 | 18 | 18 | 12 | 36 | 24 3/8 |
Are Custom Sizes Available for Stainless Steel 410 Buttweld Fittings?
Yes, custom sizes for Stainless Steel 410 Buttweld Fittings are available at Meet Fittings. We offer tailored solutions to meet your specific requirements, ensuring optimal performance for your projects. For more information, please contact us at sales@meetfitings.co.in.
ASTM A403 Stainless Steel 410 Butt Weld Cross in India, Stainless Steel 1.4006 Buttweld Pipe Fittings Chennai, SS 410 Butt Weld Pipe Cap Chennai, Stainless Steel 410 Eccentric Reducer Chennai, Stainless Steel 410 Equal Tee India, 410 Stainless Steel Reducer in Chennai, SS 410 SR Elbow Exporter in India,
Application Industry of Stainless Steel 410 Buttweld Fittings
Stainless steel 410 buttweld fittings are widely used in applications that demand moderate corrosion resistance and high strength. They are particularly well-suited for industries such as petrochemicals, food processing, and pharmaceutical manufacturing, where durability and dependable performance are essential. These fittings are commonly found in the fabrication of valves, pumps, and heat exchangers. Thanks to their excellent resistance to oxidation and wear, they are ideal for environments involving mildly corrosive substances. Additionally, 410 buttweld fittings are also utilized in power generation, chemical processing, and water treatment facilities, making them a versatile and reliable choice across multiple sectors.
