Stainless Steel 904L Buttweld Fittings Manufacturer and Supplier in Chennai, India
Meet Fittings, Chennai, India, is a prominent manufacturer and supplier of *Stainless Steel 904L Buttweld Fittings*, providing excellent solutions for highly corrosive and challenging environments. These fittings are made from SS 904L—a very high-quality austenitic stainless steel with high strength and exceptional resistance to strong acids, pitting, and crevice corrosion. Meet Fittings offers complete line of buttweld fittings like elbows, tees, reducers, and caps that are made for high strength and accuracy. Catering to industries such as chemical processing, marine, pharmaceuticals, and offshore oil & gas, Meet Fittings is renowned for offering best-quality fittings meeting international quality standards and project specifications.
Table of Contents
Stainless Steel 904L Pipe Elbow In India, Stainless Steel 904L Pipe Fittings Chennai, SS 904L Buttweld Elbow Chennai, Stainless Steel N08904 Seamless Fittings Exporter Chennai, Stainless Steel 1.4539 Butt Weld Pipe Fittings in India, Stainless Steel 904L Two Joint Pipe Fittings Chennai, 904L Stainless Steel Welded Fittings Manufacturers in India, Stainless Steel 904L Buttweld Fittings In India, ASTM A403 WP3 904L Stainless Steel Buttweld Fittings Supplier in Chennai, India.
Stainless Steel 904L Buttweld Fittings Specification
| Grade | SS 904L | UNS N08904 |
| Standard | ASTM B366 / ASME SB366 |
| Dimensions | ANSI/ASME B16.9, B16.28, MSS-SP-43. |
| Thickness | 5s, 10s, 40s, 80s, 10, 20, 40, STD, 60, 80, XS, 100, 120, 140, 160, XXS available with NACE MR 01-75 |
| Size | 1/2″ NB – 48″ NB |
| Form | 90 Elbow, 45 Elbow, Long Radius Elbow, Short Radius Elbow, Concentric Reducer, Eccentric Reducer, Equal Tee, Unequal Tee, Lateral Tee, Cross, Bends 1.5d, 3d, 5d, 10d, U bend, 180 Deg Bend, Short Stub End, Long stub end, End Cap, Dish Cap |
| Schedule | SCH 5 To SCH XXS |
| Type | Seamless / Welded / Fabricated |
Stainless steel 904L buttweld fittings are made from a highly alloyed austenitic stainless steel, consisting of 24-26% chromium, 4.5-5.5% nickel, 1.5-2.5% molybdenum, and traces of copper, manganese and nitrogen especially Those materials this provides corrosion resistance, especially in acidic environments. The mechanical properties include a yield strength of about 220 MPa, a tensile strength of about 520 MPa, and an elongation of 40%. The alloy retains high resistance to pitting, crevice corrosion and stress corrosion cracking, making it ideal for chemical, pharmaceutical and marine applications.
Stainless Steel 904L Buttweld Fittings Chemical Composition
| Grade | C | Mn | Si | P | S | Cr | Mo | Ni | Cu |
|---|---|---|---|---|---|---|---|---|---|
| SS 904L | 0.020 max | 2.00 max | 1.00 max | 0.040 max | 0.030 max | 19.00 – 23.00 | 4.00 – 5.00 max | 23.00 – 28.00 | 1.00 – 2.00 |
Stainless Steel 904L Buttweld Fittings Mechanical Properties
| Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
|---|---|---|---|---|
| 7.95 g/cm3 | 1350 °C (2460 °F) | Psi – 71000 , MPa – 490 | Psi – 32000 , MPa – 220 | 35 % |
ASTM A403 Stainless Steel 904L Buttweld Fittings Cross in India, Stainless Steel 1.4539 Buttweld Pipe Fittings Chennai, SS 904L Butt Weld Pipe Cap Chennai, Stainless Steel 904L Eccentric Reducer Chennai, Stainless Steel 904L Equal Tee India, 904L Stainless Steel Reducer in Chennai, Stainless Steel 904L SR Elbow Exporter in India,
Largest Stainless Steel 904L Buttweld Fittings Supplier in Chennai, India
904L Stainless Steel Buttweld Fittings consist of high amounts of chromium (19–23%), nickel (23–28%), molybdenum (4–5%), and added copper (1–2%) to provide resistance to sulfuric acid and other aggressive media. These fittings have superior mechanical properties with the tensile strength of around 490 MPa and the yield strength of 220 MPa, as well as superior toughness and weldability. Low carbon content doesn’t allow precipitation of carbides during welding, ensuring corrosion resistance and strength in spite of exposure to aggressive environments having high chloride and acidity.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
If You Are Looking To Buy High Quality
Stainless Steel 904L Buttweld Fittings Equivalent Grade
| STANDARD | WERKSTOFF NR. | UNS | JIS | BS | KS | AFNOR | EN |
|---|---|---|---|---|---|---|---|
| SS 904L | 1.4539 | N08904 | SUS 904L | 904S13 | STS 317J5L | Z2 NCDU 25-20 | X1NiCrMoCu25-20-5 |
Why Choose Stainless Steel 904L Buttweld Fittings from Meet Fittings?
Stainless Steel 904L Buttweld Fittings from Meet Fittings offer exceptional corrosion resistance, especially in seawater and harsh environments. They are known for their high strength, durability, and resistance to pitting and crevice corrosion, ensuring long-lasting performance. We provide precise manufacturing, quality control, and reliable service for diverse industrial applications.
UNS N08904 Stub End Uk, ANSI B16.9 Stainless Steel 904L Pipe Fittings Chennai, Stainless Steel 904L Pipe Bend Stockist in Chennai, Stainless Steel 904L Pipe Nipple Manufacturer & Exporter in Chennai, Stainless Steel 1.4539 Butt Weld Pipe Fittings in India, Stainless Steel 904L Pipe Two Joint Pipe Fittings Chennai, 904L Stainless Steel Pipe Welded Fittings Manufacturers in India, Stainless Steel 904L Pipe Butt weld Fittings In India, ASTM A403 Stainless Steel 904L Pipe Butt Weld Fittings Supplier in Chennai, India.
Customer Support
Largest Inventory
On Time Deliveries
ISO Certified
Stainless steel 904L Buttweld Fittings provide excellent corrosion resistance, especially in aggressive environments with high concentrations of acids such as sulfuric acid. They are highly resistant to pitting and crevice corrosion, making them ideal for applications in the chemical, petrochemical and marine industries. The high molybdenum and nickel content of the alloy provides high strength and toughness even at elevated temperatures. Furthermore, these materials retain their structural integrity and function under oxidation reduction conditions. Their versatility, strength, and durability make them important application candidates.

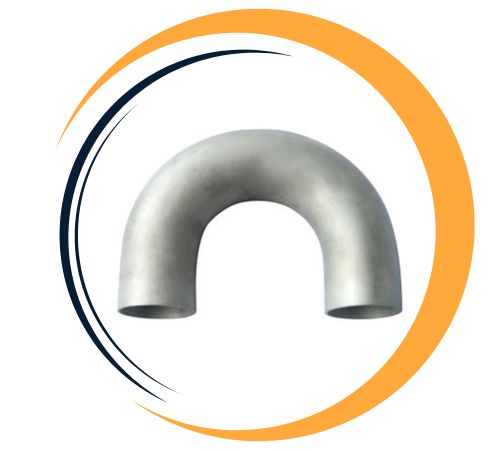

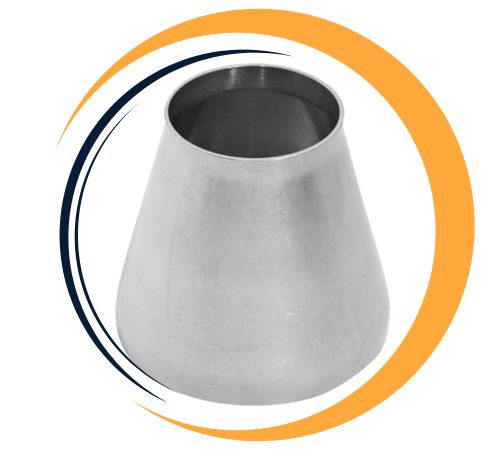

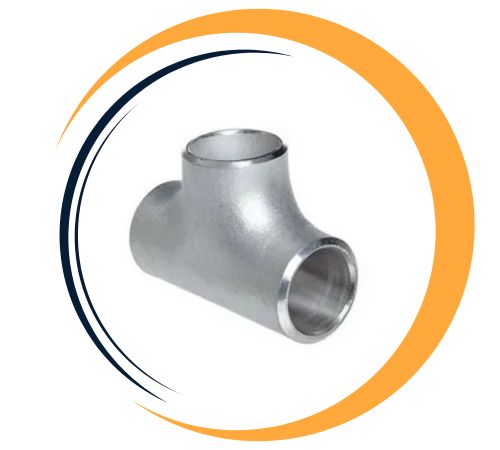

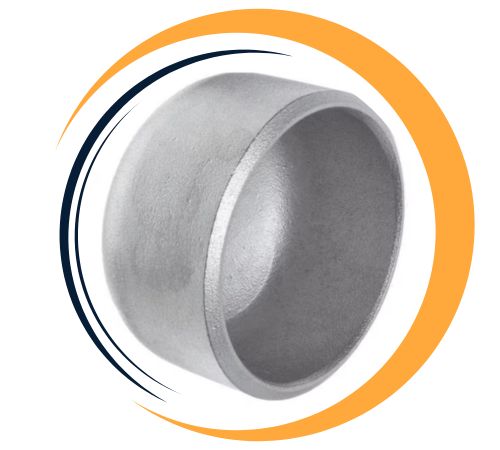

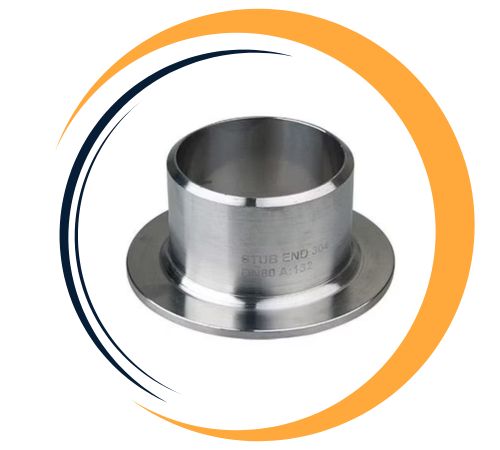

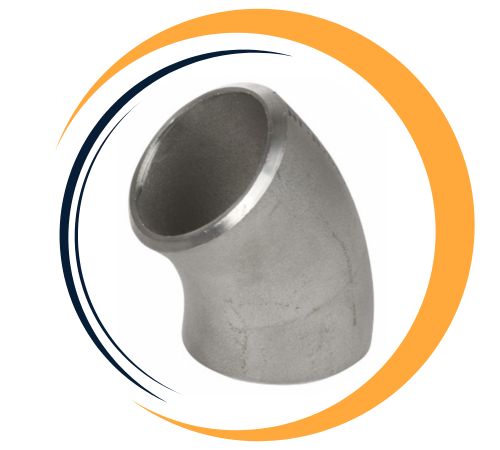

Types of Stainless Steel 904L Buttweld Fittings
Stainless Steel 904L Buttweld Fittings Dimensions Chart
| Nominal PipeSize | Outside Diameter | 90° Elbows | 45° Elbows | 180° Returns | ||||
|---|---|---|---|---|---|---|---|---|
| (inches) | – | Long Radius | Short Radius | Long Radius | Long Radius | |||
| (mm) | (inches) | Center to Face (inches) | Center to Face (inches) | Center to Face (inches) | Radius (inches) | Center to Center (inches) | Back to face (inches) | |
| 1/2 | 21.3 | 0.840 | 1 1/2 | – | 5/8 | 2 | 1 7/8 | |
| 3/4 | 26.7 | 1.050 | 1 1/8 | 7/16 | 2 1/4 | 1 11/16 | ||
| 1 | 33.4 | 1.315 | 1 1/2 | 1 | 7/8 | 3 | 2 3/16 | |
| 1 1/4 | 42.2 | 1.660 | 1 7/8 | 1 1/4 | 1 | 3 3/4 | 2 3/4 | |
| 1 1/2 | 48.3 | 1.900 | 2 1/4 | 1 1/2 | 1 1/8 | 3 | 4 1/2 | 3 1/4 |
| 2 | 60.3 | 2.375 | 3 | 2 | 1 3/8 | 4 | 6 | 4 3/16 |
| 2 1/2 | 73.0 | 2.875 | 3 3/4 | 2 1/2 | 1 3/4 | 5 | 7 1/2 | 5 3/16 |
| 3 | 88.9 | 3.500 | 4 1/2 | 3 | 2 | 6 | 9 | 6 1/4 |
| 3 1/2 | 101.6 | 4.000 | 5 1/4 | 3 1/2 | 2 1/4 | 7 | 10 1/2 | 7 1/4 |
| 4 | 114.3 | 4.500 | 6 | 4 | 2 1/2 | 8 | 12 | 8 1/4 |
| 5 | 141.3 | 5.563 | 7 1/2 | 5 | 3 1/8 | 10 | 15 | 10 5/16 |
| 6 | 168.3 | 6.625 | 9 | 6 | 3 3/4 | 12 | 18 | 12 5/16 |
| 8 | 219.1 | 8.625 | 12 | 8 | 5 | 12 | 24 | 16 5/16 |
| 10 | 273.1 | 10.750 | 15 | 10 | 6 1/4 | 15 | 30 | 20 3/8 |
| 12 | 323.9 | 12.750 | 18 | 12 | 7 1/2 | 18 | 36 | 24 3/8 |
Are Custom Sizes Available for Stainless Steel 904L Buttweld Fittings?
Yes, custom sizes for Stainless Steel 904L Buttweld Fittings are available at Meet Fittings. We offer tailored solutions to meet your specific requirements, ensuring optimal performance for your projects. For more information, please contact us at sales@meetfitings.co.in.
ASTM A403 Stainless Steel 904L Butt Weld Cross in India, Stainless Steel 1.4539 Buttweld Pipe Fittings Chennai, SS 904L Butt Weld Pipe Cap Chennai, Stainless Steel 904L Eccentric Reducer Chennai, Stainless Steel 904L Equal Tee India, 904L Stainless Steel Reducer in Chennai, SS 904L SR Elbow Exporter in India,
Application Industry of Stainless Steel 904L Buttweld Fittings
Buttweld Fittings of Stainless Steel 904L find extensive usage where better corrosion resistance is needed for performing duties in harsh environments. Some of these include chemical processing plants, acid manufacturing and storage facilities, seawater systems, pulp & paper mills, heat exchangers, and pharmaceutical manufacturing plants. Their resistance to harsh acids, e.g., sulfuric, phosphoric, and acetic acid, also qualifies them for piping systems that have exposure to heavy chemicals. The fittings guarantee leak-free, tough connections and a long service life, qualifying them as a dependable option for severe process applications where corrosion and contamination are to be avoided.
