Stainless Steel 316Ti Forged Fittings Manufacturer and Supplier in Chennai, India
Meet Fittings, based in Chennai, India, is a trusted manufacturer and supplier of premium luxury fittings. We specialize in Stainless Steel 316Ti Forged Fittings, engineered for superior durability and corrosion resistance across diverse industrial applications. Our cutting-edge products adhere to international standards, ensuring precision and dependability. Dedicated to excellence, we also offer custom-designed solutions that perform exceptionally well even in the harshest environments. Choose Meet Fittings for unmatched quality, competitive pricing, and timely delivery to support your business needs.
Table of Contents
Stainless Steel 316Ti Threaded Fitting Price List in Chennai, UNS S31635 Stainless Steel Forged Fittings Supplier in India, Stainless Steel 316Ti High Pressure Forged Fittings Exporter in Chennai, Stainless Steel 316Ti Hex Plug Supplier in Chennai, SS 316Ti Threaded Pipe Elbow Exporter in Chennai, SS UNS S31635 Pipe Nipple Size Chart, Stainless Steel 316Ti Forged Fittings Price in India, SS 316Ti Screwed Fittings in Chennai, Stainless Steel 1.4571 Forged Fittings Supplier in Chennai, Stainless Steel 316Ti Hexagonal Plug Stockist in India, Stainless Steel 316Ti Forged Fittings Exporter in India
Stainless Steel 316Ti Forged Fittings Specification
| Standards | ASTM A182 / ASME SA182 |
| Specifications | ASME 16.11, MSS SP-79, 83, 95, 97, BS 3799 |
| Size Range | NPS 1/8″- 4″ (DN 6~100) |
| Pressure | Threaded End – 2000/3000/6000 LBS. Socket weld End – 3000/6000/9000 LBS. |
| Type | Socket Weld, Screwed, BSP Threaded & NPT Threaded |
Stainless Steel 316Ti forged fittings are made of austenitic alloy with the addition of titanium for corrosion resistance, especially in high-temperature environments This material contains iron, chromium (16-18%), nickel (10-14). %), molybdenum (2 -3%), titanium ( and 0.5-1.0%), making it strong and durable Improved This alloy retains high tensile strength, good weldability and stress corrosion crack resistance, making it ideal for chemical, petrochemical and marine applications It has excellent formability at high temperatures and oxidation resistance, ensuring reliability in internal conditions is in the strong.
Stainless Steel 316Ti Forged Fittings Chemical Compostion
| Grade | C | Mn | Si | P | S | Cr | Mo | Ni | Fe |
| SS 316Ti | 0.08 max | 2.0 max | 0.75 max | 0.045 max | 0.030 max | 16.00 – 18.00 | 2.00 – 3.00 | 10.00 – 14.00 | 68.395 min |
Stainless Steel 316Ti Forged Fittings Mechanical Properties
| Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| 8.0 g/cm3 | 1399 °C (2550 °F) | Psi – 75000 , MPa – 515 | Psi – 30000 , MPa – 205 | 35 % |
SS 316Ti Socket Weld Fittings Exporter in India, DIN 1.4571 Stainless Steel Union Price List in Chennai, Stainless Steel 316Ti Forged Fittings Supplier in India, ANSI B16.11 Stainless Steel 316Ti Forged Fittings Exporter in Chennai, Stainless Steel 316Ti Forged Elbow Exporter in Chennai, Stainless Steel 316Ti Forged Tee in India, SS 316Ti Socket Weld Fittings Size Chart, Stainless Steel 316Ti Coupling Price in India, UNS S31635 Stainless Steel Forged Threaded 90 deg. Elbow Weight Chart, Stainless Steel 316Ti Stainless Steel Cross Trader Supplier in Chennai, Stainless Steel 316Ti Socket weld Fittings Stockist in India
Largest Stainless Steel 316Ti Forged Fittings Supplier in Chennai, India
Meet Fittings is a leading supplier of Stainless Steel 316Ti Forged Fittings in Chennai, India. We offer an extensive range of Stainless Steel 316Ti Forged Fittings, renowned for their excellent corrosion resistance and high strength, which makes them perfect for demanding industrial applications like chemical processing, marine environments, and high-temperature systems. With a commitment to quality and reliable delivery, we ensure our clients receive top-tier products tailored to meet the specific needs of various industries.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
If You Are Looking To Buy High Quality
Stainless Steel 316Ti Forged Fittings Equivalent Grade
| STANDARD | WERKSTOFF NR. | UNS | JIS | BS | GOST | AFNOR | EN |
| SS 316Ti | 1.4571 | S31635 | SUS 316Ti | 320S31 | 08Ch17N13M2T | Z6CNDT17‐123 | X6CrNiMoTi17-12-2 |
Why Choose Stainless Steel 316Ti Forged Fittings from Meet Fittings?
Choose Stainless Steel 316Ti Forged Fittings from Meet Fittings for superior quality, exceptional corrosion resistance, and reliable performance in extreme conditions. We offer customized solutions backed by expert support and industry experience.
Stainless Steel UNS S31635 Full Coupling Exporter in India, SS 316Ti Forged Socket weld Fittings Sizes in mm, Stainless Steel 316Ti Forged Fittings Manufacturer in Chennai, Stainless Steel DIN 1.4571 Threaded Fittings Supplier in Chennai, ASME SA182 Stainless Steel 316Ti Forged Fittings Price List in Chennai, SUS 316Ti Forged Union Distributor in Chennai, SS UNS S31635 Forged Fittings Supplier in Chennai, Stainless Steel 316Ti Forged Cap Distributor in India
Customer Support
Largest Inventory
On Time Deliveries
ISO Certified
Stainless steel 316Ti forged fittings provide numerous benefits, particularly outstanding corrosion resistance in demanding environments like the chemical and marine industries. The addition of titanium boosts durability and reduces sensitivity during welding, making these fittings well-suited for high-temperature applications. They also offer excellent tensile strength, ensuring durability and reliability under stress. With superior resistance to pitting, crevice corrosion, and stress corrosion cracking, they excel in harsh conditions. Additionally, their excellent formability and weldability make them perfect for complex piping systems, delivering long-lasting, maintenance-free performance.

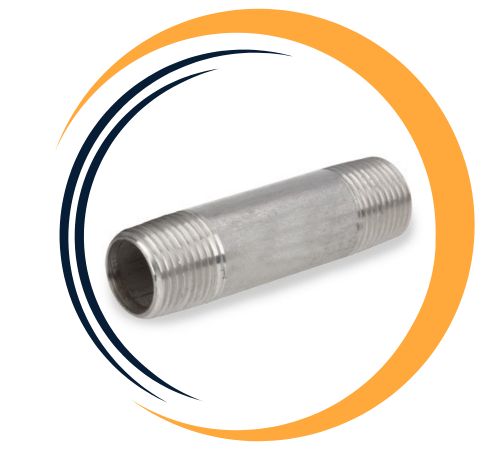

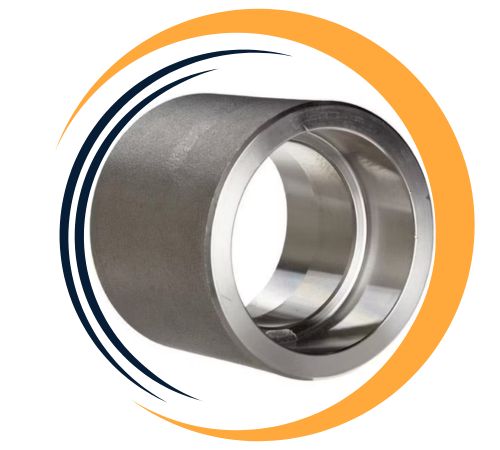

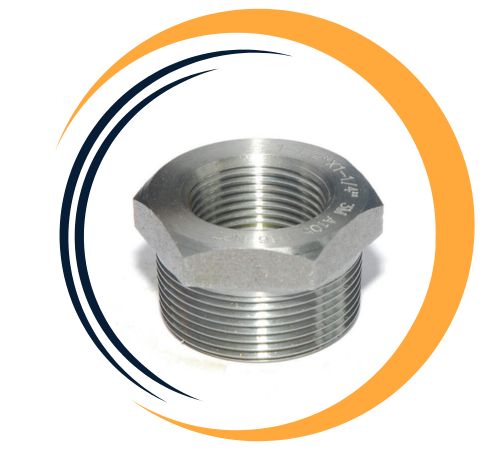

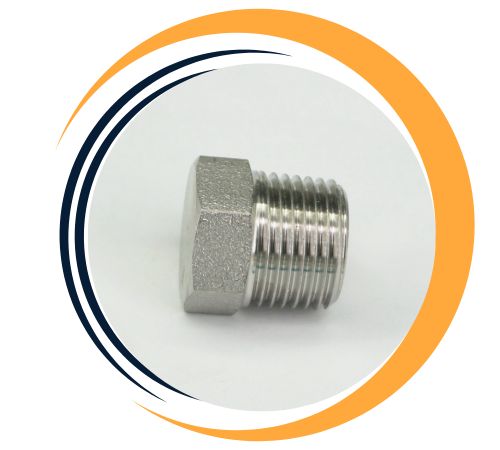

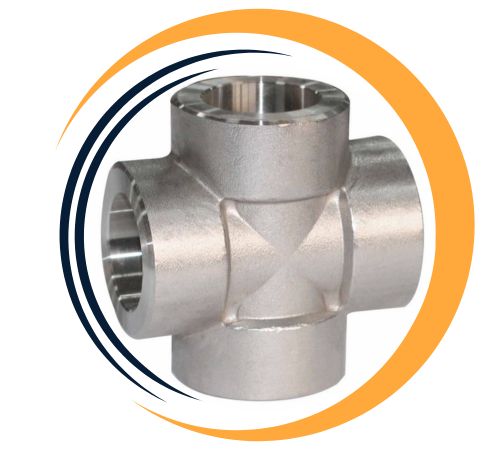

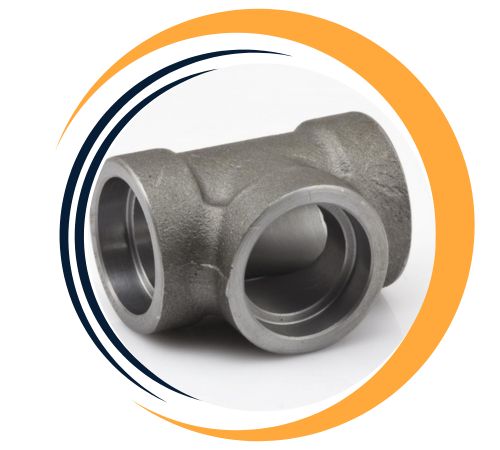

Types of Stainless Steel 316Ti Forged Fittings
Are Custom Sizes Available for Stainless Steel 316Ti Forged Fittings?
Yes, custom sizes for Stainless Steel 316Ti Forged Fittings are available at Meet Fittings. We offer tailored solutions to meet your specific requirements, ensuring optimal performance for your projects. For more information, please contact us at sales@meetfitings.co.in
Dimension of SS 316Ti Forged Fittings
| ASME b16.9 Fittings Normal Pipe Size | ANSI b16 9 Pipe Fitting O D Y | Wall Thickness T (Pipe Elbow Sch.) | LR 45 Deg Elbows Centre to Face B | SR 45 Deg Elbows Weight | LR 90 Deg Elbows Centre to Face A | LR 90 Deg Elbows Weight In Below | SR 90 Deg Elbows Centre to Face A | SR 90 Deg Elbows Weight In Below | ||
| mm | inch | mm | mm | Schedule | mm | kg | mm | kg | mm | kg |
| 15 | 1/2” | 21.3 | 2.78 | STD | 15.9 | 0.04 | 38.1 | 0.08 | – | – |
| 3.73 | X.S | 15.9 | 0.05 | 38.1 | 0.10 | – | – | |||
| 20 | 3/4” | 26.7 | 2.87 | STD | 11.1 | 0.04 | 28.6 | 0.08 | – | – |
| 3.91 | X.S | 11.1 | 0.05 | 28.6 | 0.11 | – | – | |||
| 25 | 1” | 33.4 | 3.38 | STD | 22.2 | 0.09 | 38.1 | 0.15 | 25.4 | 0.11 |
| 4.55 | X.S | 22.2 | 0.11 | 38.1 | 0.19 | 25.4 | 0.14 | |||
| 32 | 11/4” | 42.2 | 3.56 | STD | 25.4 | 0.14 | 47.6 | 0.28 | 31.75 | 0.18 |
| 4.85 | X.S | 25.4 | 0.2 | 47.6 | 0.39 | 31.75 | 0.24 | |||
| 40 | 11/2” | 48.3 | 3.68 | STD | 28.6 | 0.2 | 57.1 | 0.4 | 38.1 | 0.26 |
| 5.08 | X.S | 28.6 | 0.25 | 57.1 | 0.5 | 38.1 | 0.35 | |||
| 50 | 2” | 60.3 | 3.91 | STD | 34.9 | 0.36 | 76.2 | 0.72 | 50.8 | 0.5 |
| 5.54 | X.S | 34.9 | 0.5 | 76.2 | 1.0 | 50.8 | 0.68 | |||
| 65 | 21/2” | 73.0 | 5.16 | STD | 44.4 | 0.73 | 95.2 | 1.46 | 63.5 | 0.95 |
| 7.01 | X.S | 44.4 | 0.91 | 95.2 | 1.82 | 63.5 | 1.27 | |||
| 80 | 3” | 88.9 | 5.49 | STD | 50.8 | 1.1 | 114.3 | 2.18 | 76.2 | 1.45 |
| 7.62 | X.S | 50.8 | 1.45 | 114.3 | 2.86 | 76.2 | 1.95 | |||
| 100 | 4” | 114.3 | 6.02 | STD | 63.5 | 2.1 | 152.4 | 4.2 | 101.6 | 2.8 |
| 8.56 | X.S | 63.5 | 2.9 | 152.4 | 5.7 | 101.6 | 3.9 | |||
| 125 | 5” | 141.3 | 6.65 | STD | 79.4 | 3.4 | 190.0 | 6.8 | 127.0 | 4.8 |
| 9.5 | X.S | 79.4 | 5.0 | 190.0 | 10.0 | 127.0 | 6.5 | |||
| 150 | 6” | 168.3 | 7.11 | STD | 95.2 | 5.1 | 229.0 | 10.1 | 152.4 | 6.8 |
| 10.97 | X.S | 95.2 | 7.7 | 229.0 | 15.3 | 152.4 | 10.2 | |||
| 200 | 8” | 219.1 | 8.18 | STD | 127.0 | 10.2 | 305.0 | 20.4 | 203.0 | 13.6 |
| 12.7 | X.S | 127.0 | 15.5 | 305.0 | 30.9 | 203.0 | 20.9 | |||
| 250 | 10” | 273.9 | 9.27 | STD | 159.0 | 18.1 | 381.0 | 36.1 | 254.0 | 24.1 |
| 12.7 | X.S | 159.0 | 24.4 | 381.0 | 48.8 | 254.0 | 32.5 | |||
| 300 | 12” | 323.9 | 9.52 | STD | 190.0 | 26.6 | 457.0 | 53.1 | 305.0 | 35.4 |
| 12.7 | X.S | 190.0 | 35.0 | 457.0 | 70.0 | 305.0 | 46.7 | |||
| 350 | 14” | 355.6 | 9.52 | STD | 222.0 | 34.1 | 533.0 | 68.1 | 356.0 | 45.4 |
| 12.7 | X.S | 222.0 | 45.0 | 533.0 | 90.0 | 356.0 | 60.0 | |||
| 400 | 16” | 406.4 | 9.52 | STD | 254.0 | 45.0 | 610.0 | 89.3 | 406.0 | 59.5 |
| 12.7 | X.S | 254.0 | 59.0 | 610.0 | 118.0 | 406.0 | 78.7 | |||
| 450 | 18” | 457.0 | 9.52 | STD | 286.0 | 56.5 | 686.0 | 113.0 | 457.0 | 75.6 |
| 12.7 | X.S | 286.0 | 75.0 | 686.0 | 150.0 | 457.0 | 100.0 | |||
| 500 | 20” | 508.0 | 9.52 | STD | 318.0 | 85.0 | 762.0 | 140.0 | 508.0 | 93.5 |
| 12.7 | X.S | 318.0 | 112.5 | 762.0 | 186.0 | 508.0 | 124.0 | |||
| 600 | 24” | 610.00 | 9.52 | STD | 381.0 | 101.5 | 914.0 | 203.0 | 610.0 | 135.0 |
| 12.7 | X.S | 381.0 | 134.5 | 914.0 | 269.0 | 610.0 | 179.0 | |||
Size of Stainless Steel 316Ti Forged Fittings
| NPS (inch) | Pipe Schedule. | OD (inch) | Wall Thick. (in) | Temperature | ||||
| 100 Fitting | 200 Fitting | 300 Fitting | 400 Fitting | 500 Fitting | ||||
| Allowable Stress | ||||||||
| 16700 | 16700 | 16700 | 15500 | 14400 | ||||
| 1″ | 40 | 1.315 | 0.133 | 2205 | 2205 | 2205 | 2047 | 1902 |
| 80 | 1.315 | 0.179 | 3061 | 3061 | 3061 | 2841 | 2640 | |
| 160 | 1.315 | 0.250 | 4493 | 4493 | 4493 | 4170 | 3874 | |
| 1 1/2″ | 40 | 1.900 | 0.145 | 1629 | 1629 | 1629 | 1512 | 1404 |
| 80 | 1.900 | 0.200 | 2303 | 2303 | 2303 | 2138 | 1986 | |
| 160 | 1.900 | 0.281 | 3362 | 3362 | 3362 | 3120 | 2899 | |
| 2″ | 40 | 2.375 | 0.154 | 1371 | 1371 | 1371 | 1272 | 1182 |
| 80 | 2.375 | 0.218 | 1985 | 1985 | 1985 | 1843 | 1712 | |
| 160 | 2.375 | 0.344 | 3283 | 3283 | 3283 | 3047 | 2831 | |
| 3″ | 40 | 3.500 | 0.216 | 1301 | 1301 | 1301 | 1208 | 1122 |
| 80 | 3.500 | 0.300 | 1844 | 1844 | 1844 | 1712 | 1590 | |
| 160 | 3.500 | 0.438 | 2787 | 2787 | 2787 | 2587 | 2403 | |
| 4″ | 40 | 4.500 | 0.237 | 1102 | 1102 | 1102 | 1023 | 950 |
| 80 | 4.500 | 0.337 | 1596 | 1596 | 1596 | 1482 | 1377 | |
| 160 | 4.500 | 0.531 | 2611 | 2611 | 2611 | 2424 | 2552 | |
| 5″ | 40 | 5.563 | 0.258 | 965 | 965 | 965 | 896 | 832 |
| 80 | 5.563 | 0.375 | 1428 | 1428 | 1428 | 1325 | 1231 | |
| 160 | 5.563 | 0.625 | 2474 | 2474 | 2474 | 2296 | 2133 | |
| 6″ | 40 | 6.625 | 0.280 | 877 | 877 | 877 | 814 | 756 |
| 80 | 6.625 | 0.432 | 1379 | 1379 | 1379 | 1280 | 1189 | |
| 160 | 6.625 | 0.719 | 2382 | 2382 | 2382 | 2211 | 2054 | |
| 8″ | 40 | 8.625 | 0.322 | 771 | 771 | 771 | 716 | 665 |
| 80 | 8.625 | 0.500 | 1218 | 1218 | 1218 | 1131 | 1050 | |
| 160 | 8.625 | 0.906 | 2298 | 2298 | 2298 | 2133 | 1982 | |
| 10″ | 40 | 10.750 | 0.365 | 699 | 699 | 699 | 649 | 603 |
| 80 | 10.750 | 0.594 | 1159 | 1159 | 1159 | 1075 | 999 | |
| 160 | 10.750 | 1.125 | 2289 | 2289 | 2289 | 2124 | 1974 | |
ASTM A182 SS 316Ti End Cap Supplier in Chennai, Stainless Steel 316Ti Forged Pipe Fittings Weight Chart, Stainless Steel 316Ti Welding Boss Exporter in India, Stainless Steel 316Ti High Pressure Forged Fitting Manufacturer in Chennai, WERKSTOFF NR. 1.4571 Threaded Cross Price List in Chennai, Stainless Steel 316Ti Threaded Fittings Sizes in mm, Stainless Steel 316Ti Forged Fittings Distributor in Chennai, Stainless Steel 316Ti 180 Deg. Street Elbow in India, Stainless Steel 316Ti Forged Tee Distributor in India.
Application Industry of Stainless Steel 316Ti Forged Fittings
Stainless steel 316Ti forged fittings are extensively used in industries that demand high corrosion resistance and strength. They are commonly found in chemical, petrochemical, oil and gas, pharmaceutical, and marine sectors, where exposure to aggressive chemicals, high temperatures, and corrosive environments is critical. These fittings provide secure, corrosion-resistant connections in pipeline systems handling harsh chemicals, acids, and seawater, ensuring exceptional durability. Their robust performance also makes them ideal for applications in food and beverage processing, power generation, and plumbing services, delivering reliable, long-term operation even under challenging conditions.
