Stainless Steel 316L Pipe Fittings Manufacturer and Supplier in Chennai, India
Chennai, India, stands out as a key hub for the manufacturing and supply of **Stainless Steel 316L Pipe Fittings**. These fittings are celebrated for their remarkable corrosion resistance, weldability, and durability, especially in harsh and high-purity environments. The 316L grade is a low-carbon variant of SS 316, crafted specifically to reduce carbide precipitation during welding. This makes it a top choice for applications that deal with corrosive substances and high temperatures. In Chennai, manufacturers offer a diverse selection of fittings, including elbows, tees, reducers, stub ends, and caps, all produced in line with ASTM A403 and ASME B16.9 standards. These fittings find extensive use across various industries, such as chemical processing, pharmaceuticals, marine, and food processing.
Table of Contents
Stainless Steel 316L Pipe Fittings Price List in Chennai, Stainless Steel DIN 1.4404 Pipes Fittings Supplier in India, UNS S31604 Stainless Steel Pipe Fittings Dealer in Chennai, ANSI B16.28 Welded Pipe Fittings Supplier in Chennai, ASME B16.28 90 Deg. Elbow Exporter in Chennai, Stainless Steel 316L Swage Nipple Size Chart, Stainless Steel DIN 1.4404 Long Radius Bend Price in India, Stainless Steel 316L Equal Cross Thickness, Stainless Steel 316L 45° Eccentric Reducer Supplier in Chennai, ANSI B16.28 90 Deg Elbow Stockist in India, Stainless Steel 316L End Pipe Cap Exporter in India
Stainless Steel 316L Pipe Fittings Specification
| Dimensions | ASME B16.28, MSS-SP-43, ASME/ANSI B16.9, BS4504, BS10, BS4504, BS1560, |
|---|---|
| Thickness | SCH10, SCH 80, SCH 100, SCH20, SCH30, STD SCH40, SCH 160, XXS, SCH60, XS, SCH 120, SCH 140, available with NACE MR 01-75 |
| Type | DN15-DN1200 |
| Connection | Welding |
| Bending Radius | R=2D, 3D, 5D, 6D, 8D, 1D, 10D or Custom |
| Manufacturing process | Press, Forge, Push, Cast, etc. |
| Specialized manufacturer of | Tees, Crosses, Reducers, 90º Elbows, Stub End, Pipe Bend, 45º Elbows, Pipe Cap |
When it comes to composition, **Stainless Steel 316L Pipe Fittings** contain 16–18% chromium, 10–14% nickel, and 2–3% molybdenum, with a maximum carbon content of just 0.03%. The inclusion of molybdenum significantly boosts resistance to pitting and crevice corrosion, particularly in environments rich in chlorides. These fittings boast a tensile strength of around 485 MPa and a yield strength of 170 MPa. Thanks to their low carbon content, they resist sensitization during welding, ensuring long-lasting protection against corrosion. SS 316L also offers excellent mechanical strength, thermal stability, and is non-magnetic when annealed, making it perfect for critical process systems.
Stainless Steel 316L Pipe Fittings Chemical Composition
| Grade | C | Mn | Si | P | S | Cr | Mo | Ni | Fe |
| SS 316L | 0.035 max | 2.0 max | 1.0 max | 0.045 max | 0.030 max | 16.00 – 18.00 | 2.00 – 3.00 | 10.00 – 14.00 | 68.89 min |
Stainless Steel 316L Pipe Fittings Mechanical and Physical Properties
| Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| 8.0 g/cm3 | 1399 °C (2550 °F) | Psi – 75000 , MPa – 515 | Psi – 30000 , MPa – 205 | 35 % |
Stainless Steel UNS S31604 TEE Fittings Supplier in Chennai, Stainless Steel 316L Expansion joint Weight Chart, UNS S31604 Stainless Steel 45 Degree Elbow Exporter in India, Stainless Steel 316L Reducers Manufacturer in Chennai, Stainless Steel 316L Swage Nipple Price List in Chennai, Stainless Steel UNS S31604 Cross Fittings Sizes in mm, Stainless Steel 1.4404 Four Way Fittings Distributor in Chennai, DIN 1.4404 Stainless Steel Wye Reducing in India, Stainless Steel 316L Barrel Nipples Distributor in India
Largest Stainless Steel 316L Pipe Fittings Supplier in Chennai, India
Meet Fittings one of the largest suppliers of Stainless Steel 316L Pipe Fittings in Chennai, India. We specialize in providing a wide range of high-quality, durable fittings for various industrial applications. Our inventory includes elbows, tees, reducers, couplings, and other essential fittings designed to offer exceptional corrosion resistance and strength. Stainless Steel 316L is known for its cost-effectiveness and excellent mechanical properties, making it ideal for industries such as construction, chemical processing, and food processing. With a commitment to customer satisfaction, timely delivery, and competitive pricing, we are the trusted choice for Stainless Steel 316L Pipe Fittings in the India.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
If You Are Looking To Buy High Quality
Why Choose Stainless Steel 316L Pipe Fittings From Meet Fittings?
Stainless Steel 316L Pipe Fittings from Meet Fittings offer exceptional corrosion resistance, especially in seawater and harsh environments. They are known for their high strength, durability, and resistance to pitting and crevice corrosion, ensuring long-lasting performance. We provide precise manufacturing, quality control, and reliable service for diverse industrial applications.
Stainless Steel 316L Pipe Fittings Equivalent Grade
| STANDARD | WERKSTOFF NR. | UNS | JIS | BS | GOST | AFNOR | EN |
| SS 316L | 1.4404 / 1.4435 | S31603 | SUS 316L | 316S11 / 316S13 | 03Ch17N14M3 / 03Ch17N14M2 | Z3CND17-11-02 / Z3CND18-14-03 | X2CrNiMo17-12-2 / X2CrNiMo18-14-3 |
ASME B16.28 Stub End Fittings Price List in Chennai, Stainless Steel UNS S31604 Lap Joint Stub End Supplier in India, Stainless Steel DIN 1.4404 Pipes Fittings Exporter in Chennai, DIN 1.4404 Stainless Steel Tee Reducer Exporter in India, Stainless Steel 316L Stub End Exporter in Chennai, Stainless Steel 316L Equal Cross in India, Stainless Steel 316L Long Radius Elbow Size Chart, 316L Stainless Steel Outlet Tee Fittings Price in India, ASTM A403 WP316L Tee Weight Chart, Stainless Steel 316L Outlet Elbow Supplier in Chennai, WNR 1.4404 Stainless Steel 316L Pipe Fittings Stockist in India, Stainless Steel 316L 45° Elbows Supplier in India
Customer Support
Largest Inventory
On Time Deliveries
ISO Certified
SS 316L Pipe Fittings offer exceptional corrosion resistance, particularly in chloride-rich environments, making them ideal for marine, chemical, and food processing industries. The low carbon content enhances weldability and reduces the risk of carbide precipitation, ensuring excellent performance in high-temperature applications. These fittings are highly durable, resistant to pitting, crevice corrosion, and stress corrosion cracking. They also maintain strength and integrity in aggressive environments, offering long-lasting reliability. Stainless Steel 316L fittings are easy to fabricate, install, and maintain, making them a trusted choice for demanding industrial applications.

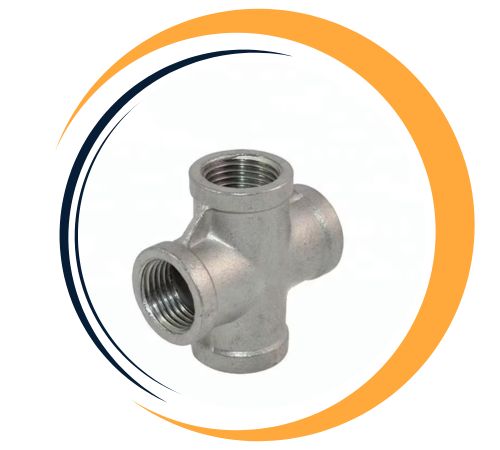

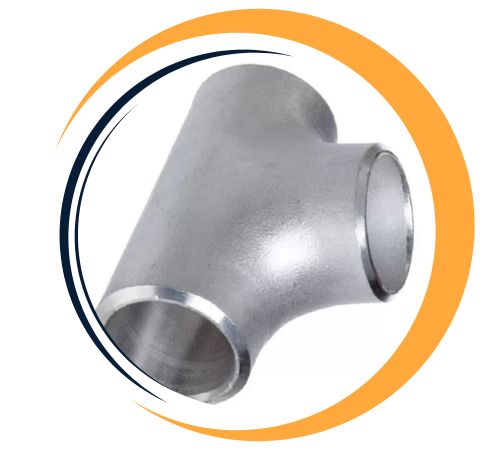

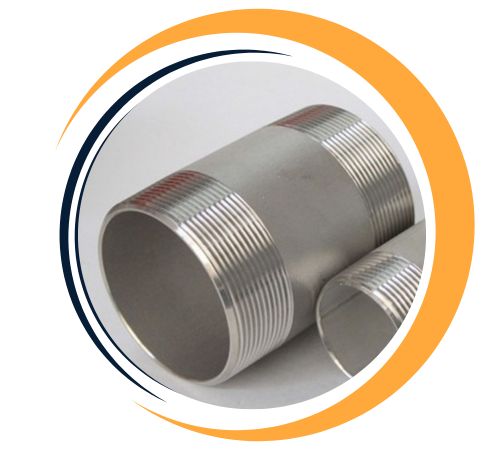

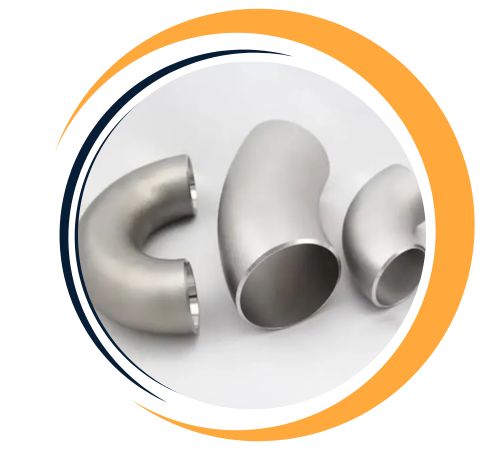

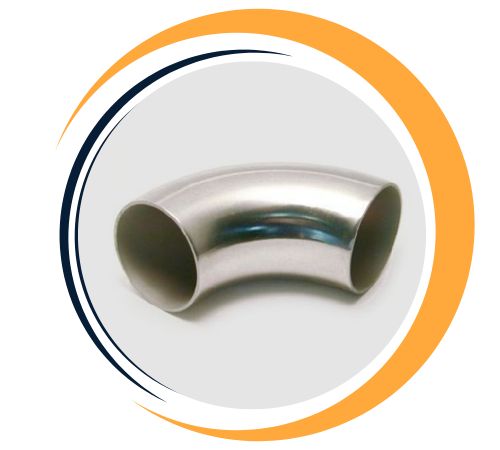

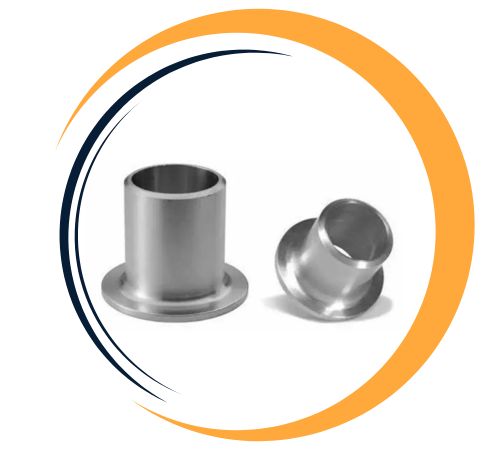

Types of Stainless Steel 316L Pipe Fittings
Stainless Steel 316L Pipe Fittings Dimensions
| Nom. Pipe Size | 90° Elbows | 45° Elbows | 180° Return Bends | Tees | Lap Joint Stub Ends | Caps | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Long Rad. | Short Rad. | 3R | Long Rad. | 3R | Long Rad. | Short Rad. | C | M | F | G | R | E | |||
| A | A | A | B | B | O | K | O | K | |||||||
| ½ | 1.50 | – | – | 0.62 | – | 3.00 | 1.88 | – | – | 1.00 | 1.00 | 3.00 | 1.38 | 0.12 | 1.00 |
| ¾ | 1.50 | – | – | 0.75 | – | 3.00 | 2.00 | – | – | 1.12 | 1.12 | 3.00 | 1.69 | 0.12 | 1.00 |
| 1 | 1.50 | 1.00 | – | 0.88 | – | 3.00 | 2.19 | 2.00 | 1.62 | 1.50 | 1.50 | 4.00 | 2.00 | 0.12 | 1.50 |
| 1¼ | 1.88 | 1.25 | – | 1.00 | – | 3.75 | 2.75 | 2.50 | 2.06 | 1.88 | 1.88 | 4.00 | 2.50 | 0.19 | 1.50 |
| 1½ | 2.25 | 1.50 | – | 1.12 | – | 4.50 | 3.25 | 3.00 | 2.44 | 2.25 | 2.25 | 4.00 | 2.88 | 0.25 | 1.50 |
| 2 | 3.00 | 2.00 | 6.00 | 1.38 | 2.50 | 6.00 | 4.19 | 4.00 | 3.19 | 2.50 | 2.50 | 6.00 | 3.62 | 0.31 | 1.50 |
| 2½ | 3.75 | 2.50 | 7.50 | 1.75 | 3.12 | 7.50 | 5.19 | 5.00 | 3.94 | 3.00 | 3.00 | 6.00 | 4.12 | 0.31 | 1.50 |
| 3 | 4.50 | 3.00 | 9.00 | 2.00 | 3.75 | 9.00 | 6.25 | 6.00 | 4.75 | 3.38 | 3.38 | 6.00 | 5.00 | 0.38 | 2.00 |
| 3½ | 5.25 | 3.50 | 10.50 | 2.25 | – | 10.50 | 7.25 | 7.00 | 5.50 | 3.75 | 3.75 | 6.00 | 5.50 | 0.38 | 2.50 |
| 4 | 6.00 | 4.00 | 12.00 | 2.50 | 5.00 | 12.00 | 8.25 | 8.00 | 6.25 | 4.12 | 4.12 | 6.00 | 6.19 | 0.44 | 2.50 |
| 5 | 7.50 | 5.00 | 15.00 | 3.12 | – | 15.00 | 10.31 | 10.00 | 7.75 | 4.88 | 4.88 | 8.00 | 7.31 | 0.44 | 3.00 |
| 6 | 9.00 | 6.00 | 18.00 | 3.75 | 7.44 | 18.00 | 12.31 | 12.00 | 9.31 | 5.62 | 5.62 | 8.00 | 8.50 | 0.50 | 3.50 |
| 8 | 12.00 | 8.00 | 24.00 | 5.00 | 9.94 | 24.00 | 16.31 | 16.00 | 12.31 | 7.00 | 7.00 | 8.00 | 10.62 | 0.50 | 4.00 |
| 10 | 15.00 | 10.00 | 30.00 | 6.25 | 12.44 | 30.00 | 20.38 | 20.00 | 15.38 | 8.50 | 8.50 | 10.00 | 12.75 | 0.50 | 5.00 |
| 12 | 18.00 | 12.00 | 36.00 | 7.50 | 14.88 | 36.00 | 24.38 | 24.00 | 18.38 | 10.00 | 10.00 | 10.00 | 15.00 | 0.50 | 6.00 |
| 14 | 21.00 | 14.00 | 42.00 | 8.75 | 17.38 | 42.00 | 28.00 | 28.00 | 21.00 | 11.00 | 11.00 | 12.00 | 16.25 | 0.50 | 6.50 |
| 16 | 24.00 | 16.00 | 48.00 | 10.00 | 19.88 | 48.00 | 32.00 | 32.00 | 24.00 | 12.00 | 12.00 | 12.00 | 18.50 | 0.50 | 7.00 |
| 18 | 27.00 | 18.00 | 54.00 | 11.25 | 22.38 | 54.00 | 36.00 | 36.00 | 27.00 | 13.50 | 13.50 | 12.00 | 21.00 | 0.5 | 8.00 |
| 20 | 30.00 | 20.00 | 60.00 | 12.50 | 24.88 | 60.00 | 40.00 | 40.00 | 30.00 | 15.00 | 15.00 | 12.00 | 23.00 | 0.50 | 9.00 |
| 22 | 33.00 | 22.00 | 66.00 | 13.50 | 27.31 | 66.00 | 44.00 | 44.00 | 33.00 | 16.50 | 16.50 | 12.00 | 25.25 | 0.50 | 10.00 |
| 24 | 36.00 | 24.00 | 72.00 | 15.00 | 29.81 | 72.00 | 48.00 | 48.00 | 36.00 | 17.00 | 17.00 | 12.00 | 27.25 | 0.50 | 10.50 |
| 26 | 39.00 | – | 78.00 | 16.00 | 32.31 | – | – | – | – | 19.50 | 19.50 | – | – | – | 10.50 |
| 28 | 42.00 | – | 84.00 | 17.25 | 34.75 | – | – | – | – | 20.50 | 20.50 | – | – | – | 10.50 |
| 30 | 45.00 | – | 90.00 | 18.50 | 37.25 | – | – | – | – | 22.00 | 22.00 | – | – | – | 10.50 |
| 32 | 48.00 | – | – | 19.75 | – | – | – | – | – | 23.50 | 23.50 | – | – | – | 10.50 |
| 34 | 51.00 | – | 102.00 | 21.00 | 42.25 | – | – | – | – | 25.00 | 25.00 | – | – | – | 10.50 |
| 36 | 54.00 | – | 108.00 | 22.25 | 44.69 | – | – | – | – | 26.50 | 26.50 | – | – | – | 10.50 |
| 38 | 57.00 | – | 114.00 | 23.62 | 47.25 | – | – | – | – | 28.00 | 28.00 | – | – | – | 12.00 |
| 40 | 60.00 | – | 120.00 | 24.88 | 49.75 | – | – | – | – | 29.50 | 29.50 | – | – | – | 12.00 |
| 42 | 63.00 | – | 126.00 | 26.00 | 52.19 | – | – | – | – | 30.00 | 28.00 | – | – | – | 12.00 |
| 44 | 66.00 | – | 132.00 | 27.38 | 54.69 | – | – | – | – | 32.00 | 30.00 | – | – | – | 13.50 |
| 46 | 69.00 | – | 138.00 | 28.62 | 57.19 | – | – | – | – | 33.50 | 31.50 | – | – | – | 13.50 |
| 48 | 72.00 | – | 144.00 | 29.88 | 59.69 | – | – | – | – | 35.00 | 33.00 | – | – | – | 13.50 |
Are Custom Sizes Available for Stainless Steel 316L Pipe Fittings?
Yes, custom sizes are available for Stainless Steel 316L Pipe Fittings to meet specific requirements. We offer tailored solutions to ensure precise fit and performance for various applications. For more information, please contact us at sales@meetfitings.co.in.
Stainless Steel 316L Short Radius Elbow Sizes in mm, ASME B16.28 90 Deg. Elbow Manufacturer in Chennai, Stainless Steel UNS S31604 Pipe Fittings Thickness, Stainless Steel 316L Pipe Fittings Supplier in Chennai, Stainless Steel 316L Eccentric Reducer Exporter in India, Stainless Steel 316L Cross Fittings Price List in Chennai, ASTM A403 WP316L Stainless Steel 316L Stub End Distributor in Chennai, Stainless Steel UNS S31604 Pipe Fittings Supplier in Chennai, Stainless Steel 316L Outlet Elbow Distributor in India
Size Chart of Stainless Steel 316L Pipe Fittings
| NPS (inch) | Pipe Sch. | Wall Thk. (in) | OD (inch) | Temperature | ||||
|---|---|---|---|---|---|---|---|---|
| 100 | 200 | 300 | 400 | 500 | ||||
| Allowable Stress (Pressure Rating) | ||||||||
| 16700 | 16700 | 16700 | 15500 | 14400 | ||||
| 1″ | 40 | 0.133 | 1.315 | 2205 | 2205 | 2205 | 2047 | 1902 |
| 80 | 0.179 | 1.315 | 3061 | 3061 | 3061 | 2841 | 2640 | |
| 160 | 0.250 | 1.315 | 4493 | 4493 | 4493 | 4170 | 3874 | |
| 1 1/2″ | 40 | 0.145 | 1.900 | 1629 | 1629 | 1629 | 1512 | 1404 |
| 80 | 0.200 | 1.900 | 2303 | 2303 | 2303 | 2138 | 1986 | |
| 160 | 0.281 | 1.900 | 3362 | 3362 | 3362 | 3120 | 2899 | |
| 2″ | 40 | 0.154 | 2.375 | 1371 | 1371 | 1371 | 1272 | 1182 |
| 80 | 0.218 | 2.375 | 1985 | 1985 | 1985 | 1843 | 1712 | |
| 160 | 0.344 | 2.375 | 3283 | 3283 | 3283 | 3047 | 2831 | |
| 3″ | 40 | 0.216 | 3.500 | 1301 | 1301 | 1301 | 1208 | 1122 |
| 80 | 0.300 | 3.500 | 1844 | 1844 | 1844 | 1712 | 1590 | |
| 160 | 0.438 | 3.500 | 2787 | 2787 | 2787 | 2587 | 2403 | |
| 4″ | 40 | 0.237 | 4.500 | 1102 | 1102 | 1102 | 1023 | 950 |
| 80 | 0.337 | 4.500 | 1596 | 1596 | 1596 | 1482 | 1377 | |
| 160 | 0.531 | 4.500 | 2611 | 2611 | 2611 | 2424 | 2552 | |
| 5″ | 40 | 0.258 | 5.563 | 965 | 965 | 965 | 896 | 832 |
| 80 | 0.375 | 5.563 | 1428 | 1428 | 1428 | 1325 | 1231 | |
| 160 | 0.625 | 5.563 | 2474 | 2474 | 2474 | 2296 | 2133 | |
| 6″ | 40 | 0.280 | 6.625 | 877 | 877 | 877 | 814 | 756 |
| 80 | 0.432 | 6.625 | 1379 | 1379 | 1379 | 1280 | 1189 | |
| 160 | 0.719 | 6.625 | 2382 | 2382 | 2382 | 2211 | 2054 | |
| 8″ | 40 | 0.322 | 8.625 | 771 | 771 | 771 | 716 | 665 |
| 80 | 0.500 | 8.625 | 1218 | 1218 | 1218 | 1131 | 1050 | |
| 160 | 0.906 | 8.625 | 2298 | 2298 | 2298 | 2133 | 1982 | |
| 10″ | 40 | 0.365 | 10.750 | 699 | 699 | 699 | 649 | 603 |
| 80 | 0.594 | 10.750 | 1159 | 1159 | 1159 | 1075 | 999 | |
| 160 | 1.125 | 10.750 | 2289 | 2289 | 2289 | 2124 | 1974 | |
Appllication Industry of Stainless Steel 316L Pipe Fittings
**Stainless Steel 316L Pipe Fittings** are widely utilized in settings that require high corrosion resistance and cleanliness. In the chemical and petrochemical sectors, they are essential for pipelines that transport corrosive acids, alkalis, and solvents. The pharmaceutical and biotech industries depend on SS 316L for sterile processing lines, thanks to its low carbon content and resistance to contamination. In marine applications, these fittings excel in seawater environments. Additionally, they are frequently used in food and beverage processing, wastewater treatment, and the pulp and paper industries, where durability and corrosion resistance are paramount.
