Stainless Steel 309S Pipe Fittings Manufacturer and Supplier in Chennai, India
Chennai, India, has established itself as a reliable center for producing and supplying Stainless Steel 309S Pipe Fittings, serving industries that demand exceptional resistance to heat, oxidation, and corrosion. This low-carbon variant of SS 309 is specifically designed to enhance weldability and minimize the risk of sensitization during high-temperature applications. Manufacturers in Chennai provide a comprehensive selection of pipe fittings—including elbows, tees, reducers, caps, and stub ends—crafted in accordance with ASTM A403 and ASME B16.9 standards. These fittings find extensive use in thermal processing, heat exchangers, power plants, and chemical industries, ensuring dependable performance even at high temperatures.
Table of Contents
Stainless Steel 309S Pipe Fittings Price List in Chennai, Stainless Steel DIN 1.4828 Pipes Fittings Supplier in India, UNS S30908 Stainless Steel Pipe Fittings Dealer in Chennai, ANSI B16.9 Welded Pipe Fittings Supplier in Chennai, ASME SA403 90 Deg. Elbow Exporter in Chennai, Stainless Steel 309S Swage Nipple Size Chart, Stainless Steel DIN 1.4828 Long Radius Bend Price in India, Stainless Steel 309S Equal Cross Thickness, Stainless Steel 309S 45° Eccentric Reducer Supplier in Chennai, ANSI B16.9 90 Deg Elbow Stockist in India, Stainless Steel 309S End Pipe Cap Exporter in India
Stainless Steel 309S Pipe Fittings Specification
| Product | Stainless Steel 309S Pipe Fittings |
| Equivalents | (UNS S30908, 1.4833) |
| Standard | ASTM A403 / ASME SA403 |
| Items | Pipe Fittings |
| Size | Seamless Elbow ( 1/2″～24″), ERW / Welded / Fabricated Elbow (1/2″～48″) |
| Dimensions | ASME / ANSI – B 16.9, ASTM A403 – ASME SA403, ASME B16.9, ASME B16.25, ASME B16.28, MSS SP-43. |
| Schedule | Schedule 5S, 10S, 20S, S10, S20, S30, STD, 40S, S40, S60, XS, 80S, S80, S100, S120, S140, S160, XXS and etc. Custom Thickness |
| Fittings Type | Butt Weld, Screwed & Socket Weld, Flanges, Instrumentation |
| Other Fittings Type | Elbows, Tees, Reducers, Caps, Stub Ends, Flanges (ANSI, Table E, D and H), Nuts, Bolts, Screws, Threaded Bars, Seamless, Welded, Elbow, Tee, Cross, Concentric & Eccentric Reducer, Pipe End Caps, Stub Ends, Bends, Dairy Fittings, etc. |
| Specifications | ASTM, ASME, DIN, GOST, JIS |
| Certification | EN 10204 |
Typically, Stainless Steel 309S Pipe Fittings consist of 22–24% chromium and 12–15% nickel, with a carbon content capped at 0.08%. This unique composition grants them remarkable resistance to oxidation, sulfidation, and various forms of corrosion at temperatures reaching up to 1000°C. They boast a tensile strength of around 520 MPa and a yield strength of approximately 205 MPa. The low carbon content not only improves weldability but also reduces carbide precipitation during welding, which is crucial for preserving corrosion resistance in heat-affected zones. SS 309S also retains good strength, toughness, and formability, whether in hot or cold working conditions.
Stainless Steel 309S Pipe Fittings Chemical Composition
| ELEMENT | SS 309S |
|---|---|
| NI | 12.0 – 15.0 |
| C | 0.08 max |
| MN | 2.0 max |
| P | 0.045 max |
| S | 0.030 max |
| SI | 1.0 max |
| CR | 22.0 – 24.0 |
| MO | 0.75 max |
Stainless Steel 309S Pipe Fittings Mechanical and Physical Properties
| 309 | 309S | |||
|---|---|---|---|---|
| Typical | Minimum | Typical | Minimum | |
| Tensile Strength MPa | 560 | 515 | 540 | 515 |
| Proof Stress(0.2% Offset) MPa | 285 | 205 | 280 | 205 |
| Elongation (Percent in 50mm) | 54 | 40 | 54 | 40 |
| Hardness (Brinell) | 164 | – | 159 | – |
| Endurance (fatigue) limit, MPa | 260 | – | 260 | – |

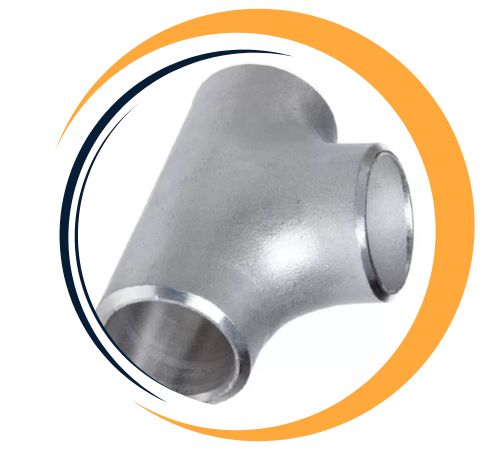

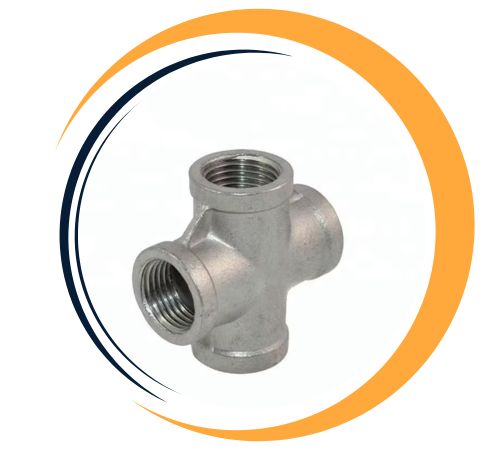

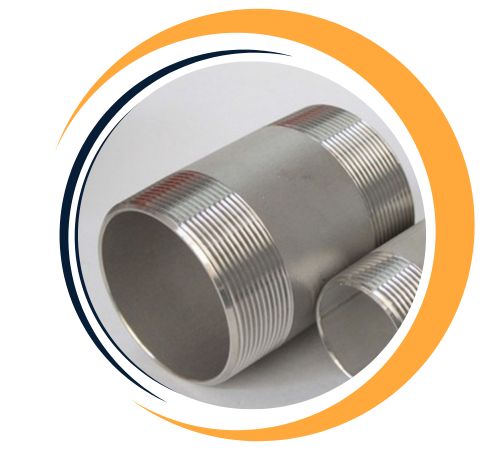

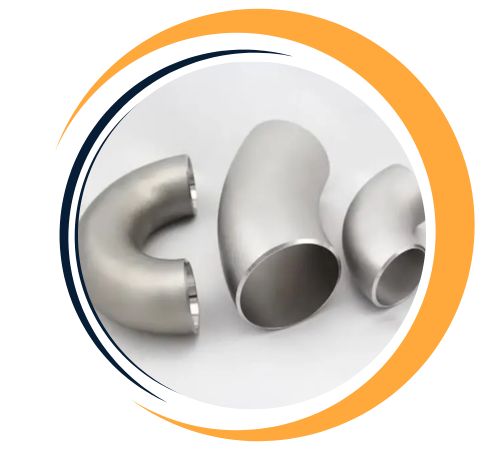

Stainless Steel UNS S30908 TEE Fittings Supplier in Chennai, Stainless Steel 309S Expansion joint Weight Chart, UNS S30908 Stainless Steel 45 Degree Elbow Exporter in India, Stainless Steel 309S Reducers Manufacturer in Chennai, Stainless Steel 309S Swage Nipple Price List in Chennai, Stainless Steel UNS S30908 Cross Fittings Sizes in mm, Stainless Steel 1.4828 Four Way Fittings Distributor in Chennai, DIN 1.4828 Stainless Steel Wye Reducing in India, Stainless Steel 309S Barrel Nipples Distributor in India
Largest Stainless Steel 309S Pipe Fittings Supplier in Chennai, India
Meet Fittings one of the largest suppliers of Stainless Steel 309S Pipe Fittings in Chennai, India. We specialize in providing a wide range of high-quality, durable fittings for various industrial applications. Our inventory includes elbows, tees, reducers, couplings, and other essential fittings designed to offer exceptional corrosion resistance and strength. Stainless Steel 309S is known for its cost-effectiveness and excellent mechanical properties, making it ideal for industries such as construction, chemical processing, and food processing. With a commitment to customer satisfaction, timely delivery, and competitive pricing, we are the trusted choice for Stainless Steel 309S Pipe Fittings in the India.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
If You Are Looking To Buy High Quality
Why Choose Stainless Steel 309S Pipe Fittings From Meet Fittings?
Stainless Steel 309S Pipe Fittings from Meet Fittings offer exceptional corrosion resistance, especially in seawater and harsh environments. They are known for their high strength, durability, and resistance to pitting and crevice corrosion, ensuring long-lasting performance. We provide precise manufacturing, quality control, and reliable service for diverse industrial applications.
Stainless Steel 309S Pipe Fittings Equivalent Grade
| STANDARD | UNS | WERKSTOFF NR. |
|---|---|---|
| SS 309S | S30908 | 1.4828 |

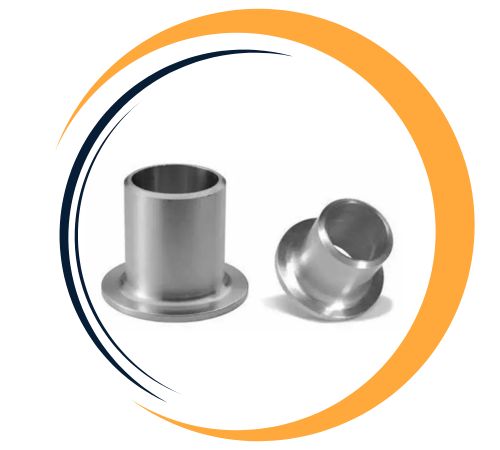

ASME SA403 Stub End Fittings Price List in Chennai, Stainless Steel UNS S30908 Lap Joint Stub End Supplier in India, Stainless Steel DIN 1.4828 Pipes Fittings Exporter in Chennai, DIN 1.4828 Stainless Steel Tee Reducer Exporter in India, Stainless Steel 309S Stub End Exporter in Chennai, Stainless Steel 309S Equal Cross in India, Stainless Steel 309S Long Radius Elbow Size Chart, 309S Stainless Steel Outlet Tee Fittings Price in India, ASTM A403 WP309S Tee Weight Chart, Stainless Steel 309S Outlet Elbow Supplier in Chennai, WNR 1.4828 Stainless Steel 309S Pipe Fittings Stockist in India, Stainless Steel 309S 45° Elbows Supplier in India
Customer Support
Largest Inventory
On Time Deliveries
ISO Certified
Stainless Steel 309S Pipe Fittings offer outstanding heat and oxidation resistance, making them ideal for high-temperature applications up to 1000°C. Their low carbon content enhances weldability, reducing the risk of intergranular corrosion and ensuring long-lasting durability. These fittings exhibit excellent resistance to thermal cycling and are highly resistant to corrosion in both acidic and alkaline environments. They maintain structural integrity under high-pressure conditions and offer superior strength, flexibility, and toughness. Stainless Steel 309S fittings are easy to fabricate, providing reliable and efficient solutions for industries such as petrochemical, power generation, and chemical processing.
Types of Stainless Steel 309S Pipe Fittings
Stainless Steel 309S Pipe Fittings Dimensions
| Nominal PipeSize | Outside Diameter | 90° Elbows | 45° Elbows | 180° Returns | ||||
|---|---|---|---|---|---|---|---|---|
| (inches) | – | Long Radius | Short Radius | Long Radius | Long Radius | |||
| (mm) | (inches) | Center to Face (inches) | Center to Face (inches) | Center to Face (inches) | Radius (inches) | Center to Center (inches) | Back to face (inches) | |
| 1/2 | 21.3 | 0.840 | 1 1/2 | – | 5/8 | 2 | 1 7/8 | |
| 3/4 | 26.7 | 1.050 | 1 1/8 | 7/16 | 2 1/4 | 1 11/16 | ||
| 1 | 33.4 | 1.315 | 1 1/2 | 1 | 7/8 | 3 | 2 3/16 | |
| 1 1/4 | 42.2 | 1.660 | 1 7/8 | 1 1/4 | 1 | 3 3/4 | 2 3/4 | |
| 1 1/2 | 48.3 | 1.900 | 2 1/4 | 1 1/2 | 1 1/8 | 3 | 4 1/2 | 3 1/4 |
| 2 | 60.3 | 2.375 | 3 | 2 | 1 3/8 | 4 | 6 | 4 3/16 |
| 2 1/2 | 73.0 | 2.875 | 3 3/4 | 2 1/2 | 1 3/4 | 5 | 7 1/2 | 5 3/16 |
| 3 | 88.9 | 3.500 | 4 1/2 | 3 | 2 | 6 | 9 | 6 1/4 |
| 3 1/2 | 101.6 | 4.000 | 5 1/4 | 3 1/2 | 2 1/4 | 7 | 10 1/2 | 7 1/4 |
| 4 | 114.3 | 4.500 | 6 | 4 | 2 1/2 | 8 | 12 | 8 1/4 |
| 5 | 141.3 | 5.563 | 7 1/2 | 5 | 3 1/8 | 10 | 15 | 10 5/16 |
| 6 | 168.3 | 6.625 | 9 | 6 | 3 3/4 | 12 | 18 | 12 5/16 |
| 8 | 219.1 | 8.625 | 12 | 8 | 5 | 12 | 24 | 16 5/16 |
| 10 | 273.1 | 10.750 | 15 | 10 | 6 1/4 | 15 | 30 | 20 3/8 |
| 12 | 323.9 | 12.750 | 18 | 12 | 7 1/2 | 18 | 36 | 24 3/8 |
Are Custom Sizes Available for Stainless Steel 309S Pipe Fittings?
Yes, custom sizes are available for Stainless Steel 309S Pipe Fittings to meet specific requirements. We offer tailored solutions to ensure precise fit and performance for various applications. For more information, please contact us at sales@meetfitings.co.in.
Stainless Steel 309S Short Radius Elbow Sizes in mm, ASME SA403 90 Deg. Elbow Manufacturer in Chennai, Stainless Steel UNS S30908 Pipe Fittings Thickness, Stainless Steel 309S Pipe Fittings Supplier in Chennai, Stainless Steel 309S Eccentric Reducer Exporter in India, Stainless Steel 309S Cross Fittings Price List in Chennai, ASTM A403 WP309S Stainless Steel 309S Stub End Distributor in Chennai, Stainless Steel UNS S30908 Pipe Fittings Supplier in Chennai, Stainless Steel 309S Outlet Elbow Distributor in India
Size Chart of Stainless Steel 309S Pipe Fittings
| NPS (inch) | Pipe Sch. | Wall Thk. (in) | OD (inch) | Temperature | ||||
|---|---|---|---|---|---|---|---|---|
| 100 | 200 | 300 | 400 | 500 | ||||
| Allowable Stress (Pressure Rating) | ||||||||
| 16700 | 16700 | 16700 | 15500 | 14400 | ||||
| 1″ | 40 | 0.133 | 1.315 | 2205 | 2205 | 2205 | 2047 | 1902 |
| 80 | 0.179 | 1.315 | 3061 | 3061 | 3061 | 2841 | 2640 | |
| 160 | 0.250 | 1.315 | 4493 | 4493 | 4493 | 4170 | 3874 | |
| 1 1/2″ | 40 | 0.145 | 1.900 | 1629 | 1629 | 1629 | 1512 | 1404 |
| 80 | 0.200 | 1.900 | 2303 | 2303 | 2303 | 2138 | 1986 | |
| 160 | 0.281 | 1.900 | 3362 | 3362 | 3362 | 3120 | 2899 | |
| 2″ | 40 | 0.154 | 2.375 | 1371 | 1371 | 1371 | 1272 | 1182 |
| 80 | 0.218 | 2.375 | 1985 | 1985 | 1985 | 1843 | 1712 | |
| 160 | 0.344 | 2.375 | 3283 | 3283 | 3283 | 3047 | 2831 | |
| 3″ | 40 | 0.216 | 3.500 | 1301 | 1301 | 1301 | 1208 | 1122 |
| 80 | 0.300 | 3.500 | 1844 | 1844 | 1844 | 1712 | 1590 | |
| 160 | 0.438 | 3.500 | 2787 | 2787 | 2787 | 2587 | 2403 | |
| 4″ | 40 | 0.237 | 4.500 | 1102 | 1102 | 1102 | 1023 | 950 |
| 80 | 0.337 | 4.500 | 1596 | 1596 | 1596 | 1482 | 1377 | |
| 160 | 0.531 | 4.500 | 2611 | 2611 | 2611 | 2424 | 2552 | |
| 5″ | 40 | 0.258 | 5.563 | 965 | 965 | 965 | 896 | 832 |
| 80 | 0.375 | 5.563 | 1428 | 1428 | 1428 | 1325 | 1231 | |
| 160 | 0.625 | 5.563 | 2474 | 2474 | 2474 | 2296 | 2133 | |
| 6″ | 40 | 0.280 | 6.625 | 877 | 877 | 877 | 814 | 756 |
| 80 | 0.432 | 6.625 | 1379 | 1379 | 1379 | 1280 | 1189 | |
| 160 | 0.719 | 6.625 | 2382 | 2382 | 2382 | 2211 | 2054 | |
| 8″ | 40 | 0.322 | 8.625 | 771 | 771 | 771 | 716 | 665 |
| 80 | 0.500 | 8.625 | 1218 | 1218 | 1218 | 1131 | 1050 | |
| 160 | 0.906 | 8.625 | 2298 | 2298 | 2298 | 2133 | 1982 | |
| 10″ | 40 | 0.365 | 10.750 | 699 | 699 | 699 | 649 | 603 |
| 80 | 0.594 | 10.750 | 1159 | 1159 | 1159 | 1075 | 999 | |
| 160 | 1.125 | 10.750 | 2289 | 2289 | 2289 | 2124 | 1974 | |
Appllication Industry of Stainless Steel 309S Pipe Fittings
These Stainless Steel 309S Pipe Fittings are widely utilized in settings that involve high heat and corrosive environments. In the power generation and thermal processing sectors, they are integral to furnace components, superheaters, and boiler tubes. The petrochemical industry uses them in flare stacks, catalytic converters, and heat exchangers. Additionally, SS 309S fittings are well-suited for incinerators, kilns, annealing covers, and exhaust systems. Their outstanding resistance to thermal cycling and oxidation makes them perfect for both continuous and intermittent high-temperature service, providing long-lasting reliability and minimizing maintenance needs in challenging industrial applications.
