Stainless Steel 309H Forged Fittings Manufacturer and Supplier in Chennai, India
Based in Chennai, India, we take pride in being a top manufacturer and supplier of Stainless Steel 309H Forged Fittings, celebrated for their outstanding performance in high-temperature and corrosive settings. Crafted to endure thermal stress and oxidation, our 309H forged fittings are perfect for critical applications in the petrochemical, power generation, and heat treatment sectors. Utilizing cutting-edge forging techniques and rigorous quality controls, we offer a diverse range of fittings that meet international standards. Known for our reliability and prompt delivery, we serve both local and global clients with precision-engineered stainless steel solutions.
Table of Contents

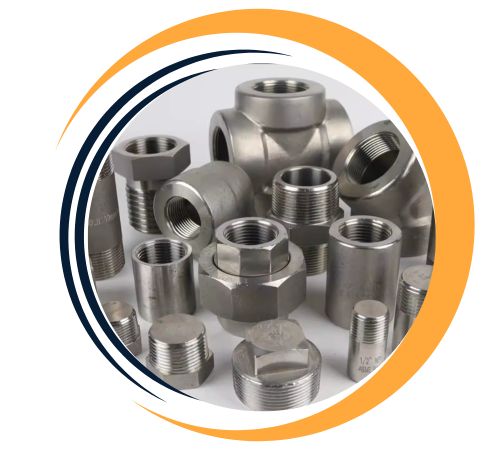

Stainless Steel 309H Threaded Fitting Price List in Chennai, UNS S30909 Stainless Steel Forged Fittings Supplier in India, Stainless Steel 309H High Pressure Forged Fittings Exporter in Chennai, Stainless Steel 309H Hex Plug Supplier in Chennai, SS 309H Threaded Pipe Elbow Exporter in Chennai, SS UNS S30909 Pipe Nipple Size Chart, Stainless Steel 309H Forged Fittings Price in India, SS 309H Screwed Fittings in Chennai, Stainless Steel 1.4833 Forged Fittings Supplier in Chennai, Stainless Steel 309H Hexagonal Plug Stockist in India, Stainless Steel 309H Forged Fittings Exporter in India
Stainless Steel 309H Forged Fittings Specification
| Grade | Stainless Steel 309H |
| Standard | ASTM A182 & ASME SA182 |
| Dimensions | ASME 16.11, MSS SP-79, 83, 95, 97, BS 3799 |
| Size | 1/8” NB to 4” NB (Socketweld & Screwed-Threaded) |
| Class | 2000 LBS, 3000 LBS, 6000 LBS, 9000 LBS |

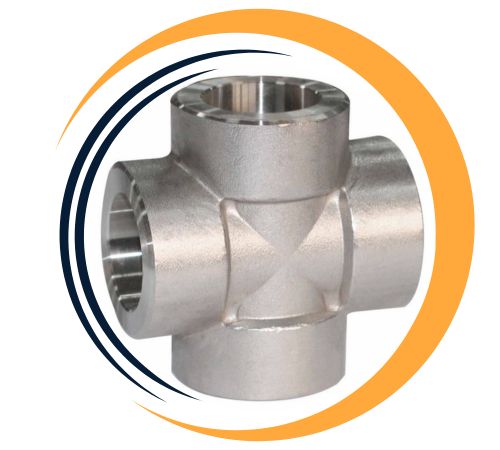

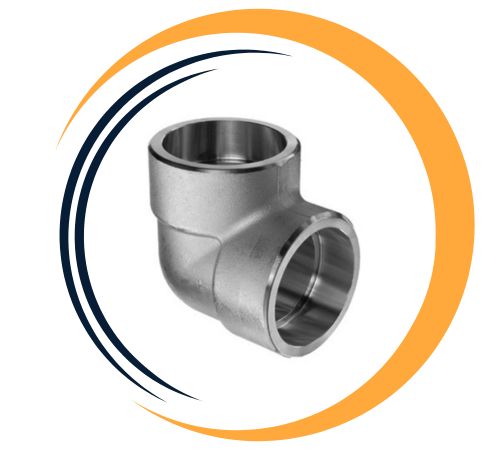

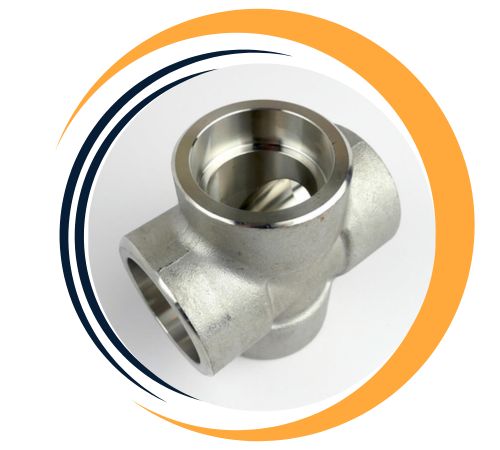

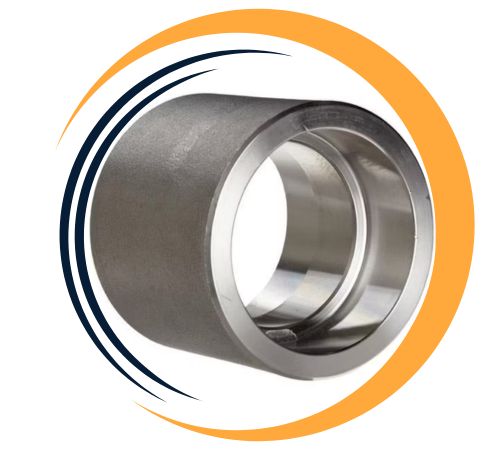

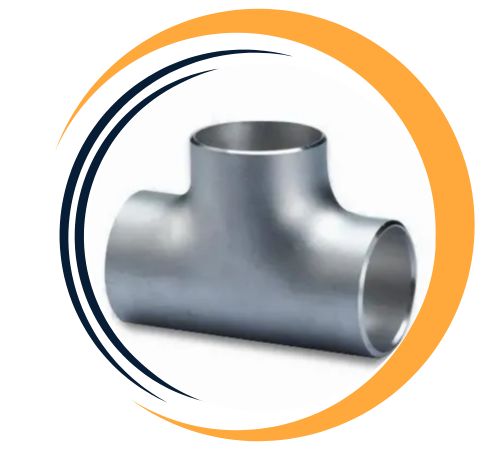

| Form | Socket Weld Elbow, Socket Weld Tee, Socket Weld Cross, Socket Weld Cap, Socket Weld Coupling, Socket Weld Union , Socket Weld Plug, Socket Weld Lateral Tee. |
| Type | Socket Weld Fittings |
Stainless Steel 309H Forged Fittings consist of about 23% chromium and 12% nickel, along with a higher carbon content (0.04–0.10%) to boost high-temperature strength and creep resistance. These fittings excel in resisting oxidation and corrosion at temperatures reaching up to 1000°C. On the mechanical side, they deliver a minimum tensile strength of 550 MPa, yield strength of 205 MPa, and an elongation of 40%. Our product lineup includes forged elbows, tees, couplings, unions, crosses, and caps, all designed for high-pressure and high-temperature piping systems.
Stainless Steel 309H Forged Fittings Chemical Compostion
| ELEMENT | SS 309H |
| NI | 12.0 – 15.0 |
| C | 0.04 – 0.10 |
| MN | 2.0 max |
| P | 0.045 max |
| S | 0.030 max |
| SI | 1.0 max |
| CR | 22.0 – 24.0 |
| MO | – |
Stainless Steel 309H Forged Fittings Mechanical Properties
| Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| 8.0 g/cm3 | 1400 °C (2550 °F) | Psi – 75000 , MPa – 515 | Psi – 30000 , MPa – 205 | 35 % |
SS 309H Socket Weld Fittings Exporter in India, DIN 1.4833 Stainless Steel Union Price List in Chennai, Stainless Steel 309H Forged Fittings Supplier in India, ANSI B16.11 Stainless Steel 309H Forged Fittings Exporter in Chennai, Stainless Steel 309H Forged Elbow Exporter in Chennai, Stainless Steel 309H Forged Tee in India, SS 309H Socket Weld Fittings Size Chart, Stainless Steel 309H Coupling Price in India, UNS S30909 Stainless Steel Forged Threaded 90 deg. Elbow Weight Chart, Stainless Steel 309H Stainless Steel Cross Trader Supplier in Chennai, Stainless Steel 309H Socket weld Fittings Stockist in India
Largest Stainless Steel 309H Forged Fittings Supplier in Chennai, India
Meet Fittings is a leading supplier of Stainless Steel 309H Forged Fittings in Chennai, India. We offer an extensive range of Stainless Steel 309H Forged Fittings, renowned for their excellent corrosion resistance and high strength, which makes them perfect for demanding industrial applications like chemical processing, marine environments, and high-temperature systems. With a commitment to quality and reliable delivery, we ensure our clients receive top-tier products tailored to meet the specific needs of various industries.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
If You Are Looking To Buy High Quality
Stainless Steel 309H Forged Fittings Equivalent Grade
| STANDARD | UNS | WERKSTOFF NR. |
|---|---|---|
| SS 309H | S30909 | 1.4833 |
Why Choose Stainless Steel 309H Forged Fittings from Meet Fittings?
Choose Stainless Steel 309H Forged Fittings from Meet Fittings for superior quality, exceptional corrosion resistance, and reliable performance in extreme conditions. We offer customized solutions backed by expert support and industry experience.
Stainless Steel UNS S30909 Full Coupling Exporter in India, SS 309H Forged Socket weld Fittings Sizes in mm, Stainless Steel 309H Forged Fittings Manufacturer in Chennai, Stainless Steel DIN 1.4833 Threaded Fittings Supplier in Chennai, ASME SA182 Stainless Steel 309H Forged Fittings Price List in Chennai, SUS 309H Forged Union Distributor in Chennai, SS UNS S30909 Forged Fittings Supplier in Chennai, Stainless Steel 309H Forged Cap Distributor in India
Customer Support
Largest Inventory
On Time Deliveries
ISO Certified
Stainless steel 309H forged fittings offer many benefits, including exceptional resistance to high temperature oxidation and corrosion, making them ideal for high temperature applications Their high nickel-chromium content ensures excellent strength, durability , and resists carburization and scaling. These materials exhibit excellent weldability and formability, making them easy to install. They provide long-term reliability in harsh environments, such as power plants and chemical plants. In addition, they offer high mechanical strength, with high strength in creep strength and resistance to thermal expansion, making them suitable for extreme conditions.
Types of Stainless Steel 309H Forged Fittings
Are Custom Sizes Available for Stainless Steel 309H Forged Fittings?
Yes, custom sizes for Stainless Steel 309H Forged Fittings are available at Meet Fittings. We offer tailored solutions to meet your specific requirements, ensuring optimal performance for your projects. For more information, please contact us at sales@meetfitings.co.in
Dimension of SS 309H Forged Fittings
| ASME b16.9 Fittings Normal Pipe Size | ANSI b16 9 Pipe Fitting O D Y | Wall Thickness T (Pipe Elbow Sch.) | LR 45 Deg Elbows Centre to Face B | SR 45 Deg Elbows Weight | LR 90 Deg Elbows Centre to Face A | LR 90 Deg Elbows Weight In Below | SR 90 Deg Elbows Centre to Face A | SR 90 Deg Elbows Weight In Below | ||
|---|---|---|---|---|---|---|---|---|---|---|
| millimeter | inch. | millimeter | millimeter | Schedule | millimeter | kilogram | millimeter | kilogram | millimeter | kilogram |
| 15 | 1/2” | 21.3 | 2.78 | STD | 15.9 | 0.04 | 38.1 | 0.08 | – | – |
| 3.73 | X.S | 15.9 | 0.05 | 38.1 | 0.10 | – | – | |||
| 20 | 3/4” | 26.7 | 2.87 | STD | 11.1 | 0.04 | 28.6 | 0.08 | – | – |
| 3.91 | X.S | 11.1 | 0.05 | 28.6 | 0.11 | – | – | |||
| 25 | 1” | 33.4 | 3.38 | STD | 22.2 | 0.09 | 38.1 | 0.15 | 25.4 | 0.11 |
| 4.55 | X.S | 22.2 | 0.11 | 38.1 | 0.19 | 25.4 | 0.14 | |||
| 32 | 11/4” | 42.2 | 3.56 | STD | 25.4 | 0.14 | 47.6 | 0.28 | 31.75 | 0.18 |
| 4.85 | X.S | 25.4 | 0.2 | 47.6 | 0.39 | 31.75 | 0.24 | |||
| 40 | 11/2” | 48.3 | 3.68 | STD | 28.6 | 0.2 | 57.1 | 0.4 | 38.1 | 0.26 |
| 5.08 | X.S | 28.6 | 0.25 | 57.1 | 0.5 | 38.1 | 0.35 | |||
| 50 | 2” | 60.3 | 3.91 | STD | 34.9 | 0.36 | 76.2 | 0.72 | 50.8 | 0.5 |
| 5.54 | X.S | 34.9 | 0.5 | 76.2 | 1.0 | 50.8 | 0.68 | |||
| 65 | 21/2” | 73.0 | 5.16 | STD | 44.4 | 0.73 | 95.2 | 1.46 | 63.5 | 0.95 |
| 7.01 | X.S | 44.4 | 0.91 | 95.2 | 1.82 | 63.5 | 1.27 | |||
| 80 | 3” | 88.9 | 5.49 | STD | 50.8 | 1.1 | 114.3 | 2.18 | 76.2 | 1.45 |
| 7.62 | X.S | 50.8 | 1.45 | 114.3 | 2.86 | 76.2 | 1.95 | |||
| 100 | 4” | 114.3 | 6.02 | STD | 63.5 | 2.1 | 152.4 | 4.2 | 101.6 | 2.8 |
| 8.56 | X.S | 63.5 | 2.9 | 152.4 | 5.7 | 101.6 | 3.9 | |||
| 125 | 5” | 141.3 | 6.65 | STD | 79.4 | 3.4 | 190.0 | 6.8 | 127.0 | 4.8 |
| 9.5 | X.S | 79.4 | 5.0 | 190.0 | 10.0 | 127.0 | 6.5 | |||
| 150 | 6” | 168.3 | 7.11 | STD | 95.2 | 5.1 | 229.0 | 10.1 | 152.4 | 6.8 |
| 10.97 | X.S | 95.2 | 7.7 | 229.0 | 15.3 | 152.4 | 10.2 | |||
| 200 | 8” | 219.1 | 8.18 | STD | 127.0 | 10.2 | 305.0 | 20.4 | 203.0 | 13.6 |
| 12.7 | X.S | 127.0 | 15.5 | 305.0 | 30.9 | 203.0 | 20.9 | |||
| 250 | 10” | 273.9 | 9.27 | STD | 159.0 | 18.1 | 381.0 | 36.1 | 254.0 | 24.1 |
| 12.7 | X.S | 159.0 | 24.4 | 381.0 | 48.8 | 254.0 | 32.5 | |||
| 300 | 12” | 323.9 | 9.52 | STD | 190.0 | 26.6 | 457.0 | 53.1 | 305.0 | 35.4 |
| 12.7 | X.S | 190.0 | 35.0 | 457.0 | 70.0 | 305.0 | 46.7 | |||
| 350 | 14” | 355.6 | 9.52 | STD | 222.0 | 34.1 | 533.0 | 68.1 | 356.0 | 45.4 |
| 12.7 | X.S | 222.0 | 45.0 | 533.0 | 90.0 | 356.0 | 60.0 | |||
| 400 | 16” | 406.4 | 9.52 | STD | 254.0 | 45.0 | 610.0 | 89.3 | 406.0 | 59.5 |
| 12.7 | X.S | 254.0 | 59.0 | 610.0 | 118.0 | 406.0 | 78.7 | |||
| 450 | 18” | 457.0 | 9.52 | STD | 286.0 | 56.5 | 686.0 | 113.0 | 457.0 | 75.6 |
| 12.7 | X.S | 286.0 | 75.0 | 686.0 | 150.0 | 457.0 | 100.0 | |||
| 500 | 20” | 508.0 | 9.52 | STD | 318.0 | 85.0 | 762.0 | 140.0 | 508.0 | 93.5 |
| 12.7 | X.S | 318.0 | 112.5 | 762.0 | 186.0 | 508.0 | 124.0 | |||
| 600 | 24” | 610.00 | 9.52 | STD | 381.0 | 101.5 | 914.0 | 203.0 | 610.0 | 135.0 |
| 12.7 | X.S | 381.0 | 134.5 | 914.0 | 269.0 | 610.0 | 179.0 | |||
Size of Stainless Steel 309H Forged Fittings
| NPS (inch) | Pipe Schedule. | OD (inch) | Wall Thick. (in) | Temperature | ||||
|---|---|---|---|---|---|---|---|---|
| Duplex Steel 100 Fitting | Duplex Steel 200 Fitting | Duplex Steel 300 Fitting | Duplex Steel 400 Fitting | Duplex Steel 500 Fitting | ||||
| Allowable Stress | ||||||||
| 16700 | 16700 | 16700 | 15500 | 14400 | ||||
| 1″ | 40 | 1.315 | 0.133 | 2205 | 2205 | 2205 | 2047 | 1902 |
| 80 | 1.315 | 0.179 | 3061 | 3061 | 3061 | 2841 | 2640 | |
| 160 | 1.315 | 0.250 | 4493 | 4493 | 4493 | 4170 | 3874 | |
| 1 1/2″ | 40 | 1.900 | 0.145 | 1629 | 1629 | 1629 | 1512 | 1404 |
| 80 | 1.900 | 0.200 | 2303 | 2303 | 2303 | 2138 | 1986 | |
| 160 | 1.900 | 0.281 | 3362 | 3362 | 3362 | 3120 | 2899 | |
| 2″ | 40 | 2.375 | 0.154 | 1371 | 1371 | 1371 | 1272 | 1182 |
| 80 | 2.375 | 0.218 | 1985 | 1985 | 1985 | 1843 | 1712 | |
| 160 | 2.375 | 0.344 | 3283 | 3283 | 3283 | 3047 | 2831 | |
| 3″ | 40 | 3.500 | 0.216 | 1301 | 1301 | 1301 | 1208 | 1122 |
| 80 | 3.500 | 0.300 | 1844 | 1844 | 1844 | 1712 | 1590 | |
| 160 | 3.500 | 0.438 | 2787 | 2787 | 2787 | 2587 | 2403 | |
| 4″ | 40 | 4.500 | 0.237 | 1102 | 1102 | 1102 | 1023 | 950 |
| 80 | 4.500 | 0.337 | 1596 | 1596 | 1596 | 1482 | 1377 | |
| 160 | 4.500 | 0.531 | 2611 | 2611 | 2611 | 2424 | 2552 | |
| 5″ | 40 | 5.563 | 0.258 | 965 | 965 | 965 | 896 | 832 |
| 80 | 5.563 | 0.375 | 1428 | 1428 | 1428 | 1325 | 1231 | |
| 160 | 5.563 | 0.625 | 2474 | 2474 | 2474 | 2296 | 2133 | |
| 6″ | 40 | 6.625 | 0.280 | 877 | 877 | 877 | 814 | 756 |
| 80 | 6.625 | 0.432 | 1379 | 1379 | 1379 | 1280 | 1189 | |
| 160 | 6.625 | 0.719 | 2382 | 2382 | 2382 | 2211 | 2054 | |
| 8″ | 40 | 8.625 | 0.322 | 771 | 771 | 771 | 716 | 665 |
| 80 | 8.625 | 0.500 | 1218 | 1218 | 1218 | 1131 | 1050 | |
| 160 | 8.625 | 0.906 | 2298 | 2298 | 2298 | 2133 | 1982 | |
| 10″ | 40 | 10.750 | 0.365 | 699 | 699 | 699 | 649 | 603 |
| 80 | 10.750 | 0.594 | 1159 | 1159 | 1159 | 1075 | 999 | |
| 160 | 10.750 | 1.125 | 2289 | 2289 | 2289 | 2124 | 1974 | |
ASTM A182 SS 309H End Cap Supplier in Chennai, Stainless Steel 309H Forged Pipe Fittings Weight Chart, Stainless Steel 309H Welding Boss Exporter in India, Stainless Steel 309H High Pressure Forged Fitting Manufacturer in Chennai, WERKSTOFF NR. 1.4833 Threaded Cross Price List in Chennai, Stainless Steel 309H Threaded Fittings Sizes in mm, Stainless Steel 309H Forged Fittings Distributor in Chennai, Stainless Steel 309H 180 Deg. Street Elbow in India, Stainless Steel 309H Forged Tee Distributor in India.
Application Industry of Stainless Steel 309H Forged Fittings
Stainless Steel 309H Forged Fittings are extensively utilized in environments that require exceptional heat resistance and structural integrity. You’ll often find them in furnaces, kilns, heat exchangers, boilers, and thermal processing units where high temperatures and corrosive conditions prevail. These fittings are also well-suited for petrochemical plants, refinery piping, and incineration systems, thanks to their ability to withstand sulfur-bearing gases and oxidation. Their forged design adds extra strength and durability, making them ideal for high-pressure and high-temperature fluid systems in critical industrial operations.
