Monel 400 Buttweld Fittings Manufacturer and Supplier in Chennai, India
Meet Fittings, Chennai, India, is a prominent manufacturer and supplier of *Monel 400 Buttweld Fittings*, providing high-quality piping components designed for high-performance and corrosion-resistant uses. Produced from Monel 400, a solid-solution alloy of copper and nickel, these fittings are renowned for their impressive resistance to seawater, acids, and alkalis. Meet Fittings manufactures a full line of buttweld fittings such as elbows, tees, reducers, crosses, and caps, in accordance with international standards. The fittings are very much adopted in marine engineering, chemical processing, oil & gas, and power generation industries.
Table of Contents
Monel 400 Buttweld Fittings Price List in Chennai, Monel 400 Buttweld Fittings Supplier in India, Monel 400 Buttweld Fittings Exporter in Chennai, Monel 400 Buttweld Fittings Supplier in Chennai, Monel 400 Buttweld Fittings Exporter in Chennai, Monel 400 Buttweld Fittings Size Chart, Monel 400 Buttweld Fittings Price in India, Monel 400 Buttweld Fittings in Chennai, Monel 400 Buttweld Fittings Supplier in Chennai, Monel 400 Buttweld Fittings Stockist in India, Monel 400 Buttweld Fittings Exporter in India.
Monel 400 Buttweld Fittings Specification
| Specification Properties: | Monel 400 Pipe Fittings |
| Cmmonly Used Fittings Types | End Cap, Stub End, Bend, Tee, Reducer, Cross, Adapter, 4 Wye, Elbow |
| Flange Connection Type | Clamp End / End Bell/ Threaded/ Weld |
| Thickness Tolerance: | Schedule 20S To Schedule XXS |
| Length: | Normal Pipe Size (1⁄₂”) to Normal Pipe Size (48”) |
| Manufacturer Of Fittings Dimension Types: | ANSI B16.28, MSS-SP-43 Type A, JIS B2312, ANSI B16.9, MSS-SP-43 Type B, JIS B2313 |
| Standard Chart : | JIS, NPT, ISO, DIN, EN |
| Pressure Rating Chart : | 150# To 2500#. |
| Materials List: | Bronze, Copper, Iron (Ductile/Cast), Carbon Steel, Inconel, Monel, Hastalloy, Alloy Steel, Brass, Titanium, Chrome-molybdenum, Cupro-Nickel 90/10 & 70/30, Nickel, Nickel Alloys, Tantalum, Stainless Steel. |
Monel 400 Buttweld Fittings have an approximate composition of 63% nickel and 30–33% copper with small amounts of iron and manganese. The formulation offers high corrosion resistance in severe environments, particularly in sea water and hydrofluoric acid. The alloy possesses good mechanical properties with a tensile strength of around 550 MPa, good toughness, and the capacity to perform at sub-zero and high temperatures with good results, thus making it a good choice for both cryogenic and high-temperature applications.
Monel 400 Buttweld Fittings Chemical Compostion
| The Chemical Composition of Monel 400 Pipe Fittings, % | |
|---|---|
| Iron | ≤2.50 |
| Sulfur | ≤0.024 |
| Silicon | ≤0.50 |
| Copper | 28.0-34.0 |
| Nickel | ≥63.0 |
| Carbon | ≤0.30 |
| Manganese | ≤2.0 |
Monel 400 Buttweld Fittings Mechanical Properties
| Tensile Strength, minimum | Yield Strength, minimum | Elongation, minimum | Hardness | ||
|---|---|---|---|---|---|
| Mpa | ksi | Mpa | ksi | % | HB |
| 550 | 80 | 240 | 35 | 40 | 110-150 |
Monel 400 Buttweld Fittings Exporter in India, Monel 400 Buttweld Fittings Price List in Chennai, Monel 400 Buttweld Fittings Supplier in India, Monel 400 Buttweld Fittings Exporter in Chennai, Monel 400 Buttweld Fittings Exporter in Chennai, Monel 400 Buttweld Fittings in India, Monel 400 Buttweld Fittings Size Chart, Monel 400 Buttweld Fittings Price in India, Monel 400 Buttweld Fittings Weight Chart, Monel 400 Buttweld Fittings Supplier in Chennai, Monel 400 Buttweld Fittings Stockist in India.
Largest Monel 400 Buttweld Fittings Supplier in Chennai, India
Meet Fittings is a leading supplier of Monel 400 Buttweld Fittings in Chennai, India. We offer an extensive range of Monel 400 Buttweld Fittings, renowned for their excellent corrosion resistance and high strength, which makes them perfect for demanding industrial applications like chemical processing, marine environments, and high-temperature systems. With a commitment to quality and reliable delivery, we ensure our clients receive top-tier products tailored to meet the specific needs of various industries.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
If You Are Looking To Buy High Quality
Monel 400 Buttweld Fittings Equivalent Grade
| STANDARD | UNS | WERKSTOFF NR. | AFNOR | EN | JIS | BS | GOST |
| Monel 400 Pipe Fittings | N04400 | 2.4360 | NU-30M | NiCu30Fe | NW 4400 | NA 13 | МНЖМц 28-2,5-1,5 |
Why Choose Monel 400 Buttweld Fittings from Meet Fittings?
Choose Monel 400 Buttweld Fittings from Meet Fittings for superior quality, exceptional corrosion resistance, and reliable performance in extreme conditions. We offer customized solutions backed by expert support and industry experience.
Monel 400 Buttweld Fittings Exporter in India, Monel 400 Buttweld Fittings Sizes in mm, Monel 400 Buttweld Fittings Manufacturer in Chennai, Monel 400 Buttweld Fittings Thickne Alloy Steel Weld Neck, Monel 400 Buttweld Fittings Supplier in Chennai, Monel 400 Buttweld Fittings Price List in Chennai, Monel 400 Buttweld Fittings Distributor in Chennai, Monel 400 Buttweld Forged Fittings Supplier in Chennai, Monel 400 Buttweld Forged Fittings Distributor in India
Customer Support
Largest Inventory
On Time Deliveries
ISO Certified
Monel 400 Buttweld Fittings offer exceptional advantages, including superior corrosion resistance in seawater, acidic, and alkaline environments. They are highly durable, with excellent resistance to pitting, crevice corrosion, and stress corrosion cracking, ensuring reliable performance in harsh conditions. These fittings retain their strength and mechanical properties at elevated temperatures, making them suitable for high-pressure and high-temperature applications. Monel 400 is also known for its excellent weldability and machinability, facilitating seamless installation. Their versatility and long-term reliability make them a preferred choice for marine, chemical, and industrial applications.

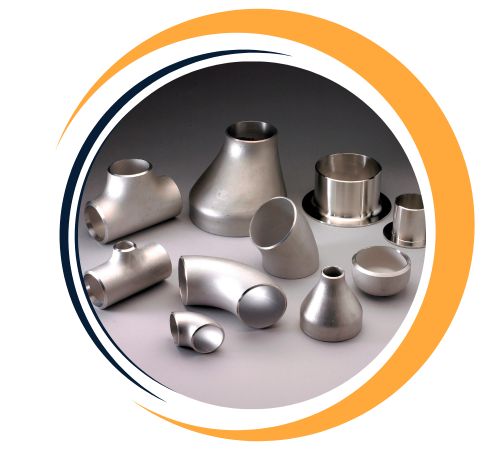

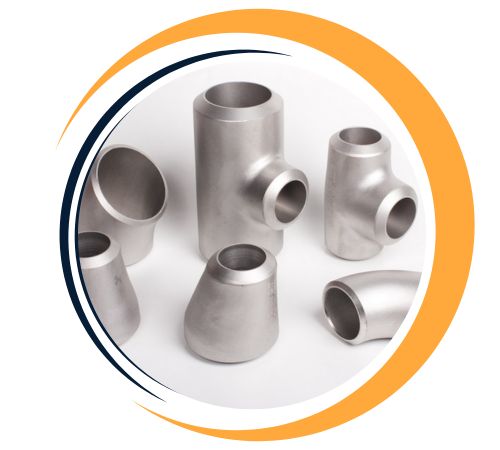

Types of Monel 400 Buttweld Fittings
Are Custom Sizes Available for Monel 400 Buttweld Fittings?
Yes, custom sizes for Monel 400 Buttweld Fittings are available at Meet Fittings. We offer tailored solutions to meet your specific requirements, ensuring optimal performance for your projects. For more information, please contact us at sales@meetfitings.co.in
Monel 400 Buttweld Fittings Supplier in Chennai, Monel 400 Buttweld Fittings Weight Chart, Monel 400 Buttweld Fittings Exporter in India, Monel 400 Buttwel Fittings Manufacturer in Chennai, Monel 400 Buttweld Fittings Price List in Chennai, Monel 400 Buttweld Fittings Sizes in mm, Monel 400 Buttweld Fittings Distributor in Chennai, Monel 400 Buttweld Fittings in India, Monel 400 Buttweld Fittings Distributor in India.
Application Industry of Monel 400 Buttweld Fittings
Monel 400 Buttweld Fittings find extensive applications in uses like desalination plants, heat exchangers, condensers, marine valves, chemical reactors, and offshore platforms. Monel 400 Buttweld Fittings are prized for their ability to resist stress-corrosion cracking, pitting, and erosion in harsh environments. They offer rigid, leakage-free connections in pipeline systems and sustain structural integrity under pressure and thermal cycling. Its reliability, longevity, and ease of manufacture make Monel 400 buttweld fittings a sought-after option for industries needing long-life and effective fluid management systems.
