Meet Fittings, with its base in Chennai, India, is a well-known producer and supplier of **Inconel 718 Buttweld Fittings**, providing high-grade products that are engineered to function in high-pressures and high-temperature applications. These buttweld fittings are made from high-strength nickel-chromium alloy Inconel 718 and are known for their superior anti-corrosion, oxidation, and high-temperature resistance properties. Meet Fittings offers a comprehensive assortment of Inconel 718 buttweld fittings such as elbows, tees, reducers, caps, and crosses, all produced in accordance with international standards. These fittings have widespread applications across aerospace, oil & gas, power generation, and chemical processing sectors where higher performance and extended lifespan are imperative.
Inconel 718 Buttweld Fittings Manufacturer and Supplier in Chennai, India
Table of Contents
Inconel 718 Pipe Elbow In India, Inconel 718 Pipe Fittings Chennai, Alloy 718 Buttweld Elbow Chennai, Inconel N07718 Seamless Fittings Exporter Chennai, Inconel 2.4668 Butt Weld Pipe Fittings in India, Inconel® Alloy 718 Two Joint Pipe Fittings Chennai, 718 Inconel Welded Fittings Manufacturers in India, Inconel Alloy 718 Butt weld Fittings In India, ASTM B366 Inconel 718 Butt Weld Fittings Supplier in Chennai, India.
Inconel 718 Buttweld Fittings Specification
| Specifications | ASTM B366/ ASME SB366 |
|---|---|
| Size | Seamless Butt Weld Fittings : 1/2″ – 10″ Welded Butt Weld Fittings : 1/2″ – 48″ |
| Dimensions | ASME/ANSI B16.9, ASME B16.28, MSS-SP-43, BS4504, BS4504, BS1560, BS10 |
| Thickness | SCH10, SCH20, SCH30, STD SCH40, SCH60, XS, SCH 80, SCH 100, SCH 120, SCH 140, SCH 160, XXS available with NACE MR 01-75 |
| Connection | Welding |
| Bending Radius | R=1D, 2D, 3D, 5D, 6D, 8D, 10D or Custom |
| Manufacturing process | Push, Press, Forge, Cast, etc. |
| Specialized manufacturer of | 90º Elbows, 45º Elbows, Tees, Cross, Reducer, Pipe Cap, Stub End, Pipe Bend |
Inconel 718 Buttweld Fittings consist of about 50–55% nickel, 17–21% chromium, 4.75–5.5% niobium, together with molybdenum, iron, titanium, and aluminum. The alloy is precipitation-hardenable, which bestows it with superior tensile strength (1240 MPa), fatigue resistance, and creep-rupture strength, coupled with superior weldability and formability. Such properties remain stable over an extensive temperature range—from cryogenic temperatures to 700°C.
Inconel 718 Buttweld Fittings Chemical Composition
| Grade | C | Mn | Si | S | Cu | Fe | Ni | Cr |
| 718 | 0.08 max | 0.35 max | 0.35 max | 0.015 max | 0.30 max | – | 50.00 – 55.00 | 17.00 – 21.00 |
Inconel 718 Buttweld Fittings Mechanical Properties
| Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| 8.2 g/cm3 | 1350 °C (2460 °F) | Psi – 1,35,000 , MPa – 930 | Psi – 75,000 , MPa – 482 | 45 % |
Equivalent Grades for 718 Inconel Pipe Fitting
| STANDARD | WERKSTOFF NR. | UNS |
|---|---|---|
| Inconel 718 | 2.4668 | N07718 |

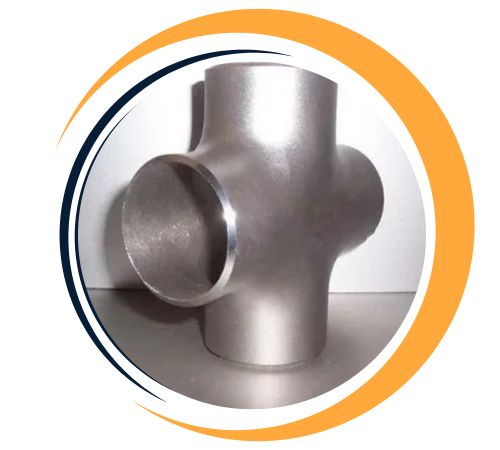

ASTM B366 Inconel 718 Butt Weld Cross in India, Inconel 2.4668 Buttweld Pipe Fittings Chennai, Alloy 718 Butt Weld Pipe Cap Chennai, Inconel 718 Eccentric Reducer Chennai, Inconel 718 Equal Tee India, 718 Inconel Reducer in Chennai, Nickel Alloy 718 SR Elbow Exporter in India,
Largest Inconel 718 Buttweld Fittings Supplier in Chennai, India
Meet Fittings is a leading supplier of Inconel 718 Buttweld Fittings in Chennai, India. We offer an extensive range of Monel 400 fittings, renowned for their excellent corrosion resistance and high strength, which makes them perfect for demanding industrial applications like chemical processing, marine environments, and high-temperature systems. With a commitment to quality and reliable delivery, we ensure our clients receive top-tier products tailored to meet the specific needs of various industries.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
If You Are Looking To Buy High Quality
Inconel 718 Buttweld Fittings Dimensions Standard
| Nominal PipeSize | Outside Diameter | 90° Elbows | 45° Elbows | 180° Returns | ||||
|---|---|---|---|---|---|---|---|---|
| (inches) | – | Long Radius | Short Radius | Long Radius | Long Radius | |||
| (mm) | (inches) | Center to Face (inches) | Center to Face (inches) | Center to Face (inches) | Radius (inches) | Center to Center (inches) | Back to face (inches) | |
| 1/2 | 21.3 | 0.840 | 1 1/2 | – | 5/8 | 2 | 1 7/8 | |
| 3/4 | 26.7 | 1.050 | 1 1/8 | 7/16 | 2 1/4 | 1 11/16 | ||
| 1 | 33.4 | 1.315 | 1 1/2 | 1 | 7/8 | 3 | 2 3/16 | |
| 1 1/4 | 42.2 | 1.660 | 1 7/8 | 1 1/4 | 1 | 3 3/4 | 2 3/4 | |
| 1 1/2 | 48.3 | 1.900 | 2 1/4 | 1 1/2 | 1 1/8 | 3 | 4 1/2 | 3 1/4 |
| 2 | 60.3 | 2.375 | 3 | 2 | 1 3/8 | 4 | 6 | 4 3/16 |
| 2 1/2 | 73.0 | 2.875 | 3 3/4 | 2 1/2 | 1 3/4 | 5 | 7 1/2 | 5 3/16 |
| 3 | 88.9 | 3.500 | 4 1/2 | 3 | 2 | 6 | 9 | 6 1/4 |
| 3 1/2 | 101.6 | 4.000 | 5 1/4 | 3 1/2 | 2 1/4 | 7 | 10 1/2 | 7 1/4 |
| 4 | 114.3 | 4.500 | 6 | 4 | 2 1/2 | 8 | 12 | 8 1/4 |
| 5 | 141.3 | 5.563 | 7 1/2 | 5 | 3 1/8 | 10 | 15 | 10 5/16 |
| 6 | 168.3 | 6.625 | 9 | 6 | 3 3/4 | 12 | 18 | 12 5/16 |
| 8 | 219.1 | 8.625 | 12 | 8 | 5 | 12 | 24 | 16 5/16 |
| 10 | 273.1 | 10.750 | 15 | 10 | 6 1/4 | 15 | 30 | 20 3/8 |
| 12 | 323.9 | 12.750 | 18 | 12 | 7 1/2 | 18 | 36 | 24 3/8 |
Inconel 718 Buttweld Fittings Pressure Rating Chart
| NPS (inch) | Pipe Sch. | Wall Thk. (in) | OD (inch) | Temperature | ||||
|---|---|---|---|---|---|---|---|---|
| 100 | 200 | 300 | 400 | 500 | ||||
| Allowable Stress (Pressure Rating) | ||||||||
| 16700 | 16700 | 16700 | 15500 | 14400 | ||||
| 1″ | 40 | 0.133 | 1.315 | 2205 | 2205 | 2205 | 2047 | 1902 |
| 80 | 0.179 | 1.315 | 3061 | 3061 | 3061 | 2841 | 2640 | |
| 160 | 0.250 | 1.315 | 4493 | 4493 | 4493 | 4170 | 3874 | |
| 1 1/2″ | 40 | 0.145 | 1.900 | 1629 | 1629 | 1629 | 1512 | 1404 |
| 80 | 0.200 | 1.900 | 2303 | 2303 | 2303 | 2138 | 1986 | |
| 160 | 0.281 | 1.900 | 3362 | 3362 | 3362 | 3120 | 2899 | |
| 2″ | 40 | 0.154 | 2.375 | 1371 | 1371 | 1371 | 1272 | 1182 |
| 80 | 0.218 | 2.375 | 1985 | 1985 | 1985 | 1843 | 1712 | |
| 160 | 0.344 | 2.375 | 3283 | 3283 | 3283 | 3047 | 2831 | |
| 3″ | 40 | 0.216 | 3.500 | 1301 | 1301 | 1301 | 1208 | 1122 |
| 80 | 0.300 | 3.500 | 1844 | 1844 | 1844 | 1712 | 1590 | |
| 160 | 0.438 | 3.500 | 2787 | 2787 | 2787 | 2587 | 2403 | |
| 4″ | 40 | 0.237 | 4.500 | 1102 | 1102 | 1102 | 1023 | 950 |
| 80 | 0.337 | 4.500 | 1596 | 1596 | 1596 | 1482 | 1377 | |
| 160 | 0.531 | 4.500 | 2611 | 2611 | 2611 | 2424 | 2552 | |
| 5″ | 40 | 0.258 | 5.563 | 965 | 965 | 965 | 896 | 832 |
| 80 | 0.375 | 5.563 | 1428 | 1428 | 1428 | 1325 | 1231 | |
| 160 | 0.625 | 5.563 | 2474 | 2474 | 2474 | 2296 | 2133 | |
| 6″ | 40 | 0.280 | 6.625 | 877 | 877 | 877 | 814 | 756 |
| 80 | 0.432 | 6.625 | 1379 | 1379 | 1379 | 1280 | 1189 | |
| 160 | 0.719 | 6.625 | 2382 | 2382 | 2382 | 2211 | 2054 | |
| 8″ | 40 | 0.322 | 8.625 | 771 | 771 | 771 | 716 | 665 |
| 80 | 0.500 | 8.625 | 1218 | 1218 | 1218 | 1131 | 1050 | |
| 160 | 0.906 | 8.625 | 2298 | 2298 | 2298 | 2133 | 1982 | |
| 10″ | 40 | 0.365 | 10.750 | 699 | 699 | 699 | 649 | 603 |
| 80 | 0.594 | 10.750 | 1159 | 1159 | 1159 | 1075 | 999 | |
| 160 | 1.125 | 10.750 | 2289 | 2289 | 2289 | 2124 | 1974 | |
Why Choose Inconel 718 Buttweld Fittings from Meet Fittings?
Inconel 718 Buttweld Fittings from Meet Fittings offer exceptional corrosion resistance, especially in seawater and harsh environments. They are known for their high strength, durability, and resistance to pitting and crevice corrosion, ensuring long-lasting performance. We provide precise manufacturing, quality control, and reliable service for diverse industrial applications.
UNS N07718 Stub End Uk, ANSI B16.9 Inconel Alloy 718 Pipe Fittings Chennai, Inconel 718 Pipe Bend Stockist in Chennai, Inconel 718 Pipe Nipple Manufacturer & Exporter in Chennai, Inconel 2.4668 Butt Weld Pipe Fittings in India, Inconel® Alloy 718 Two Joint Pipe Fittings Chennai, 718 Inconel Welded Fittings Manufacturers in India, Inconel Alloy 718 Butt weld Fittings In India, ASTM B366 Inconel 718 Butt Weld Fittings Supplier in Chennai, India.
Customer Support
Largest Inventory
On Time Deliveries
ISO Certified
Inconel 718 Buttweld Fittings offer numerous advantages, including exceptional resistance to oxidation, corrosion, and high temperatures, making them ideal for harsh environments. They maintain superior mechanical strength and stability up to 700°C, ensuring long-lasting performance under stress. These fittings exhibit excellent weldability and machinability, even in complex applications. Their high fatigue resistance and creep-rupture strength make them suitable for aerospace, chemical, and marine industries. Additionally, their durability reduces maintenance needs, ensuring cost-effective solutions for demanding industrial applications while meeting strict quality and safety standards.
Types of Inconel 718 Buttweld Fittings
Are Custom Sizes Available for Inconel 718 Buttweld Fittings?
Yes, custom sizes for Inconel 718 Buttweld Fittings are available at Meet Fittings. We offer tailored solutions to meet your specific requirements, ensuring optimal performance for your projects. For more information, please contact us at sales@meetfitings.co.in.
ASTM B366 Inconel 718 Butt Weld Cross in India, Inconel 2.4668 Buttweld Pipe Fittings Chennai, Alloy 718 Butt Weld Pipe Cap Chennai, Inconel 718 Eccentric Reducer Chennai, Inconel 718 Equal Tee India, 718 Inconel Reducer in Chennai, Nickel Alloy 718 SR Elbow Exporter in India,
Application Industry of Inconel 718 Buttweld Fittings
Inconel 718 Buttweld Fittings find extensive application in jet engines, gas turbines, nuclear reactors, downhole tools, and heat exchanger systems. Due to their excellent resistance to pitting, crevice corrosion, and chloride-induced stress corrosion cracking, they are suitable for corrosive atmospheres. These fittings provide durable, leak-tight connections for high-pressure applications with less maintenance. With their higher mechanical strength, oxidation resistance, and heat endurance, Inconel 718 buttweld fittings are the perfect choice for demanding applications in highly corrosive and high-temperature industrial environments.
